Plastimo Ez Air Vent

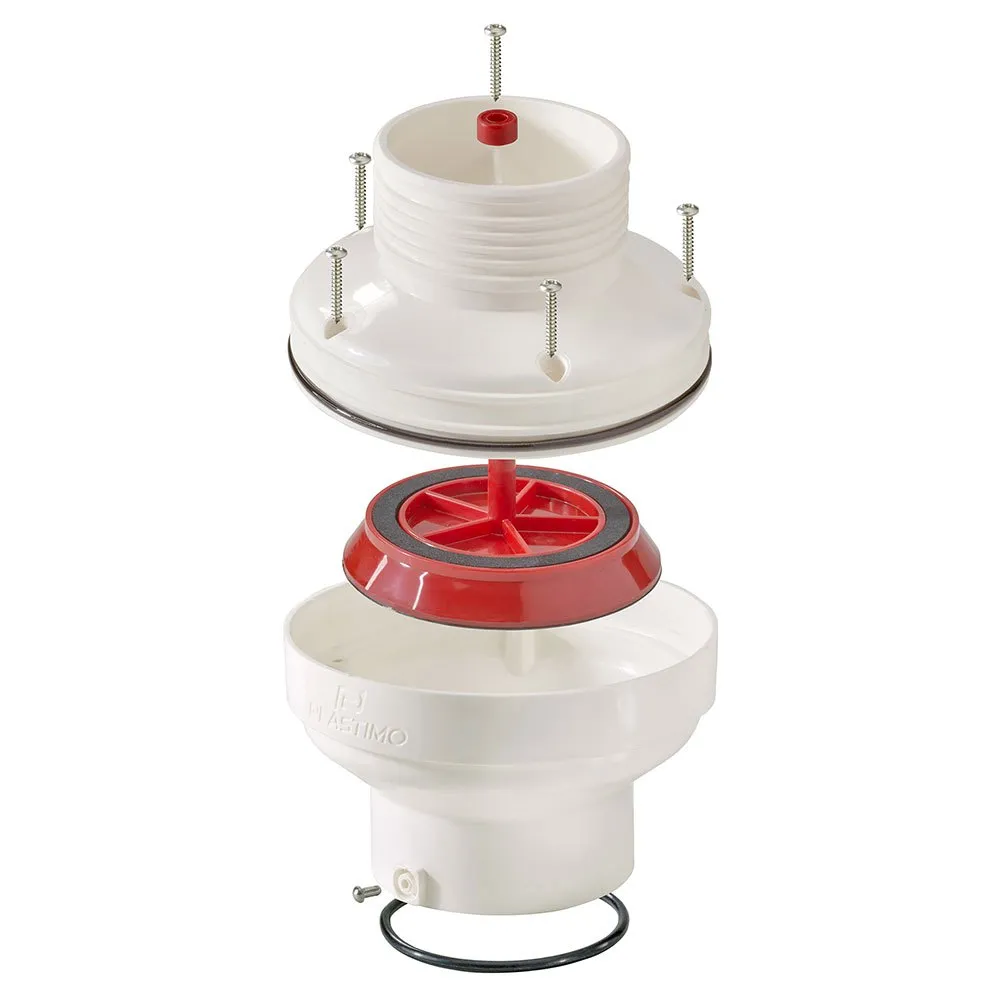

PLASTIMO Ez Air Vent

Revolutionize Your Boat´s Ventilation with the Compact and Certified PLASTIMO Ez Air Vent

Ensure optimal safety, performance, and compliance on your vessel with the PLASTIMO Ez Air Vent, an innovative and highly efficient ventilation system designed for the demanding marine environment. Engineered for applications where space and weight are critical, this system provides a superior solution for ventilating enclosed and sensitive areas. It is the ideal choice for boat builders and owners seeking to upgrade their ventilation with a modern, reliable, and space-saving unit.

The PLASTIMO Ez Air Vent is a ventilation system compact for engine compartments and fuel tank compartments with limited space and weight requirements.

Equipped with a watertight non-return valve that does not allow the water to flow into the interior, allowing the external air intake to be mounted very close to the water level, and eliminating the gooseneck system.

The EZ AIR system increases the supply of fresh air and decreases the pressure losses of the extractor by directly joining the air outlet pipe to the non-return valve located near the external grill (vent).

Limited impact on ISO stability criteria (lateralization on the transom).

Meets the requirements of ISO 12216.2018.

Key Benefits & Advanced Features
* Unmatched Water Protection: At the core of the Ez Air Vent is an advanced, fully watertight non-return valve. This crucial feature provides a reliable barrier against water ingress, even in rough seas or with heeling. This allows you to mount the external air intake much closer to the waterline than traditional vents, maximizing placement flexibility without compromising safety.
* Simplified, Space-Saving Installation: Say goodbye to bulky and complex gooseneck systems. The ingenious design of the PLASTIMO Ez Air Vent eliminates the need for these traditional setups, freeing up valuable space within your boat´s hull and simplifying the entire installation process. This makes it perfect for retrofitting or for new builds where every inch counts.
* Superior Airflow and Efficiency: The system is engineered to maximize the efficiency of your ventilation. By enabling a direct connection from the air outlet pipe to the valve assembly near the external vent, the EZ AIR significantly increases the volume of fresh air supplied to critical compartments. This direct path also dramatically decreases pressure losses for the extractor, ensuring your engine and fuel systems operate in an optimal, well-ventilated environment.
* Maintains Vessel Stability: Designed with performance in mind, the compact and lightweight nature of the Ez Air Vent has a minimal impact on your boat’s stability calculations. Its design ensures a limited effect on ISO stability criteria, providing peace of mind that your vessel´s handling and safety characteristics remain uncompromised.
* Certified and Compliant: Gain full confidence in your vessel´s safety and construction standards. The PLASTIMO Ez Air Vent is rigorously tested and fully meets the stringent requirements of the ISO 12216.2018 standard, making it a trusted component for commercial and recreational boats alike.

Technical Specifications

Attribute: Vents
* Application: Compact ventilation system for engine compartments and fuel tank compartments.
* Primary Feature: Integrated watertight non-return valve to prevent water ingress.
* Design Benefit: Eliminates the requirement for a traditional gooseneck system.
* Mounting Advantage: Allows for external air intake installation very close to the water level.
* Performance: Increases fresh air supply and reduces pressure losses for the extractor fan.
* Certification: Fully meets the requirements of ISO 12216.2018
