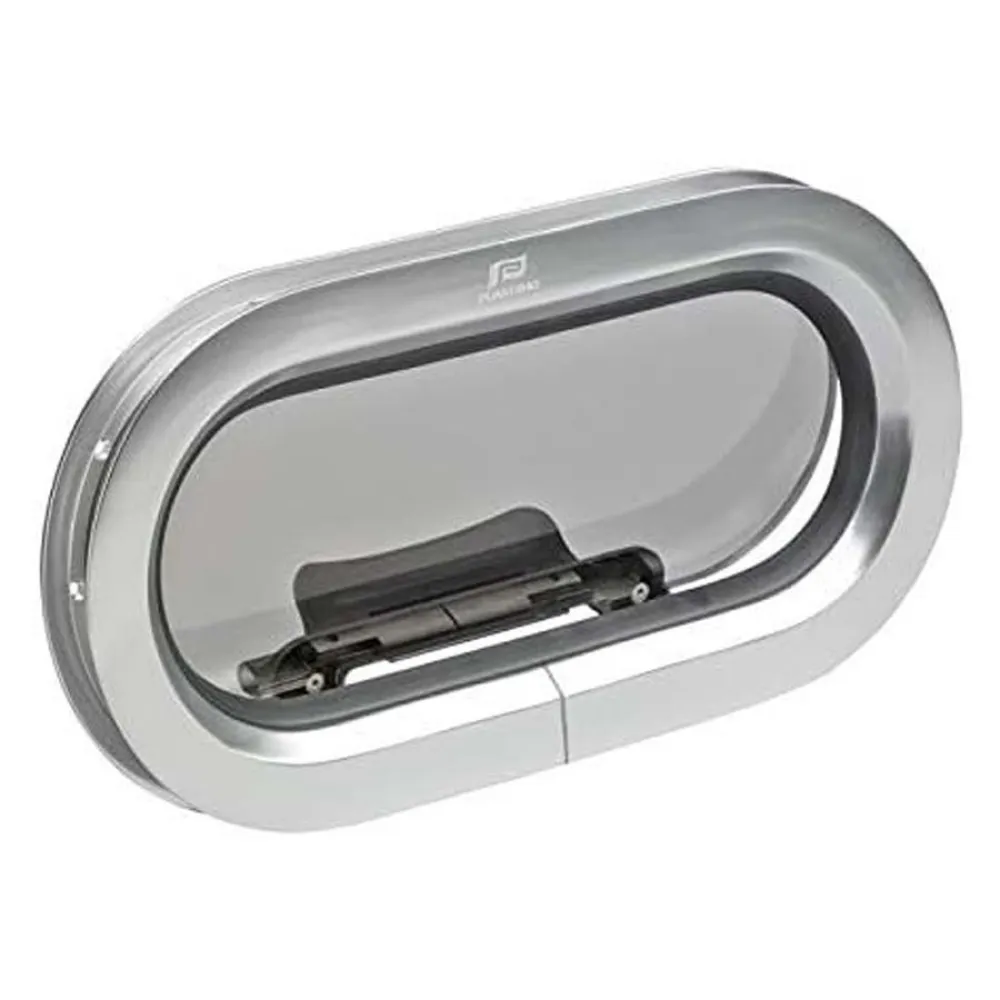

Plastimo T32 Rectangular Opening Portlight

Upgrade your vessel with the PLASTIMO T32 Rectangular Opening Portlight, a premium addition to your deck equipment that flawlessly combines sleek aesthetics with robust functionality. Engineered for sailors and boaters who refuse to compromise on quality, this portlight provides an excellent source of natural light and ventilation to your cabin while ensuring a fortress-like seal against the elements. Its modern, satin-finish design complements any boat, enhancing both its appearance and comfort.

Experience superior protection with an innovative double contact seal system. This advanced design is the cornerstone of its exceptional watertightness, making it one of the most reliable opening hatches on the market. When the portlight is secured, the first lip effectively deflects and absorbs initial water contact, while the second contact point creates an ultimate, impenetrable barrier. This ensures a dry and comfortable interior, giving you peace of mind even in challenging sea conditions. The intelligently designed 46° angled frame further enhances its performance by promoting efficient water draining, preventing pooling and allowing for versatile installation on tilted surfaces of your boat´s deck or cabin.

Key Features & Technical Specifications

The PLASTIMO T32 is engineered for durability, versatility, and ease of use.

Opening Portlights:
It features a one-piece satin-finish aluminium frame and durable grey acrylic glass.
- Double contact seal system for watertightness: Once the portlight is closed, the first lip absorbs the water while the second contact point ensures ultimate watertightness.
- Angled Frame: The 46° angled frame ensures efficient water draining and allows mounting on a tilted roof or deck.

Features:
- The frame is constructed from a robust, satin-finish aluminium, while the glass is a 10 mm or 15 mm grey acrylic.
- Perfect watertightness is achieved with a one-piece thick frame section, eliminating common leak points.
- A single universal model accepts an extensive range of bulkhead or hull thicknesses, from 5 to 33 mm (3/16´´ to 1 1/4´´), simplifying installation.
- Optimum visibility is maintained with the handle cleverly positioned on the side.

Specifications:
- External Dimensions: 397x197 mm (15.6x7.8 in)
- Internal Dimensions: 373x173 mm
