Quick Prince DP3 windlass 8 mm 12V 700W

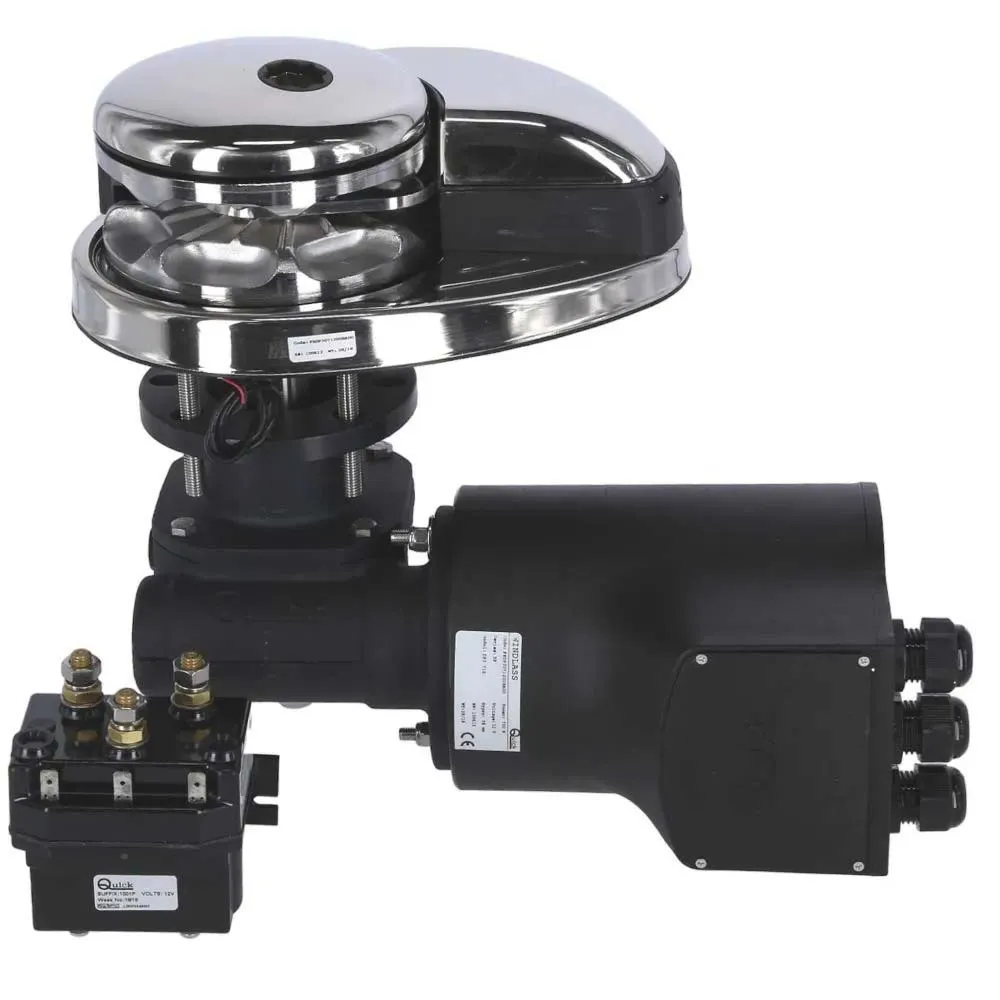

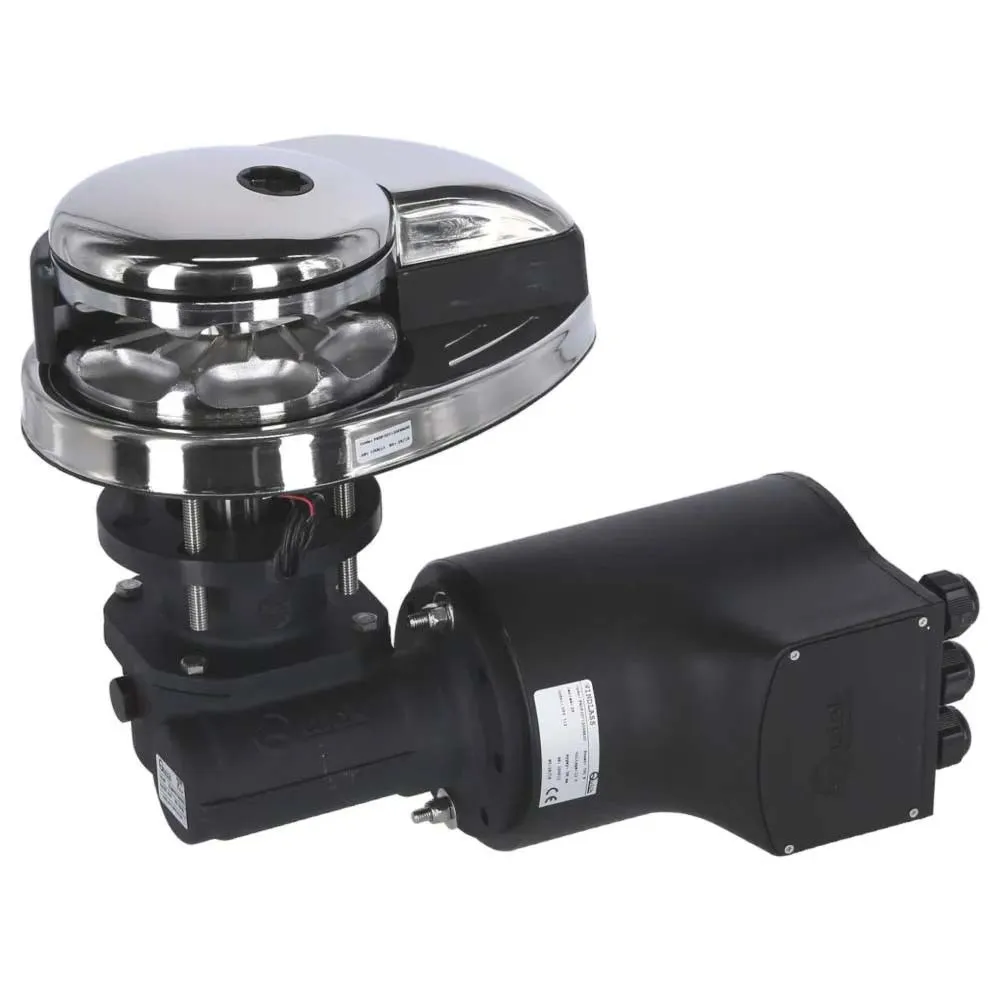

QUICK Prince DP3 Vertical Windlass 8 mm 12V 700W

Category: Boats and equipment
Subcategory: Anchoring and mooring
---

Elevate your anchoring experience with the QUICK Prince DP3 Vertical Windlass, a masterpiece of Italian engineering designed for reliability, performance, and style. Perfectly suited for boats ranging from 7 to 10 meters (23-33 ft), this powerful 700W, 12V unit transforms the often-strenuous task of anchoring into a smooth, effortless operation. Take command of your boat´s anchoring and mooring system with a windlass that combines robust power with sophisticated features, ensuring safety and peace of mind on every voyage.

The Prince DP3 is engineered for those who demand excellence. Its vertical motor and gearbox are positioned below deck, resulting in a minimal footprint on your bow and a clean, uncluttered look. This smart design not only enhances the aesthetics of your vessel but also maximizes valuable deck space.

Key Benefits:

* Powerful and Efficient Performance: The 700-watt motor delivers exceptional pulling power and speed, allowing you to raise and lower your anchor with impressive efficiency. The system is designed for a smooth and quiet operation, reducing noise and vibration on deck.
* Enhanced Durability and Weather Protection: Built to withstand the harshest marine environments, the motor is protected with an IP67 waterproof rating, offering superior resistance against water intrusion and ensuring long-lasting, reliable performance season after season.
* Total Control and Safety: The Prince DP3 comes equipped with a manual free-fall system, enabling rapid anchor deployment when every second counts. For complete peace of mind, a manual override system is included, allowing you to recover the anchor even in the event of a power failure.
* Versatile Rope and Chain Handling: The specialised gypsy is expertly designed to manage both 8 mm calibrated chain and 14 mm three-strand rope, providing seamless transitions and flexible anchoring options depending on the conditions.

Main Features:

* Vertical orientation windlass for space-saving on-deck installation
* Integrated chain and rope gypsy
* Manual chain free-fall system for rapid deployment
* Pre-installed sensor and magnet for chain counter compatibility
* Emergency manual lift system capability
* High-performance, IP67-rated watertight electric motor
* Durable and reliable gearbox assembly

As a premier choice in the world of anchor Windlasses, the QUICK Prince DP3 is more than just equipment; it´s an upgrade to your entire boating lifestyle. Enjoy more time relaxing at your favourite anchorage and less time wrestling with your ground tackle.

Technical Specifications:

* Model: Prince DP3
* Motor Power: 700 W
* Motor Voltage: 12 V
* Maximum Pull: 900 kg / 1984 lb
* Maximum Working Load: 300 kg / 661 lb
* Working Load: 100 kg / 220 lb
* Current Absorption @ Working Load (12V): 95 A
* Maximum Chain Speed: 28.9 m/min
* Compatible Chain Size: 8 mm (ISO 4565 / DIN 766)
* Compatible Rope Size: 14 mm (9/16") three-strand
* Recommended Deck Thickness: 20 mm - 40 mm (13/16" - 1" 9/16)
* Weight (without drum): 17.4 kg / 38.4 lb
* Protection Class: IP67
