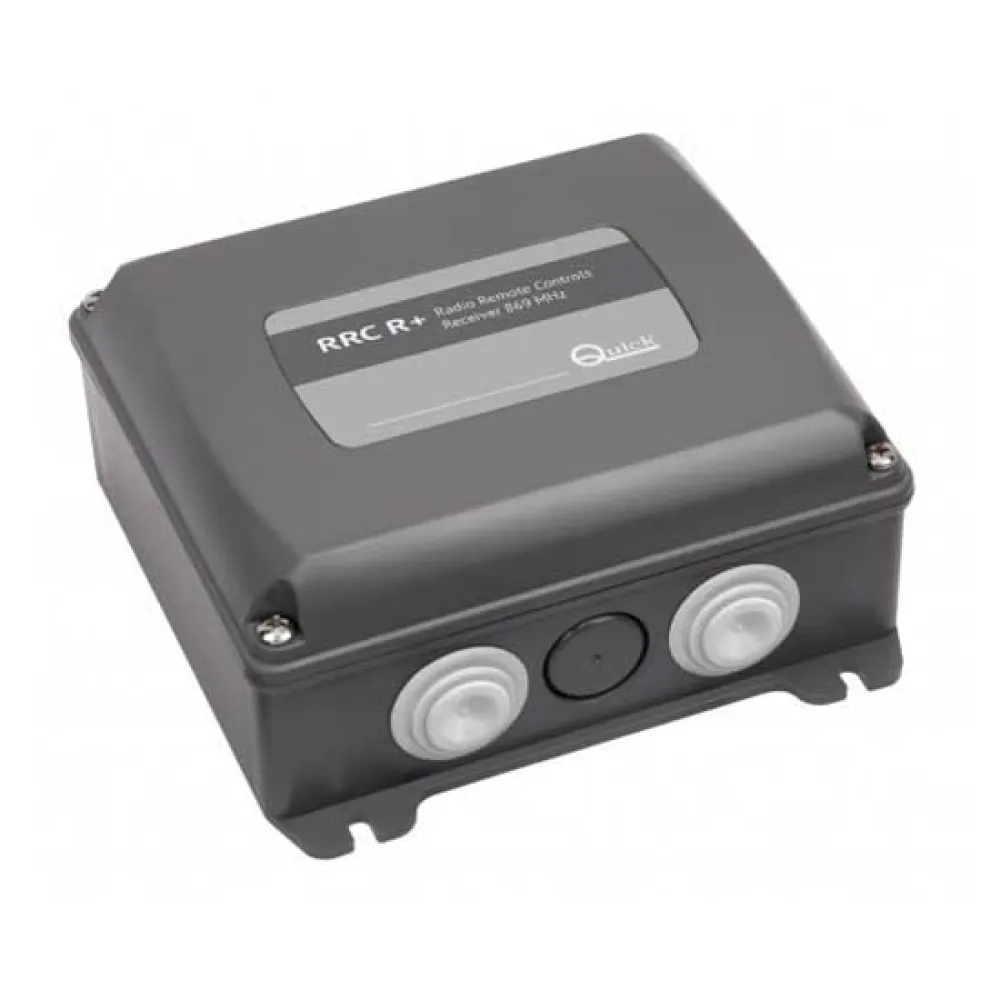

QUICK R02 869.8MHz Radio Receiver | Wireless Windlass Control System

Elevate your anchoring and mooring experience with the QUICK R02 Radio Receiver, the central nervous system for seamless wireless windlass control. Designed for the discerning mariner who values safety, convenience, and reliability, this advanced receiver unit transforms the often-strenuous task of anchoring into a simple, one-person operation. Say goodbye to being tethered to the helm and shouting instructions to the bow. With the R02 system, you gain the freedom to manage your anchor from any vantage point on your vessel, ensuring perfect placement and enhanced safety every time you drop or weigh anchor.

Unleash Unparalleled Anchoring Freedom and Safety

The primary benefit of integrating the QUICK R02 receiver is the complete mobility it affords you. By pairing it with a compatible Quick handheld transmitter (such as the HRC series), you can operate your windlass from the bow, where you have a clear and unobstructed view of the anchor, chain, and surrounding water. This direct line of sight is critical for preventing damage to the vessel, avoiding underwater obstacles, and confirming that the anchor is setting correctly. This enhanced situational awareness significantly improves safety for both the crew and the boat, especially during single-handed or short-handed sailing. The convenience of wireless control simplifies docking and mooring procedures, allowing for precise adjustments without having to rush back and forth to a fixed control panel.

Main Features

* Dedicated 2-Channel System: Purpose-built to provide distinct "Up" and "Down" commands for intuitive and precise windlass operation.
* Secure Radio Frequency: Operates on the stable 869.8 MHz frequency, ensuring a clear and interference-resistant signal for dependable performance.
* Extended Range Reception: Features an external antenna to maximize signal reception range and integrity, even on larger vessels or in crowded anchorages.
* Seamless Integration: Engineered to work flawlessly with Quick´s range of wireless handheld transmitters and connect directly to the windlass contactor/solenoid unit.
* Robust Marine-Grade Design: Built to withstand the harsh marine environment, offering reliable functionality season after season.
* Visual Status Indicator: Equipped with an integrated LED that provides clear visual feedback on the unit´s operational status.

Controls

The QUICK R02 is a radio receiver unit designed to interpret signals from a compatible wireless transmitter (sold separately). It provides 2-channel On/Off control outputs, perfectly suited for managing the ´Up´ and ´Down´ functions of a marine anchor windlass via a solenoid or contactor unit. This system transforms your anchoring process into a seamless, remote-controlled operation, placing full command of your ground tackle directly in the palm of your hand.

Technical Specifications

* Model: R02
* Supply Voltage: 12 / 24 Vdc (automatic detection)
* Operating Frequency: 869.8 MHz
* Number of Channels: 2
* Maximum Output Current: 4 A
* Operating Temperature: -15°C to +70°C (+5°F to +158°F)
* Protection Degree: IP66 (fully protected against dust ingress and powerful water jets)
* Current Draw in Stand-by: <10 mA
