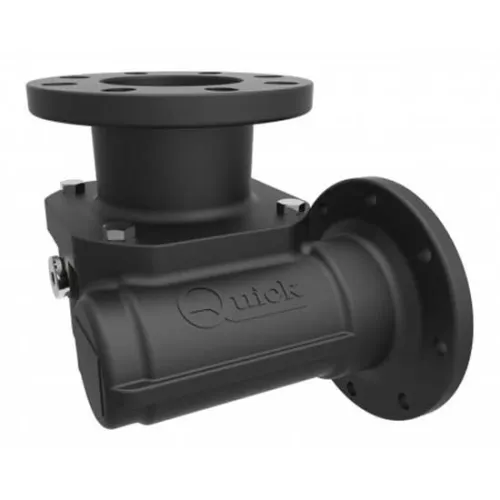

Quick TG50 windlass gearbox 1000W

Quick TG50 Windlass Gearbox 1000W

Category: Boats and equipment
Subcategory: Anchoring and mooring

Elevate your anchoring experience with the Quick TG50 Windlass Gearbox, a 1000W powerhouse designed for reliability and performance in the demanding marine environment. Engineered by Quick, a leader in nautical equipment, this motor-gearbox unit is the heart of a robust and efficient anchoring system, providing boat owners with the confidence and control needed for secure mooring. Whether you are upgrading an existing windlass or building a new system, the TG50 delivers the power and durability required for vessels, ensuring smooth and effortless anchor handling every time you drop or weigh anchor.

The TG50 is built to withstand the harsh realities of saltwater and sun. Its construction from marine-grade materials ensures exceptional longevity and resistance to corrosion, a critical factor for any equipment installed on deck. This focus on durability means less time on maintenance and more time enjoying the water, knowing your anchoring gear is ready for action.

Key Benefits:

* Powerful and Efficient Performance: The robust 1000W motor provides substantial pulling power, making light work of retrieving your anchor and chain. Its efficient design ensures optimal performance without excessive battery drain, giving you reliable operation when you need it most.
* Exceptional Durability: Constructed with a planetary gearbox and housed in a rugged, anodized aluminum casing, the TG50 is engineered to resist the corrosive effects of the marine environment, guaranteeing a long and dependable service life.
* Smooth and Secure Operation: The advanced planetary gear system delivers high torque and smooth power transmission, resulting in quieter operation and reduced stress on your anchoring components. This ensures a secure and controlled anchor deployment and retrieval process.
* Enhanced Protection: Featuring an IP66-rated motor, this gearbox unit is fully protected against powerful water jets from any direction, offering superior defense against sea spray and washdowns, which is essential for deck-mounted equipment.
* Integrated Chain Counter Sensor: The TG50 comes standard with a pre-installed sensor and magnet for a chain counter, allowing for seamless integration with your helm display for precise monitoring of the deployed anchor rode.

Main Features:

* Planetary gearbox for high-efficiency torque
* Anodized aluminum gearbox housing for maximum corrosion resistance
* Watertight motor rated to IP66 standards
* Integrated sensor for chain counter functionality
* Designed for vertical windlass installations

---

Technical Specifications:

* Model: TG50
* Motor Power: 1000 W
* Voltage: 12V
* Gearbox Type: Planetary
* Maximum Pull: 900 kg (1984 lb)
* Maximum Working Load: 300 kg (661 lb)
* Current Draw @ Working Load: 120 A
* Haulage Speed @ Working Load: 25 m/min (82 ft/min)
* Motor Watertightness: IP66
* Weight: 10.5 kg (23.1 lb)

---

Boxes

What´s in the Box:

* 1 x Quick TG50 Motor Gearbox Unit (1000W, 12V)
* 1 x Base Gasket for watertight installation
* Mounting Studs, Nuts, and Washers
* User and Installation Manual
