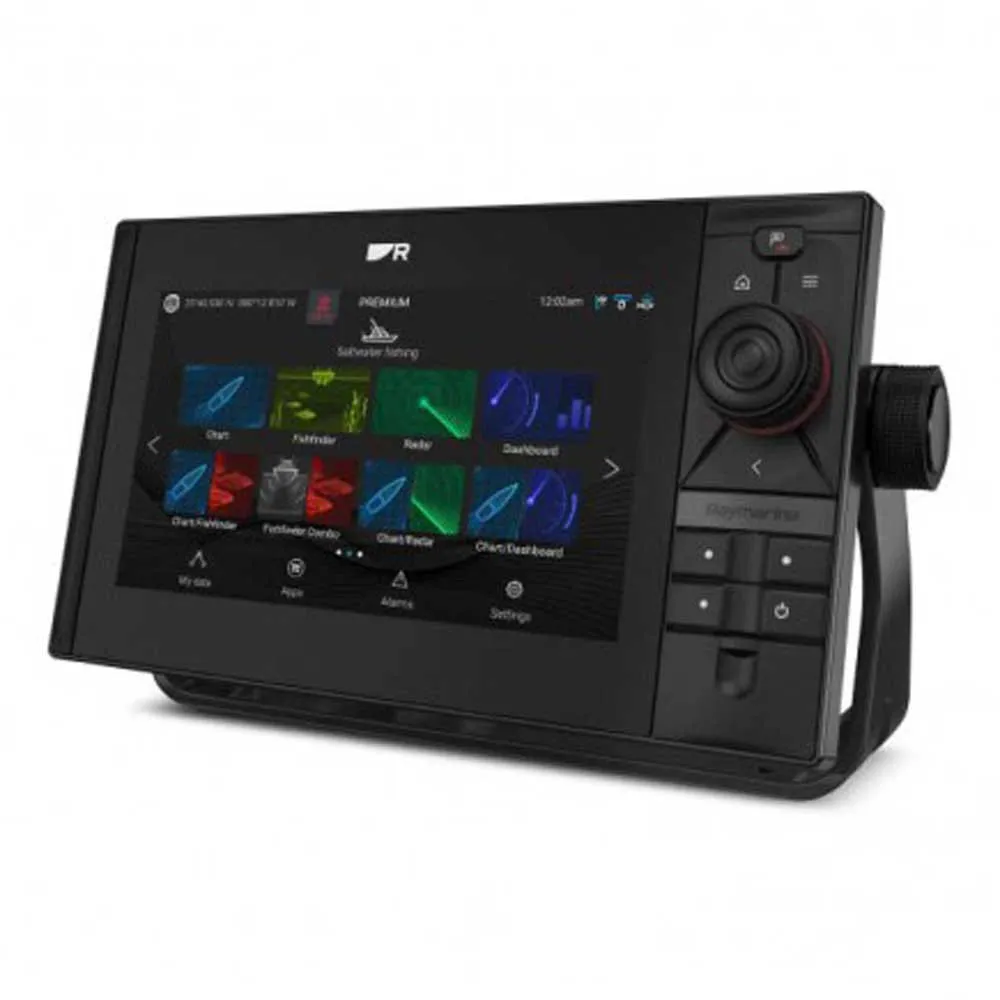

Raymarine Axiom2 Pro 9S Fishing Plotter

A Trusted Crew Member:
- Axiom 2 Pro S Combines Chartplotter, Sonar, Radar, Autopilot, And Video Into A Powerful All-In-One Navigation System. Plan Your Next Cruise And Get Underway Confidently With Axiom 2 Pro’S Hybridtouch™ — A Simple Touchscreen And Keypad Experience Made Possible By The Intuitive Lighthouse Operating System. Use Axiom 2 Pro As A Single Gps Chartplotter Or Create A Network Of Multiple Axiom Displays With A Simple Raynet Cable Connection. More Than Just A Chartplotter, Axiom Pro 2 S Features An Integrated High Chirp Sonar, The Ideal Sonar For Reliable Depth Soundings And Underwater Discovery.

Power That Pushes The Limits:
- Get Underway Quickly With Axiom 2 Pro’S Powerful 6-Core Processor. Chartplotter, Radar, Autopilot, And Video Are Integrated Seamlessly And Faster With The Super Intuitive Lighthouse Operating System.

Ready For All Conditions:
- Axiom 2 Pro´s Hydrotough™ Nano-Coating Technology Repels Water For Reliable Touchscreen Control, Enhanced Colors, And Excellent Sunlight Visibility.
- Smart Backlighting And An Ambient Light Sensor Automatically Adjust Display Brightness For Day And Evening Lighting Conditions.

Confident Control:
- Plan And Plot Your Course With Hybridtouch™ Control And Take Command With Reliable Keypad Control When Seas Are Rough.
- Customize Your Axiom 2 Pro With Interchangeable Keypads. Choose A Dedicated Evolution Autopilot Keypad Or User-Programable Soft Keys.

Advanced Sailing Tools:
- Axiom 2 Pro Offers A Suite Of Powerful Features To Help You Optimize Your Performance Under Sail.

Create A Powerful Navigation System:
- Two Raynet Ethernet Ports And Nmea2000 Give You The Flexibility To Create An Axiom 2 Pro System With Multiple Axiom Displays, Fish Finder Modules, Marine Radar, Autopilot, Thermal, And Video Cameras.


Features:

Discover More:
- Created From Official Hydrographic Chart Sources, You Can Trust Lighthouse Charts For Maximum Readability, Intuitive Navigation, And Superior Quality.

Upgrade Your Awareness:
- Add A Quantum 2 Radome Or Cyclone Open Array Radar And Navigate Safer With Doppler Target Tracking And Radar/Chart Overlay.

Turn Night Into Day:
- Flir Thermal Imaging And Axiom 2 Pro Turn Night Into Day, Keeping You Safe And Secure So You Can Boat With Confidence.

Make Smarter Decisions:
- Add A Cam300 And An Ar200 Sensor For Clearcruise Augmented Reality. See Ais, Waypoints, And Chart Objects Overlaid On High-Definition Video.

Advanced Engine Integration:
- Connect With Nmea2000-Compatible Engines Or Experience Advanced Integration With Mercury Smartcraft And Yamaha Command Link Engines.

Stream, Watch, And Listen:
- Stream Netflix And Spotify, Connect And Control Fusion, Jl Audio, And Rockford Fosgate Marine Audio Systems, Or View Axiom 2 Pro On The Big Screen With Hdmi Output.

Stay Connected:
- Add The Yachtsense Link Router And Keep Your System Connected Onboard And Off With The Raymarine Mobile App.

Axiom On Your Smartphone:
- Built-In Wi-Fi Lets You View And Control Your Axiom 2 Pro On Your Phone Or Tablet With The Raymarine Mobile App.

Do More With Lighthouse Apps:
- Expand The Capabilities Of Our Axiom 2 Pro With Third-Party Apps From Our Marine Technology Partners.


Specifications:

Physical:
Dimensions (Trunnion Mounted):-
- Axiom 2 Pro 9: Height: 186.2 Mm (7.33 In), Width: 329.5 Mm (12.97 In), Depth (Including Cables): 234.9 Mm (9.25 In)

Connections:
- Ethernet Connection: 2 Raynet (10/100/1,000 Mbits/S) Ports
- Nmea 2000 Connection: Devicenet Connector
- Wi-Fi: Multiband - 2.4ghz, And 5ghz 802.11b/G/N
- Bluetooth: V4.0
- Accessory Connection: Usb Micro B
- Internal Storage: 64gb Solid State
- External Storage: 2 Front Mounted Microsdxc Card Slots
- Digital Video And Audio: Hdmi Out Micro Connector Type D
- Analog Video Connections: Bnc Analog Video Input (On Power Cable)
- Analog Audio Connections: Rca Connectors Via Power Cable
- External Gps Anternna: Tnc Connector

Power:
- Power Consumption @ 12 V Dc: Axiom Pro 9: 33.12 W
- Power Consumption @ 24 V Dc: Axiom Pro 9: 30.96 W
- Operating Voltage Range: 8 V Dc To 32 V Dc
- Nominal Supply Voltage: 12 V Dc / 24 V Dc
- Off Current @ 12 V Dc: 11 Ma (0.13 W)
- Off Current @ 24 V Dc: 18 Ma (0.43 W)
- Current: 5 A
- Fuse Rating: 15 A

Gps (Gnss):
- Position Accuracy: Without Sbas: ≤ 15 Metres 95% Of The Time, With Sbas: ≤ 5 Metres 95% Of The Time
- Geodetic Datum: Wgs-84 (Alternatives Can Be Selected On The Mfd)
- Antenna: Internal - Ceramic Chip Mounted Near Top Of Unit
- Gnss Compatibility: Gps, Galileo, Glonass, Beidou
- Almanac Update: Automatic
- Signal Acquisition: Automatic
- Receiver Ic Sensitivity: 165 Dbm (Tracking), 160 Dbm (Acquisition), 148 Dbm (Cold Start)
- Operating Frequency: 1574 Mhz To 1605 Mhz

Environmental:
- Operating Temperature: 25°C To +55°C (-13°F To 131°F)
- Storage Temperature: 30°C To +70°C (-22°F To 158°F)
- Relative Humidity: Up To 93% @ 40°C (104°F)
- Waterproof Rating: Ipx6, Ipx7

Lcd:
- Size (Diagonal): Axiom 2 Pro 9: 9.0´´
- Ratio: Axiom 2 Pro 9: 16:9
- Resolution: Axiom 2 Pro 9: 1280 X 720 Hd
- Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°
- Type: Ips (In-Plane Switching)
- Illumination: Axiom 2 Pro 9 1300 Nits / 1300 Cd/M2

Sonar:
- Channels: Chirp Conical Sonar
- Depth Range: 0.6 M (2 Ft) To 274 M (900 Ft) Depending On Water Conditions
