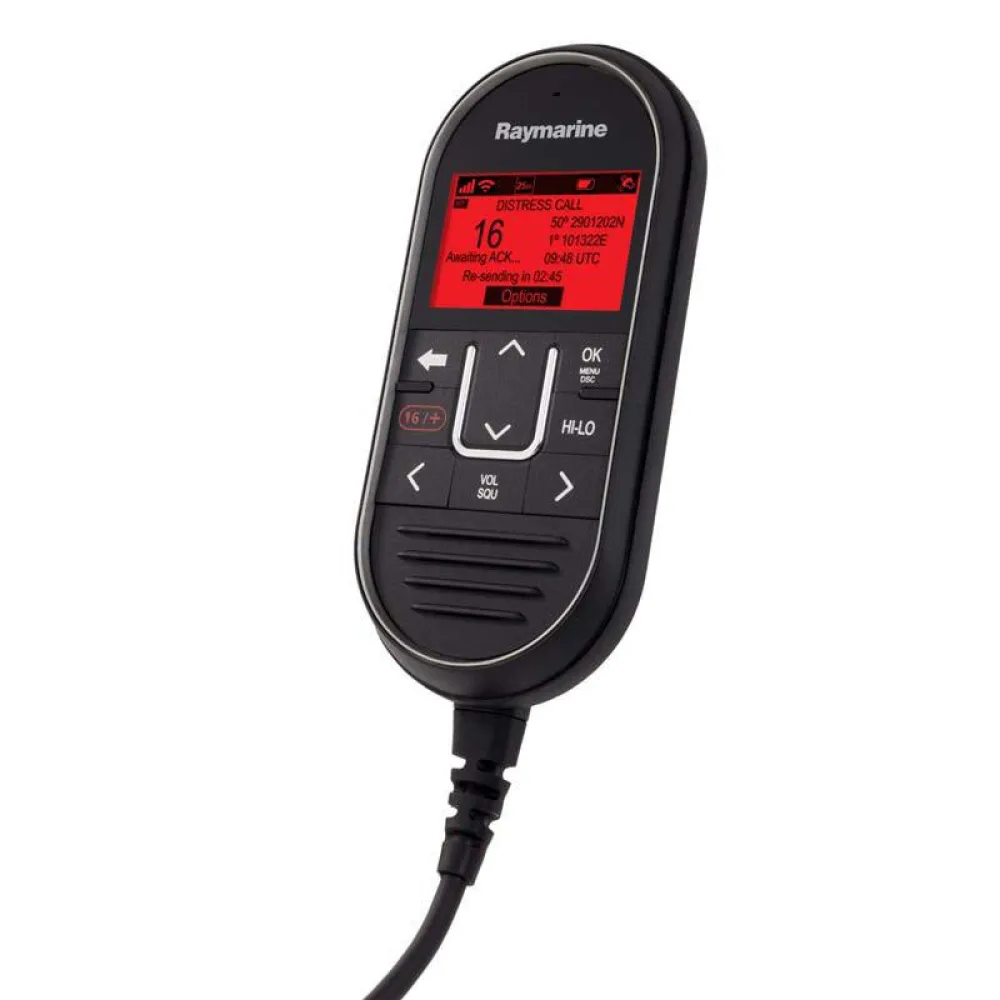

Raymarine Raymic 2nd Station Kit

Hear, be heard and be seen! The new Ray70 from Raymarine is the ultimate all-in-one communications solution for Captains who demand the very best.

The multifunction Ray70 VHF comes as standard with a full-function VHF radio, AIS receiver, Loudhailer output, and is dual-station and intercom capable too!.

Features:

- Built-in AIS Receiver and 72 channel WAAS GPS.

- 25W Loudhailer output with listen-back and automatic fog signals.

- Dual-station and intercom capable with optional handset Accessory.

- Oversized LCD display for better viewing.

- Detachable fist-mic with built-in controls and mic relocation capability.

- Detachable gunmetal silver bezel and optional black bezel.

Specifications:

- Size (HxWxD) Main Unit:

Height -inc bezel = 98.5mm (3.9 in).

- Width.

- inc bezel = 199mm (7.8 in) max.

- Depth 204.6mm (8 in) max excl rear cables.

- Weight Main Unit:

2.0 Kg (4.4 lbs).

- Environmental Specification.

- Water Integrity:

Complies with IPX6 & IPX7.

- Complies with EN60945.

- Operating Temperature Range:

-20°C to 60°C.

- Storage Temperature Range:

-25°C to 70°C.

- Humidity:

up to 95% Electrical Specification:

- Communications Port:

NMEA 0183 (version 4.01).

NMEA2000 (version 3.0).

- Nominal Supply Voltage:

12V DC.

Reverse polarity and over voltage protected.

- Operating Voltage Range:

9V DC to 16V DC.

- Current Consumption:

Less than 6A at High Power (13.6V).

- Standby:

600 mA.

- Receive:

2 Amps Transmitter Specification:

- Channels:

All available US, International and Canadian VHF marine bands.

- Frequency Range:

156.000 - 157.425 MHz.

- 155.500 to 161.425 MHz Private channels.

- Frequency Stability:

+ /.

- 1.5 ppm.

- Channel Spacing:

12.5 kHz.

- Power Output:

High Power = 25 Watt.

- Low Power = 1 Watt.

- Spurious emmission:

Better than -36 dBm at 25W (Less than 0.25 µW).

- Maximum Deviation:

+/- 5kHz.

- Antenna port impedance:

50 ohms typical.

- Receiver Specification.

- Receiver Type:

Double Conversion Super Heterodyne.

- Channels:

All available US, International and Canadian VHF marine bands.

- Frequency Range:

156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels.

- Sensitivity:

Better than 1 microvolt EMF 20dB SINAD.

- Squelch Sensitivity:

Less than -2 dBµ EMF.

- Hum & Noise:

Better than -40 dB.

- Audio Distortion:

Less than 10%.

- Receiver Sensitivity:

Distance -119 dBm (0.25uV)12 dB SINAD 8592.

Typical.

- Local -110 dBm (0.7uV)12 dB SINAD 8592.

Typical.

- Adjacent Channel Selectivity:

More than 70 dB.

- Spurious Response Rejection:

More than 70 dB.

- Inter Modulation Rejection:

More than 70 dB Speakers:

- Base Station Speaker Power Output:

2.5W (8937.).

- Fistmic Speaker Power:

1W (16937.).

- External Speaker Power:

5W (4937.) / 2.5W (8937.).

- Handset Speaker Power Output:

1W (16937.).

- Hailer Speaker Power Output:

24W (4937.) / 12W (8937.) GPS.

Specifications:

- Number of channels:

72.

- Cold Start:

<2 minutes.

- Receiver IC Sensitivity:

-167 dBm (Tracking) / -148 dBM (Acquisition).

- GNSS Compatibility:

GPS GLONASS:

- SBAS Compatibility:

WAAS.

- EGNOS.

- MSAS.

- Special.

Features:

Active jamming and interference reduction.

- Operating frequencies:

GPS L1 C/A.

- GLONASS L10F.

- Beidou B1.

- Signal Acquisition:

Automatic.

- Almanac Update:

Automatic.

- Geodetic Datum:

WGS-84 (alternatives availablr through Raymarine MFD).

- Refresh Rate:

10 Hz (10 times per second concurrent GNSS).

- Antenna:

Internal.

- Ceramic chip mounted near top of unit.

- Positional Accuracy:

Without SBAS:

<=15 metres 95% of the time.

- With SBAS:

<5 metres 95% of the time AIS.

Specifications:

- Class Type:

AIS Receive only.
