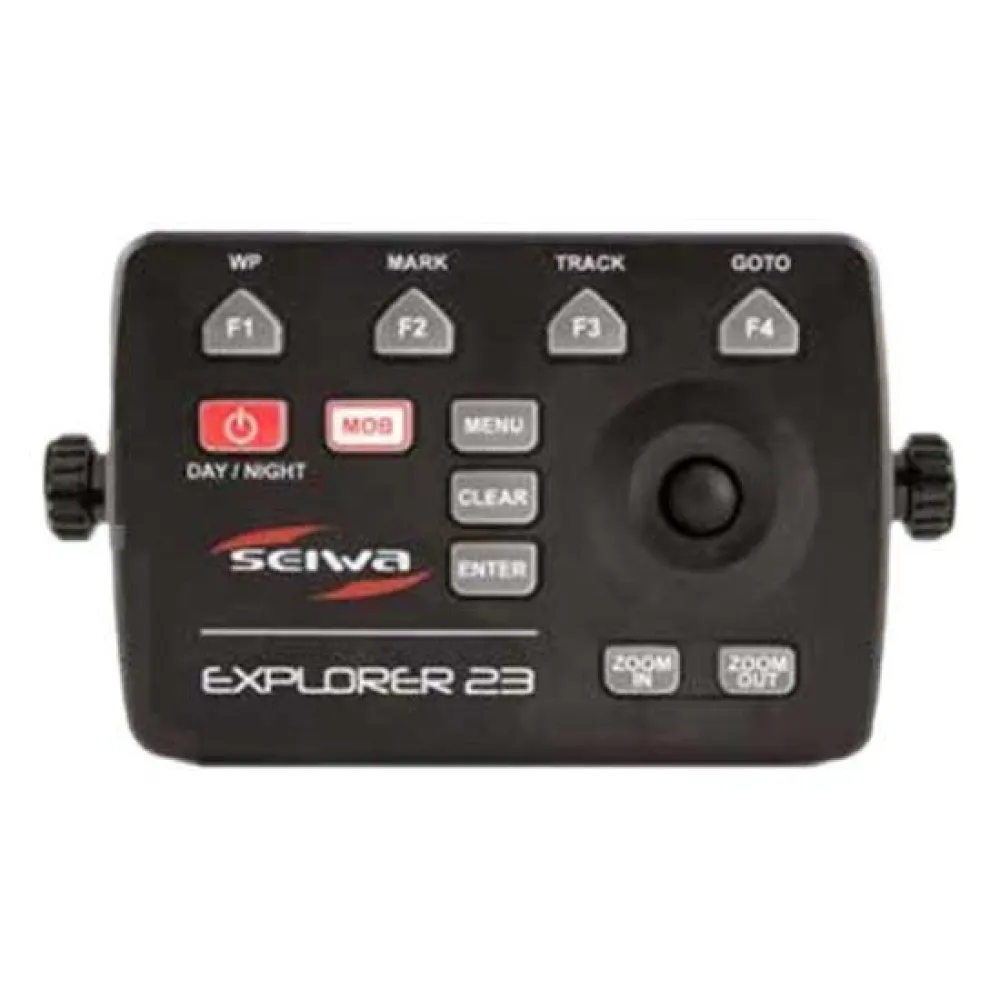

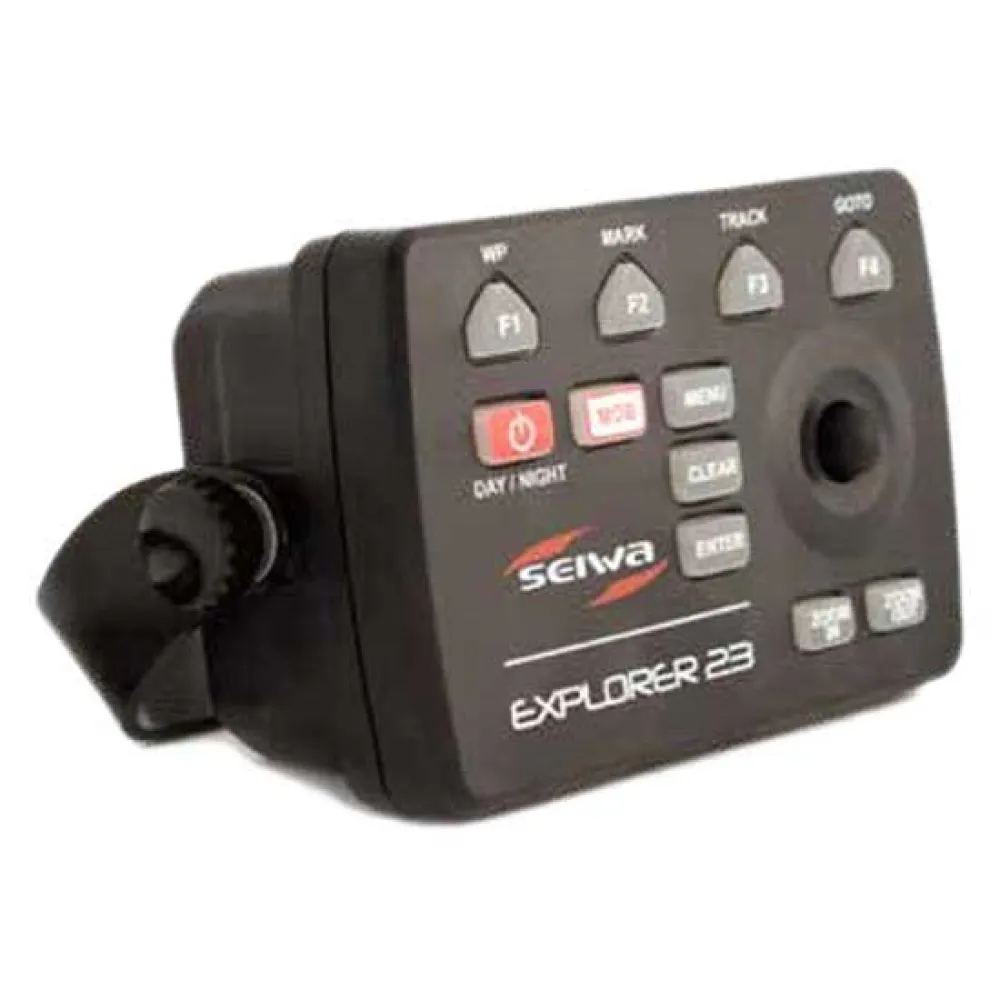

Seiwa Explorer 23 Remote Control

The Explorer 30 is a compact cartographic plotter without display that must be connected to an external monitor. Ideal for fishing boats, dredges, tug boats and in general 18-20m boats used for working activities.

Tough and reliable:
The back-lit keyboard is easy to use even with gloves and in any condition. The optional remote control gives and extra hand, for example to quickly save marks during your activity.

HDMI Video output:
Explorer 23 is compatible with any HDMI display to provide an HD resolution experience!

NMEA0183 & 2000:
Explorer 23 is extremely versatile as it comes with two NMEA0183 serial ports and one NMEA2000 port to connect any compatible device such as AIS, autopilot, engine, etc.

Configure your desired view:

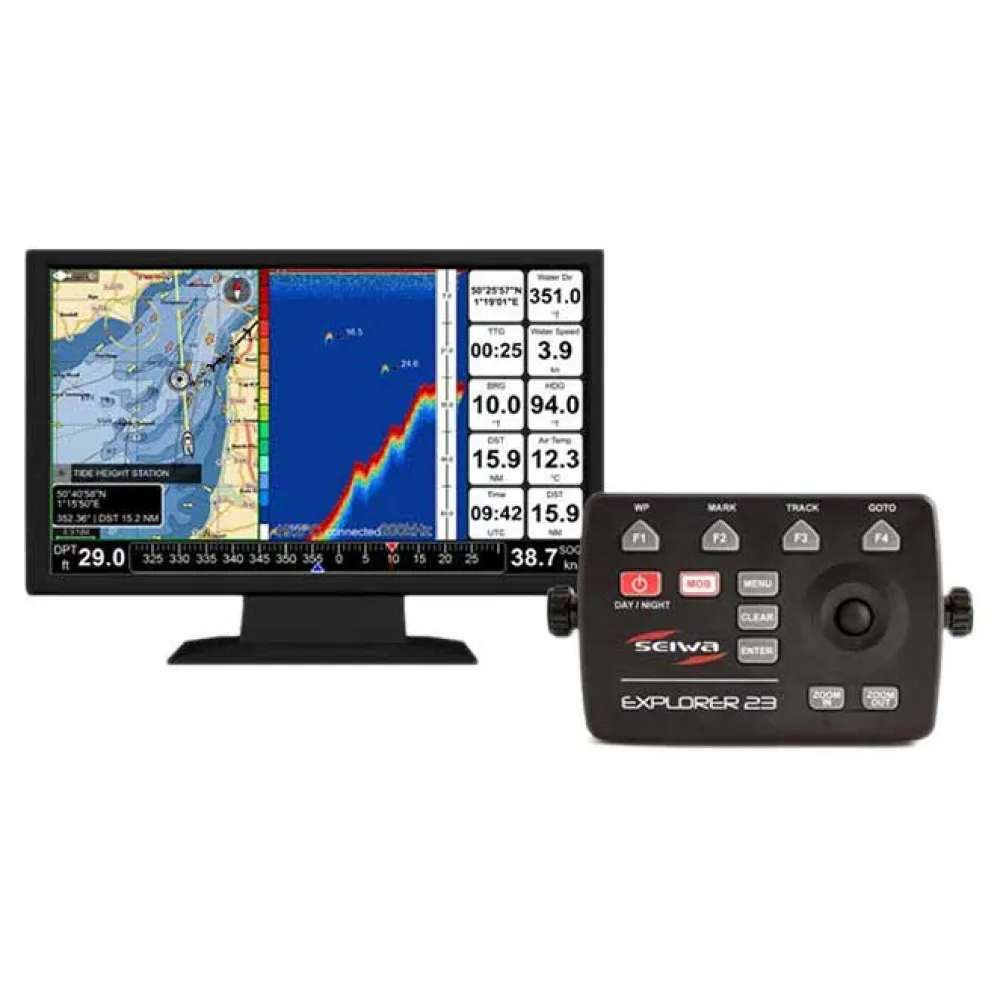

Besides choosing any display size, you can also configure the multi-vision layout with fish finder, map and data boxes: full page or split page, with no data, one or two rows of data.

Customize the function keys:
With Explorer 23, you can configure the four functional keys with your desired function shortcuts, for the top used commands.

Never miss a thing:
Browse the Fish Finder history up to 5 minutes (when connected to a fish finder) and, if you find anything interesting, place a mark on it! With the Cursor Box smart function, point the cursor on map to instantly view distance and bearing.


Software Features:

- 4 fully configurable functional keys
- Multi-vision configurable layout with fish finder, map and data boxes
- Full menu on Map
- Navigation functions: Go To, Add Waypoints, Marks, MOB, Easy routing
- Route management
- Tracks recording and management
- Customizable data boxes
- Cursor Box showing distance and bearing of cursor location
- Customizable ship profile
- Simulation mode
- Grounding alarm
- AIS compatible
- Seiwa Black Box Fish finder compatible
- Fish finder history up to 5 minutes (when connected to a fish finder)
- Engine control page (when connected to an engine)


Specifications

- Dimensions: 172.5 x 106.5 x 84.4 mm (6.8a?? x 4.2a?? x 3.3a??) with holder
- Weight: 350 g
- Compatible with any HDMI display
- Power consumption: 1.2W typical
- Supply Voltage: 10-35 Vdc
- Cartridge slot: 1 x micro SD Card (not included)
- Back-lit keyboard
- Integrated remote control receiver (radio IF 2.4 Ghz)
- Waterproof IPx6
- Storage temperature: -20 a°C / +80 a°C Operating temperature: -20 a°C / +60a°C

Connectors:
- 1x Supply and data cable: 2 NMEA0183 ports + external alarm
- 1x NMEA2000
- 1x GPS: 6 pins (powered 10-35 Vdc)
- 1x Built-in HDMI video input cable
