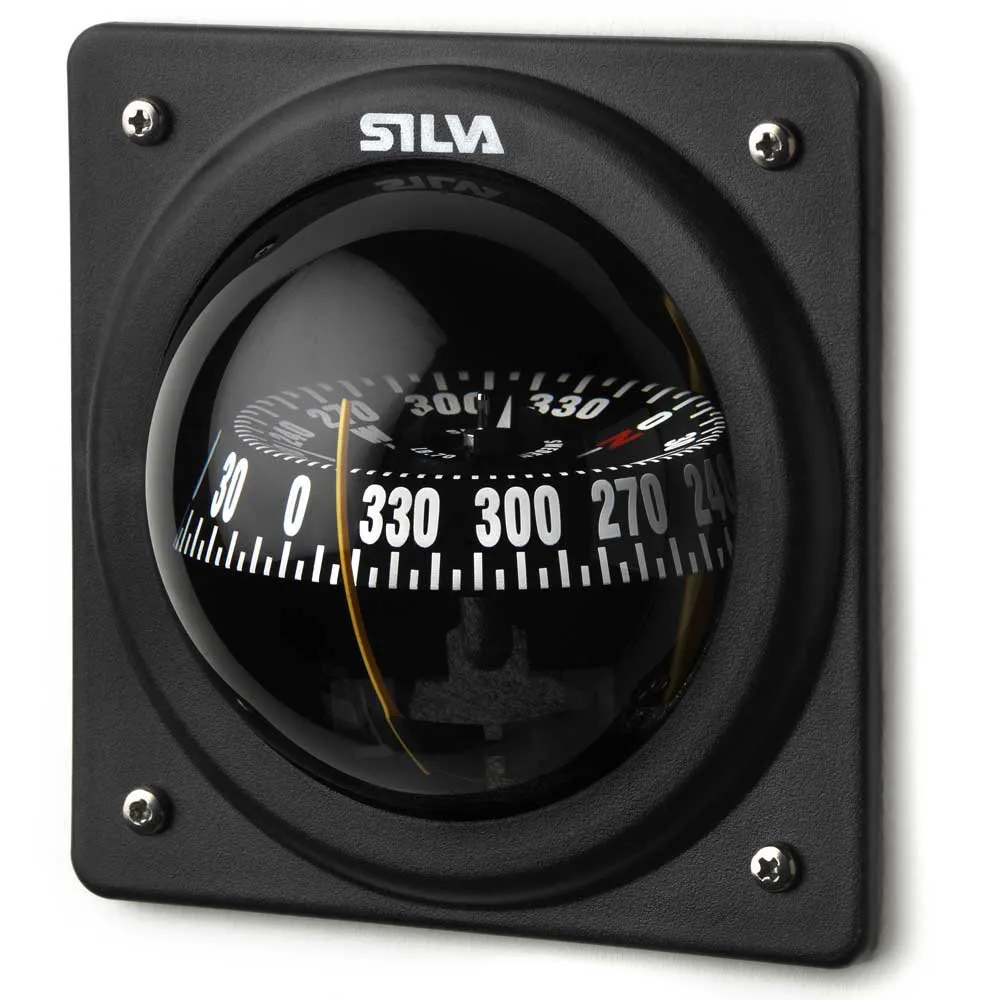

Silva 70P Compass

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions. The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax correctos. With a main steering scale on the horizontal part and direct reading on the vertical edge, 70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.





Features:



- Double scales: Can be read from front and above

- Suitable for all boats: Fits in all boat types

- Curved lubber lines: Accurate reading from different angles

- Compact size: Small and flexible





Specifications:



- Accuracy: ± 1° (17.8 mils)

- Apparent card diameter: 70mm (2.7 inch)

- Built-in compensator: Optional

- Card type: Cone

- Compatibility: Kayaks, Powerboats, Sailboats

- Dimensions: 95x72mm

- Gimballed cradle: No

- Heeling angle: Roll: 30° Pitch: 30°

- Heeling angle scale: No

- Illumination: Optional

- Lubber lines: Centre

- Material: ABS, Acrylic

- Memory ring: No

- Mounting: Bulkhead

- Mounting angle: +10° to +110°

- Temperature operating range: -10°C to +70°C

- Variant: Magnetic Equator, Magnetic South, Magnetic North

- Weight: 344g
