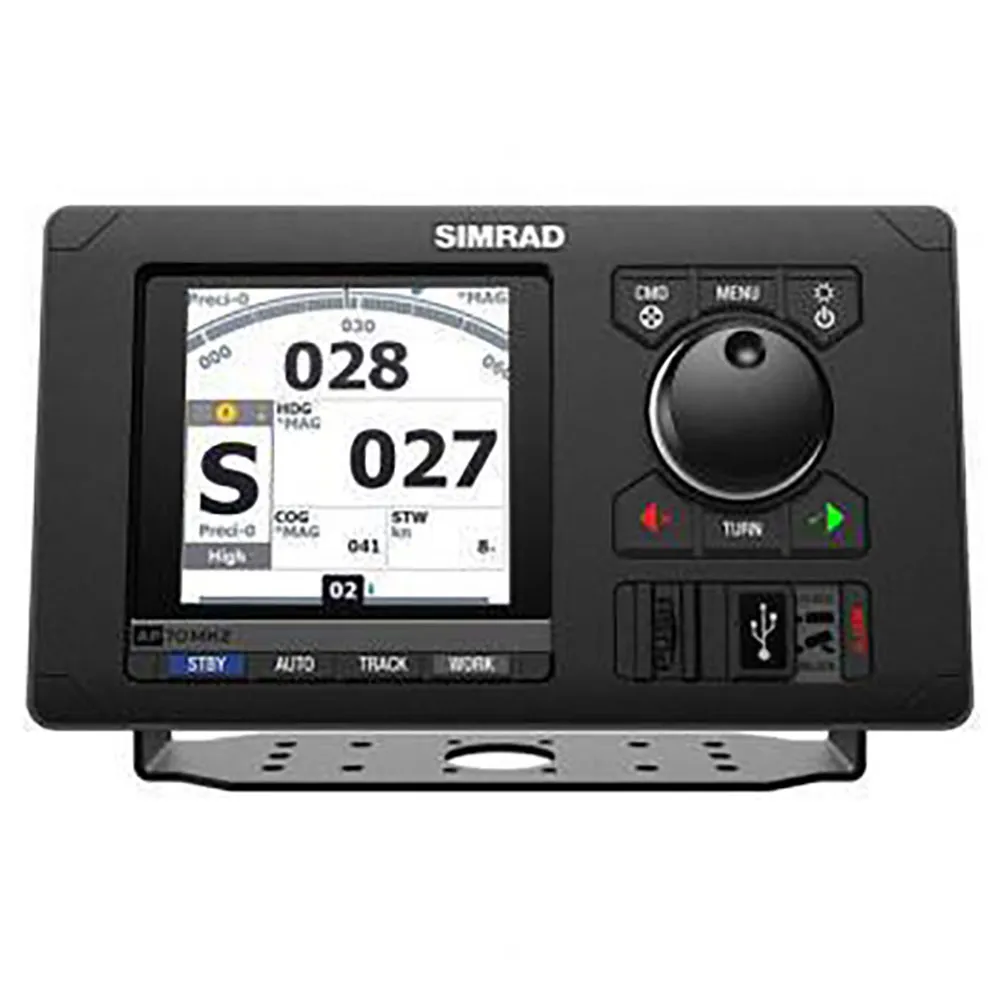

Simrad AP70 MK2 Autopilot controller

Simrad AP70 MK2 Autopilot Control Panel | IMO Compliant Marine Navigation

Experience unparalleled command and control at sea with the Simrad AP70 MK2 Autopilot Control Panel. As the successor to the renowned AP70, this IMO compliant and SOLAS-approved control unit is engineered for the demanding environments of professional maritime operations. Designed for commercial vessels, from workboats and fishing vessels to large tankers, the AP70 MK2 leverages Simrad´s groundbreaking Continuum steering technology to deliver the ultimate in precision, reliability, and ease of use, ensuring safe and efficient navigation on every voyage.

This advanced autopilot controller is built to integrate seamlessly with your vessel´s existing systems, providing a robust and intuitive interface for managing your course with confidence in all conditions.

Key Benefits
* Superior Steering Performance: Powered by Simrad´s sophisticated Continuum steering algorithm, the AP70 MK2 provides exceptionally smooth, responsive, and precise course keeping, leading to reduced rudder movement, lower fuel consumption, and less wear on your steering gear.
* Certified Professional Reliability: With IMO type approval and compliance for use on SOLAS vessels, the AP70 MK2 meets the highest international standards for safety and performance. Trust in a system built for continuous, heavy-duty commercial use.
* Intuitive and Clear Operation: Effortlessly take command with a precision rotary control dial and dedicated push buttons. The bright, optically bonded display eliminates fogging and provides crystal-clear readability in any light, from direct sun to a darkened wheelhouse.
* Complete System Integration: Go beyond simple heading control. The AP70 MK2 offers advanced configuration options, including seamless thruster integration for low-speed maneuvering and support for multi-station systems with command transfer functionality.

Main Features
* Continuum steering technology
* IMO type-approved for use on SOLAS vessels
* Optically bonded 5-inch colour display with 170° viewing angle
* Intuitive rotary control dial and dedicated keypad for quick access
* Configurable Work modes and low/high-speed modes
* Automatic Compass Calibration and Tuning
* No Drift steering mode (steer to a set course over ground)
* Integrated Thruster control
* Heavy-duty Rudder Feedback Unit support
* Command transfer functionality for multi-station installations

Panels and Display

The heart of the AP70 MK2 is its advanced control panel, featuring a vibrant 5-inch, 480x480 resolution colour display. This screen is optically bonded to the protective glass, a premium feature that prevents internal condensation and fogging while dramatically improving contrast and sunlight readability. The wide 170-degree viewing angle ensures critical autopilot data is always visible from anywhere on the bridge. This robust and responsive panel is the primary interface for all autopilot functions, providing clear visual feedback and at-a-glance status information.

Technical Specifications
* Display Size: 5-inch TFT LCD
* Display Resolution: 480x480 pixels
* Backlight Colour: White
* Viewing Angles: 85° (top, bottom, left, right)
* Waterproofing Standard: IPX6 (front)
* Supply Voltage: 12-24 V DC (10-31.2 V DC)
* Power Consumption (Typical): 11 W
* NMEA 2000 Connectivity: 1 x CAN Micro-C port, 1 LEN
* NMEA 0183 Connectivity: 2 x Tx, 2 x Rx ports
* Ethernet Connectivity: 1x10/100 Mbit port
* Approvals: IMO, SOLAS, Type Approved
* Dimensions (W x H x D): 172x114 x 57 mm (6.77x4.49x2.24 inches)
* Weight: 0.7 kg (1.5 lbs)
