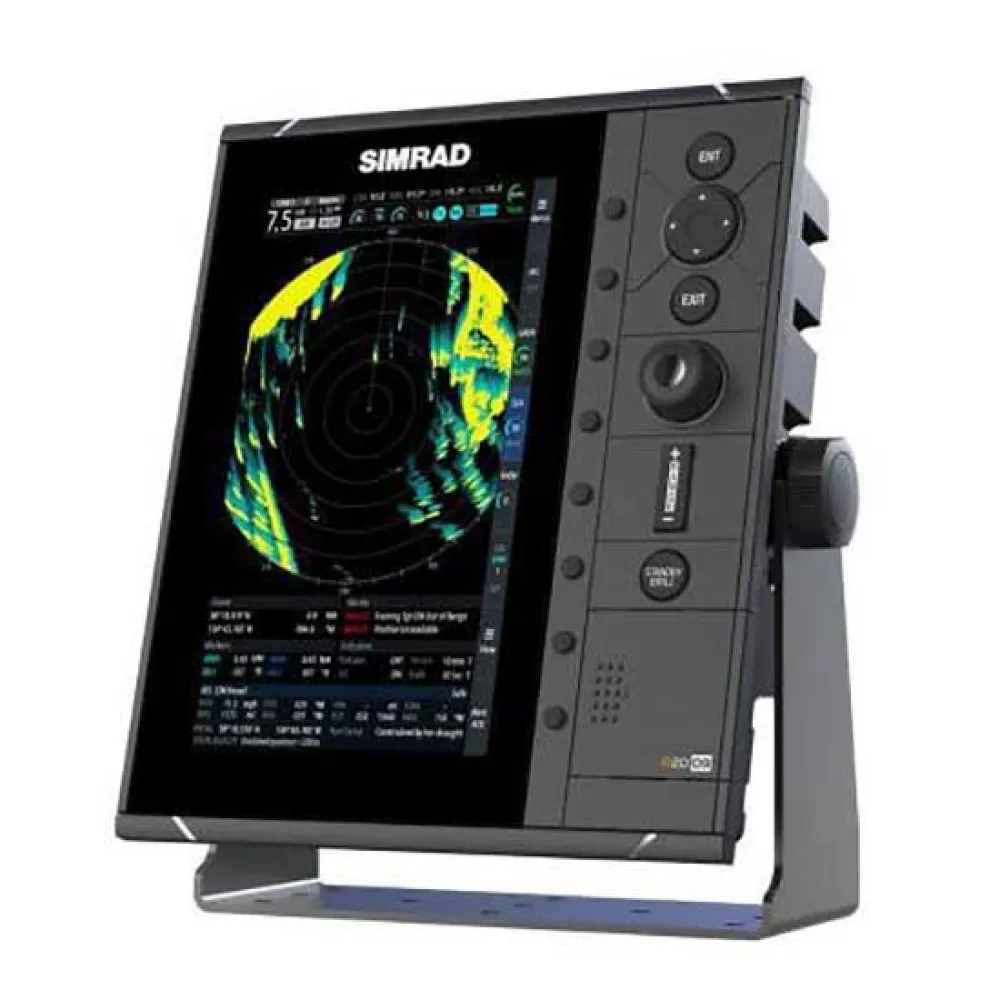

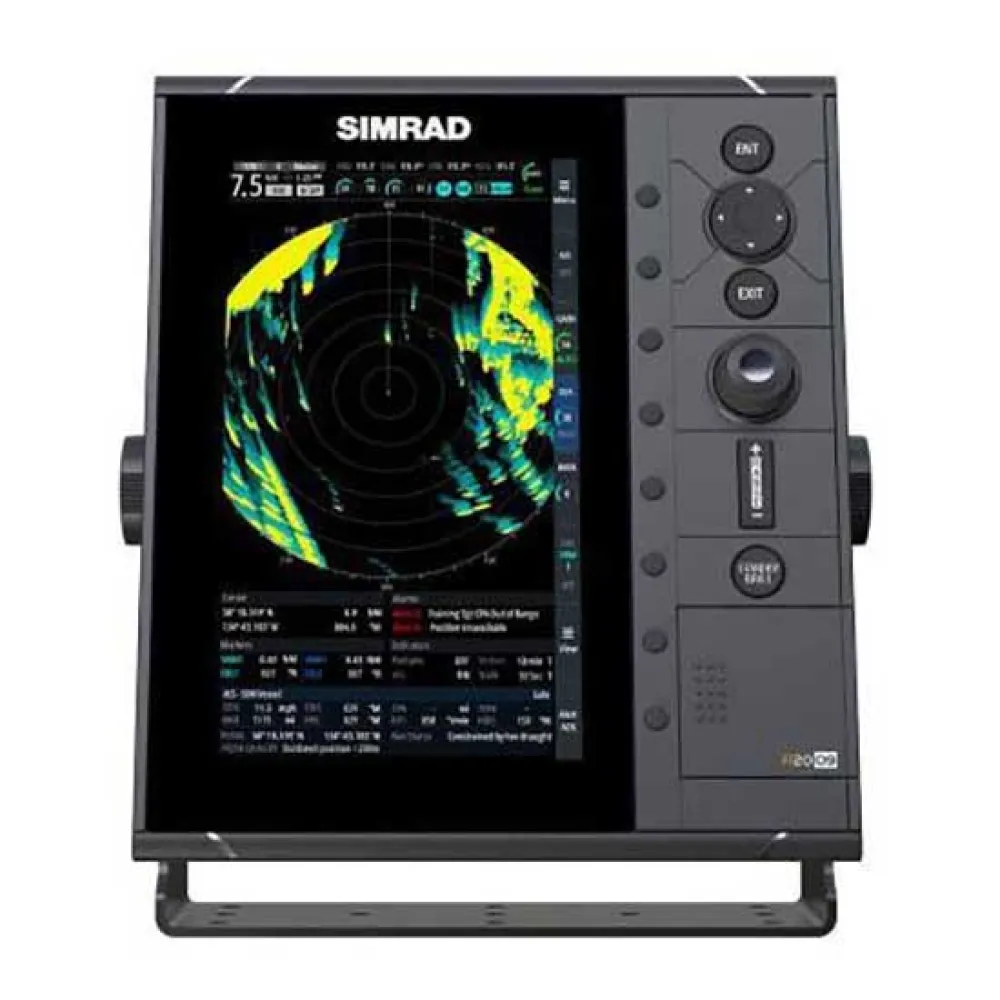

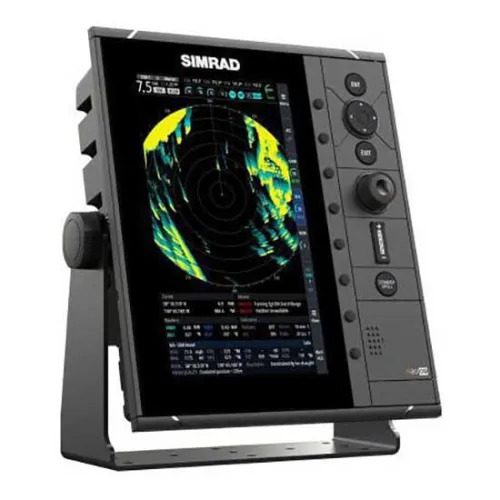

Simrad R2009 Radar Control Unit with 9-inch Display

Enhance your vessel´s safety and navigation capabilities with the Simrad R2009, a dedicated radar control unit designed for professional and serious recreational mariners. Engineered for reliability and ease of use, the R2009 provides unparalleled situational awareness on the water. It functions as a robust, standalone radar station, perfect for commercial vessels, long-range cruisers, and sportfishing boats that demand uncompromising performance. The intuitive interface, featuring a large keypad and rotary dial, ensures precise control even in rough seas or while wearing gloves, allowing you to focus on navigating safely.

The R2009 is built to integrate seamlessly into your existing Simrad ecosystem. It is fully compatible with a wide range of award-winning Simrad radar scanners, including the revolutionary Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar systems. This versatility allows you to create a powerful, customized radar solution tailored to your specific needs, whether you require short-range collision avoidance in crowded harbors or long-range weather and bird detection offshore. With its rugged construction and flexible mounting options (bracket or flush-mount), the R2009 is built to withstand the harsh marine environment and fit perfectly into any helm or navigation station.

Main Features

* Dedicated radar control unit for focused operation without distractions.
* Intuitive control interface with a large alphanumeric keypad and a smooth rotary dial.
* MARPA target tracking, enabling you to monitor up to 10 selected targets.
* Advanced anti-clutter technology for a clear, precise radar image.
* Configurable guard zones for enhanced collision and grounding alerts.
* HDMI output for mirroring the display on a secondary monitor.
* Simple Ethernet connectivity for easy installation and networking with other Simrad systems.
* Bracket and flush-mount installation kits included for versatile mounting.
* Full compatibility with Simrad Halo™, Broadband™, and HD Digital Radar systems.

Screens

The Simrad R2009 is equipped with a vibrant, high-visibility display engineered for clarity in all lighting conditions. The portrait orientation is optimized for tracking targets at a distance, providing more vertical screen space to see what lies ahead.

* Display Size: 9-inch Diagonal
* Display Type: Bonded TFT Widescreen LCD
* Resolution: 480x800 pixels
* Brightness: 1200 nits
* Viewing Angles: 80° top/bottom, 80° left/right

Technical Specifications

* Waterproofing Standard: IPX7
* Dimensions (W x H x D): 224.3x260.1x82.3 mm (8.83x10.24x3.24")
* Weight: 1.9 kg (4.2 lbs)
* Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
* Supply Voltage: 10.8-31.2 V DC (12/24V systems)
* Power Consumption (Typical): 11.5 W
* Ethernet Ports: 1x10/100 Mbit
* NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port
* NMEA 0183 Connectivity: 2 x NMEA 0183 ports (in/out)
* Video Output: 1 x HDMI output (type A)
