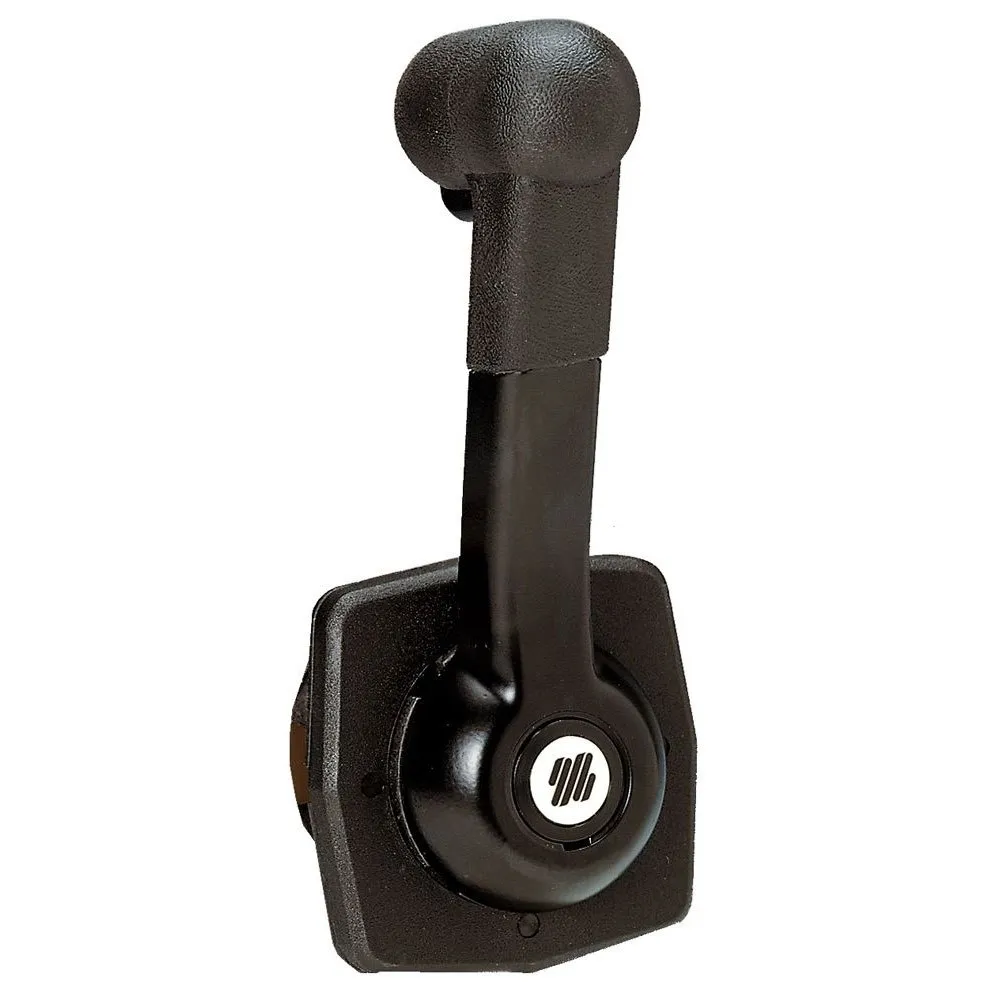

Ultraflex B183 Simple Lever Engine Control

ULTRAFLEX B183 Simple Lever Engine Control | Dual Action Throttle & Gearbox Control

Experience superior command and unwavering reliability on the water with the ULTRAFLEX B183 Simple Lever Engine Control. As a premier choice in the marine steering category, this control system is engineered for boaters who demand precision, safety, and versatility. The B183 provides intuitive, single-lever management of both the throttle and gearbox, simplifying vessel operation and allowing you to focus on navigation and enjoyment. Its robust design and universal compatibility make it an ideal upgrade or replacement for a vast array of boats and equipment.

Designed for seamless integration, the ULTRAFLEX B183 ensures smooth and responsive handling in any marine environment. Whether you are maneuvering in a crowded marina, cruising along the coastline, or engaged in demanding open-water activities, this control lever delivers the performance you can trust. Its exceptional engineering prioritizes both functionality and durability, offering a dependable link between you and your engine.

Key benefits of the B183 Engine Control include:

* Effortless Single-Lever Operation: Control both throttle and gear shifting with one smooth, dual-action lever, enhancing ease of use and reducing cockpit clutter.
* Versatile Mounting Options: The innovative design allows for flexible installation. It can be mounted on either the port or starboard side, in a horizontal or vertical orientation, to best suit your helm’s layout.
* Enhanced Safety and Security: A built-in lever lock device prevents accidental gear engagement, providing peace of mind at the dock and underway. For added protection, an optional neutral safety switch ensures the engine can only be started when the gearbox is in the neutral position.
* Stable Throttle Positioning: An integrated and easily adjustable friction drag mechanism prevents throttle creep caused by engine vibration, maintaining your desired speed without constant readjustment.
* Simple Engine Warm-Up Procedure: Prepare your engine for departure with ease. The warm-up function is activated by simply pulling the hand lever outwards, disengaging the gearbox while allowing for throttle advancement in neutral.

Levers

The ULTRAFLEX B183 is equipped with a high-quality, ergonomically designed lever for precise and comfortable operation. The single-lever, dual-action system simplifies handling by combining throttle and shift functions, allowing for intuitive forward, reverse, and speed adjustments with one hand. The lever´s design incorporates a convenient pull-out feature for disengaging the gearbox, enabling safe and simple engine warm-up without propulsion. This focus on functional and user-friendly design ensures a more confident and enjoyable boating experience.

Technical specifications

Top and side mount dual action controls with lever lock device for throttle and gearbox.

Suitable for any kind of boat with outboard motor, inboard, and stern-drive, with hydraulic gearbox.

Mounts port or starboard, horizontally or vertically.

The hub and the lever are made in die-cast aluminium and varnished.

Built-in friction drag to prevent throttle creep.

Warm-up are done by pulling out the hand levers.

With safety switch X12 , start can be done only with gearbox in the neutral position.

The model B184 has in the hand levers a trim switch to adjust tilt of outboard and stern-drive.

Suitable for all type of control cables C2-C8-C14 and Mach0-Mach14.

C5-C16-Mach 5 cables need adapter kit K35, art. 4242069
