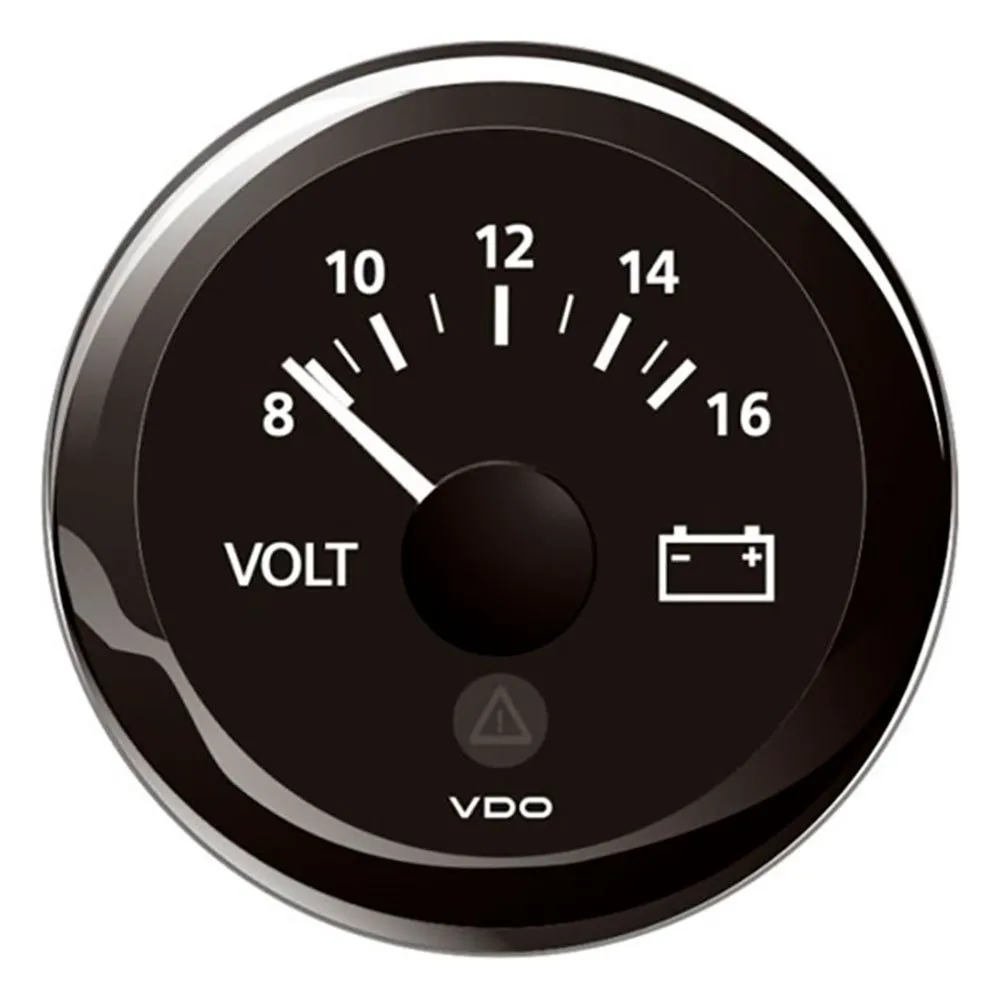

VDO View Line Round Voltmeter 8-16V

The ViewLine voltmeter displays the status of generator and battery and their loads on a voltage scale.

Values exceeding the normal charging voltages can therefore be monitored exactly.

Specifications:

- Weight:

0.45kg Sizes and mounting:

- Installation (Hole) diameter and Outside diameter:

52 mm.

- 2 1/16 Inch and 59 mm.

- 2 1/3 Inch.

- Installation depth:

50 mm.

- Locking height with SAnti-fog nut:

0.5 mm.

- 20 mm.

- Locking height with bracket:

2 mm.

- 15 mm (Optional) Functionality:

- Voltmeter measurement range:

8 to 16V DC.

- Signal input voltmeter:

0 to 16V DC Battery power.

- Accuracy:

< 3.6 angular degrees.

- Connection:

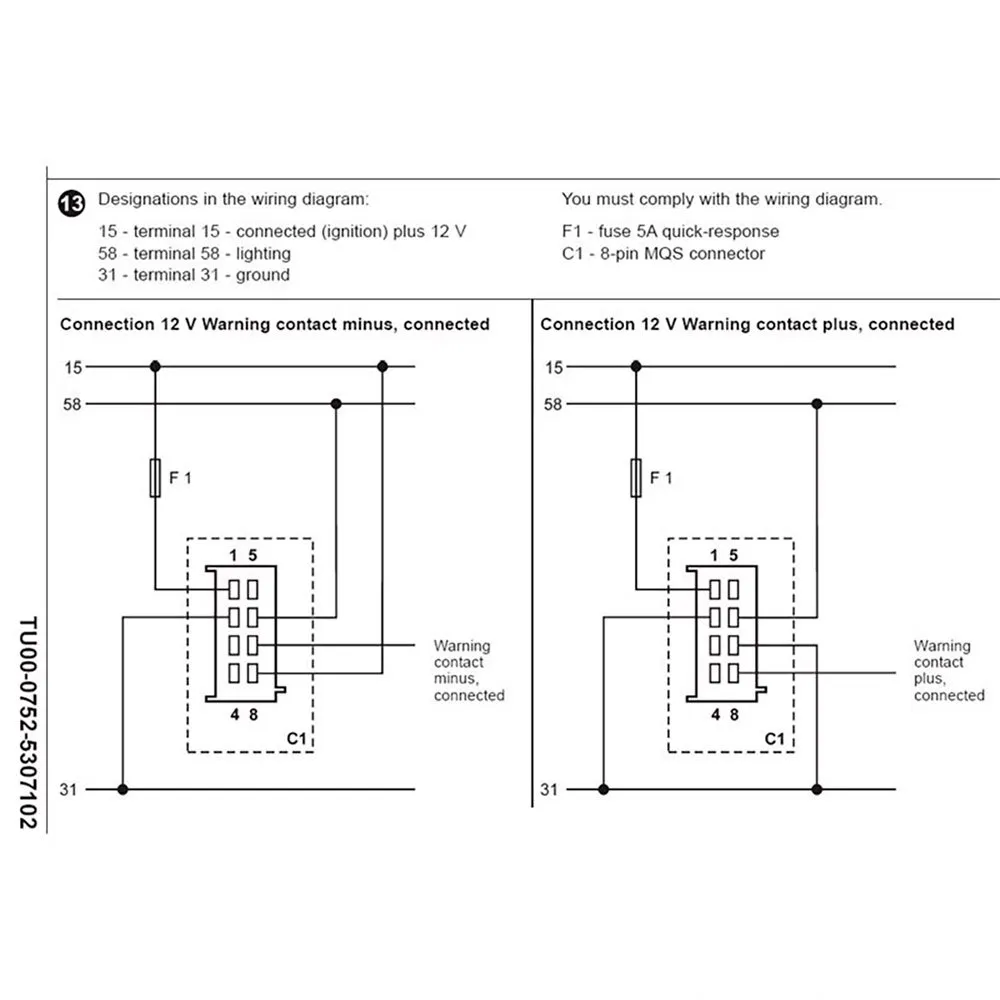

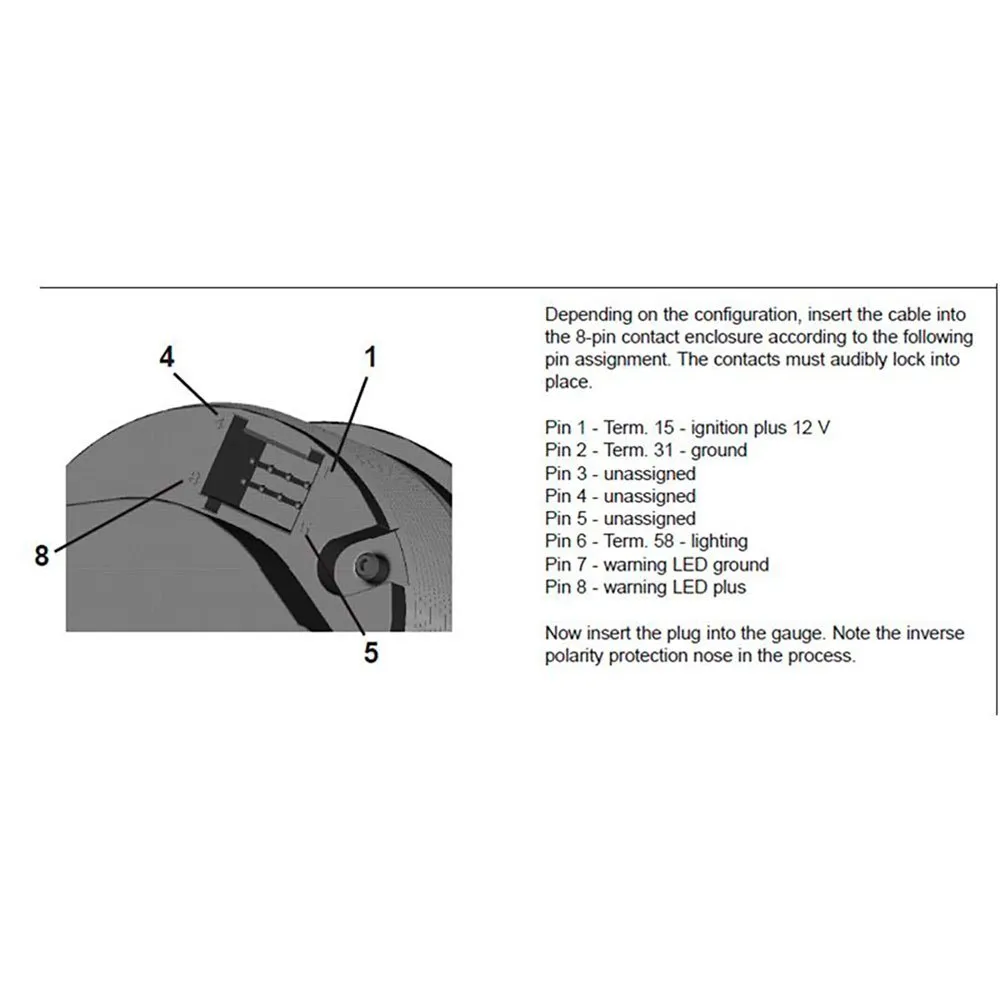

Hirschmann 8 pins MQS connector Power supply:

- Operating voltage:

8 to 16 Volt DC.

- Current consumption:

< 140 mA including warning LED.

- Reverse polarity protection:

Yes.

- 5 Minutes.

- Short circuit protection:

Yes.

- 1 Minute Dial & Pointer:

- Deflection angle:

90°.

- Dial Illumination:

Amber LED backlight 605nm.

- Pointer:

White LED backlight.

- Warning LED:

Red (632nm).

- Programming:

Veratron USB software kit Design:

- Model:

Veratron ViewLine Marine.

- Lens:

Dual.

- Anti-glare.

- Anti-Fog.

- Standard bezel:

Round black (Interchangeable).

- Protection and standards:

- Front protection class:

IP67 (IEC 60529).

- Rear protection class:

IP52.

- Relative humidity:

Maximum 95%.

- Operating temperature:

- 30°C to +80°C (Plastic bezel).

- CE standard:

Yes.

- DNV GL Certification:

Yes.

- Mechanical shock continuous:

25G.

- 6ms.

- 1Hz.

- Mechanical single shock 100G.

- 11ms.

- Free fall test:

1 Meter.

- 3x.

- Housing flame retarding:

UL94-VD.
