Veratron VHM35 multifunction indicator with GPS

VERATRON VHM35 Multifunction Indicator with GPS | All-in-One Marine & Vehicle Display

Category: Electronics
Subcategory: Instruments

Transform your dashboard from cluttered to consolidated with the VERATRON VHM35, the ultimate all-in-one multifunction indicator. Designed for marine, off-highway, and specialty vehicle applications, this powerful device replaces a multitude of traditional gauges, offering a streamlined, modern, and highly functional monitoring solution. The VHM35 integrates seamlessly into any dash, fitting a standard 85mm (3-3/8") cutout, providing a wealth of critical information on a single, vibrant screen. Say goodbye to complexity and hello to complete control.

The VHM35 is more than just a display; it is the intelligent heart of your vessel´s or vehicle´s monitoring system. Its brilliant 3.5-inch sunlight-readable color display ensures perfect visibility in all conditions, from direct sun to nighttime operation. The optically bonded lens prevents fogging and guarantees a crystal-clear view of your data at all times.

Key Benefits:

* Complete Situational Awareness: Consolidate all your essential instruments into one dynamic display. Monitor engine data (RPM, temperature, pressure), fuel levels, battery status, navigation information, and much more, all without switching between multiple gauges.
* Integrated High-Precision GPS: Featuring a built-in 72-channel GPS receiver with a 10 Hz refresh rate, the VHM35 provides accurate Speed Over Ground (SOG), Course Over Ground (COG), and precise time and date information directly, eliminating the need for an external GPS antenna and simplifying installation.
* Seamless System Integration: The VHM35 acts as a powerful NMEA 2000 certified gateway. It can read data from your analog engine sensors (like temperature, pressure, or fuel level senders) and convert it into NMEA 2000 PGNs. This allows you to bring legacy analog systems onto your modern digital network, extending the life and capability of your existing equipment.

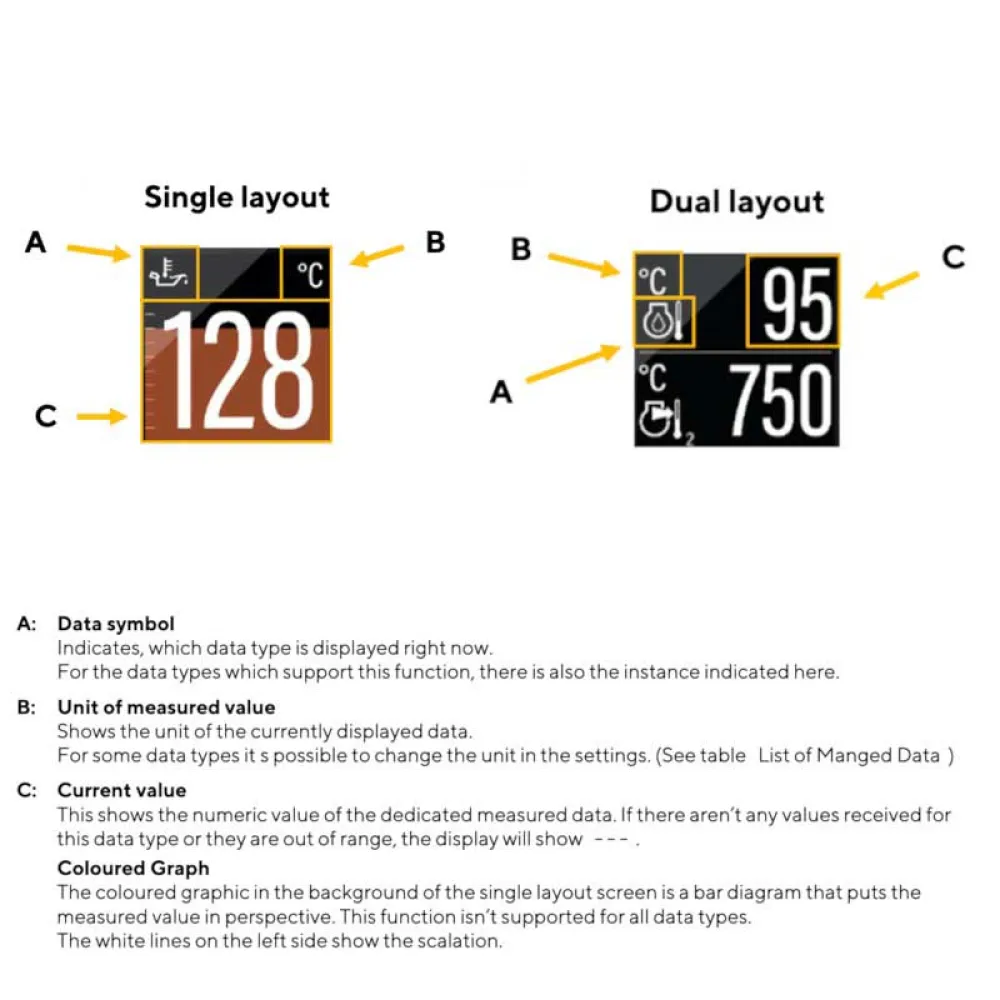

* Fully Customizable Views: Tailor the display to your specific needs. The intuitive user interface, controlled by four capacitive touch buttons, allows you to configure up to 10 different screen layouts, showing single, double, or quad grid data pages. Prioritize the information that matters most to you.
* Robust and Reliable Design: Engineered for harsh environments, the VERATRON VHM35 boasts an IPX7 protection rating, ensuring it is fully waterproof and ready for the demands of marine and outdoor use.

Main Features:

* Vibrant 3.5-inch IPS Color Display
* Integrated 72-Channel GPS Receiver
* NMEA 2000 Certified Gateway Functionality
* Analog and Frequency Inputs for Legacy Sensor Integration
* Customizable Data Pages and Screen Layouts
* User-Configurable Alarms for Critical Parameters
* Easy Installation in Standard 85mm Round Cutout
* Intuitive 4-Button Capacitive Touch Interface
---

Technical Specifications:

* Resolution: 320x240 pixels
* Mounting Hole: 85mm (3-3/8") diameter
* Operating Voltage: 12/24V (nominal)
* Current Consumption: < 150mA (typical)
* Protection Class: IPX7 front and rear
* 1x NMEA 2000 (M12 5-pin male)
* 1x Main Harness (Molex MX150 12-pin)
* 1x Frequency Input (for RPM)
* 3x Resistive Inputs (0-1k Ohm)
* 2x Voltage Inputs (0-5V)
* 1x Digital Input
* 72-channel, high-sensitivity
* 10 Hz refresh rate
* Supports GPS, Glonass, Galileo, BeiDou
* Internal antenna
