Vetus EAIR070 Motor Controller

VETUS EAIR070 Motor Controller | 48V for E-LINE Electric Propulsion

Unlock the full potential of your vessel´s electric propulsion system with the VETUS EAIR070 Motor Controller, the intelligent heart of the VETUS E-LINE series. Engineered for superior performance and reliability, this advanced controller ensures seamless power management, optimal efficiency, and uncompromising safety for a silent and enjoyable boating experience. As a critical component in the Electronics and Accessories category, the EAIR070 is designed to integrate flawlessly with VETUS 48V electric inboard motors, providing precise and responsive control.

The EAIR070 is more than just a power regulator; it is the central command unit for your propulsion system. It intelligently translates commands from the helm into precise motor output, all while actively monitoring system health to protect your investment. Its sophisticated air-cooled design ensures stable operating temperatures even under sustained load, guaranteeing consistent performance when you need it most.

Key Benefits:

* Optimized Power and Efficiency: Specifically tuned for VETUS E-LINE motors, the EAIR070 maximizes energy transfer from your battery bank to the propeller. This results in extended range and efficient power usage, allowing you to spend more time on the water.
* Enhanced Safety and Control: Featuring VETUS Active Electronic Braking, the controller provides powerful and controlled deceleration, offering an essential safety margin for emergency stops or precise maneuvering in tight quarters. Integrated over-temperature and over-current protection safeguards both the motor and the controller.
* Seamless System Integration: Utilizing the V-CAN bus protocol, the EAIR070 communicates effortlessly with all other VETUS E-LINE components. It is also NMEA2000 compatible, allowing for easy integration into your boat´s existing network for centralized monitoring on multifunction displays.

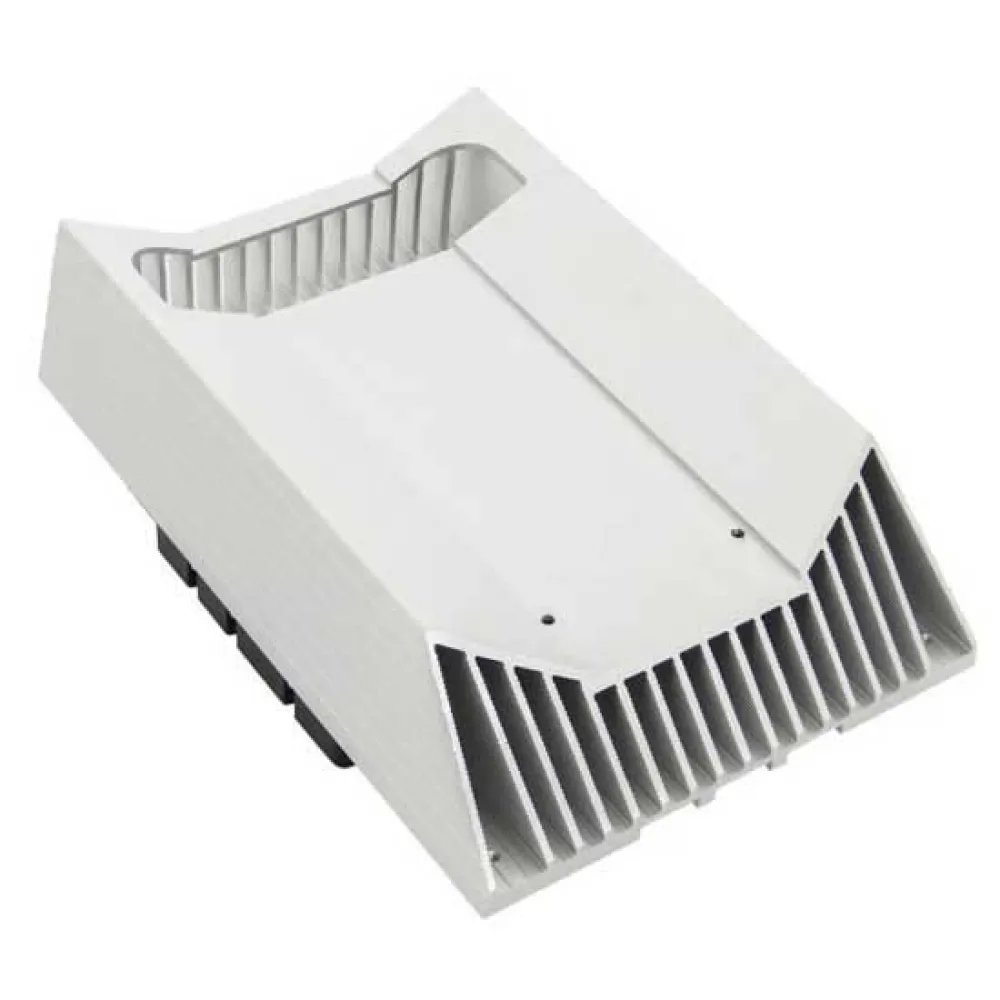

* Robust Marine-Grade Durability: Built to withstand the harsh marine environment, the controller features an IP66-rated enclosure, offering complete protection against dust ingress and powerful water jets. The air-cooled design eliminates the need for complex liquid cooling systems, simplifying installation and maintenance.

Main Features:

As one of the most advanced marine motor Controllers available, the EAIR070 is packed with features designed for the modern electric vessel. It provides galvanic isolation between the motor and the 48V battery bank, preventing stray currents and enhancing system safety. The integrated Battery Protection function actively monitors the battery bank´s state of charge and voltage, preventing deep discharge that could lead to permanent damage. Its plug-and-play connectivity via the V-CAN bus simplifies installation, reducing setup time and potential wiring errors.

Technical Specifications:

* Model: EAIR070
* Nominal Voltage: 48 V DC
* Nominal Current: 150 A
* Peak Current (2 min): 250 A
* Cooling System: Air-cooled
* Communication Protocol: V-CAN (NMEA2000 compatible)
* IP Rating: IP66 (Waterproof and dustproof)
* Dimensions (L x W x H): 271x228 x 91 mm
* Weight: 3.9 kg
* Compatibility: Designed exclusively for VETUS E-LINE 5 kW, 7.5 kW, and 10 kW inboard electric propulsion systems.

Choose the VETUS EAIR070 Motor Controller to ensure your electric propulsion system operates with the peak performance, safety, and reliability that the VETUS brand is renowned for. Upgrade your boating experience with intelligent, efficient, and silent power
