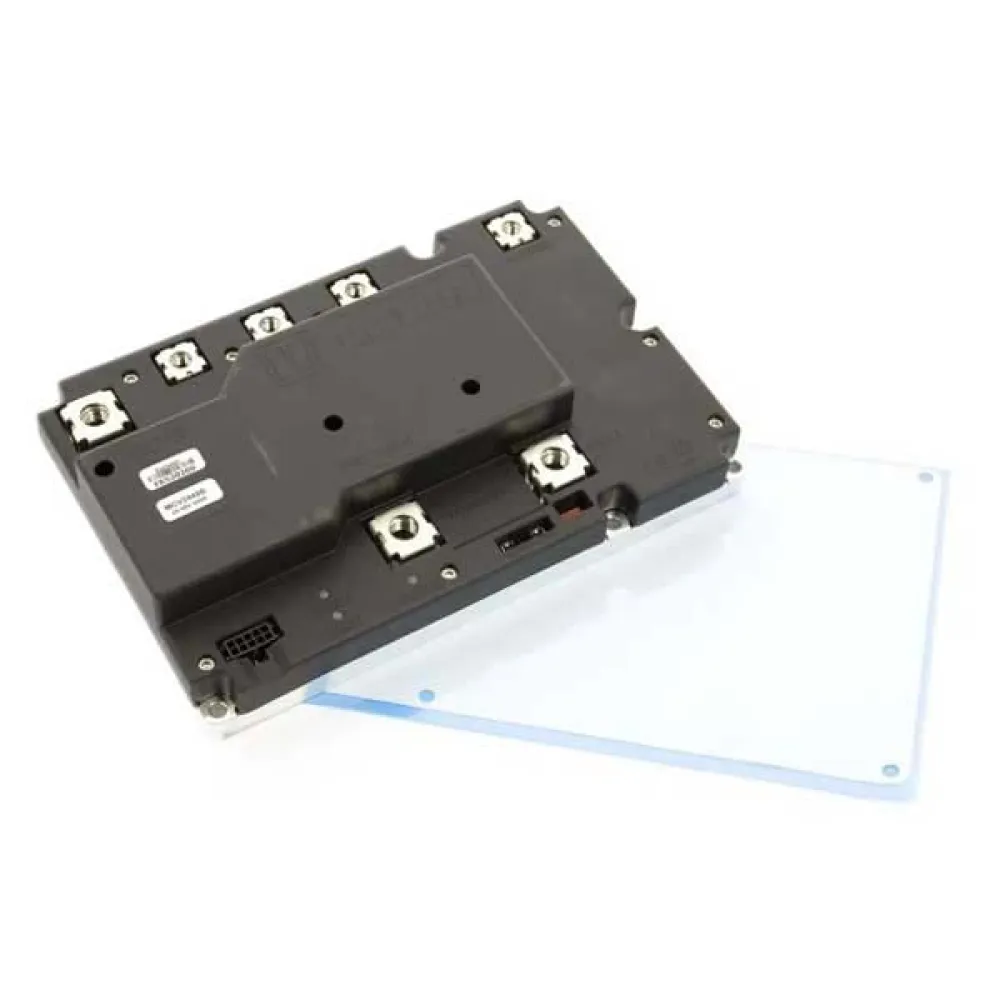

Vetus ELINE080 Motor Controller

VETUS ELINE080 Motor Controller | E-LINE Electric Propulsion

Category: Electronics
Subcategory: Accessories

Unlock the full potential of your electric boating experience with the VETUS ELINE080 Motor Controller, the intelligent heart of the VETUS E-LINE electric propulsion system. Engineered for precision, reliability, and seamless integration, this advanced controller acts as the central nervous system for your vessel´s powertrain. It translates your commands into smooth, efficient, and silent motor performance, ensuring you have complete confidence and control on the water. Designed specifically for the VETUS E-LINE series, the ELINE080 is more than just a component; it´s the key to a smarter, safer, and more enjoyable journey.

Experience Superior Control and Reliability

The VETUS ELINE080 is built to enhance every aspect of your electric propulsion system. Its primary benefit lies in providing an intuitive and responsive "gearbox" feel without a physical gearbox. The innovative Active Motor Braking feature allows for swift and controlled stopping and reversing, delivering unparalleled maneuverability in tight quarters and during docking. This controller actively protects your investment by incorporating robust safety protocols, including comprehensive monitoring of battery voltage to prevent deep discharge and extend battery life. Furthermore, its integrated temperature protection safeguards both the motor and the controller itself from overheating, ensuring long-term durability and peace of mind during extended use.

Advanced Engineering for Peak Performance

At its core, the ELINE080 is designed for intelligent system communication. It is fully V-CAN (CAN bus) compliant, enabling plug-and-play connectivity with all other VETUS E-LINE components, such as the NMEA2000 compatible monitoring panels and electronic throttle controls. This creates a unified, smart network on your vessel where all parts communicate flawlessly. A standout feature is the boosted battery charge function, which cleverly uses the main 48V propulsion battery bank to charge your 12V service battery (up to 25A), eliminating the need for a separate DC-DC converter and simplifying your onboard electrical system. The galvanically isolated CAN bus ensures system stability and protects sensitive electronics from potential electrical interference.

---

Technical Specifications

Attribute: Controllers

* Model: VETUS ELINE080 (MCV48080)
* System Compatibility: Specifically designed for VETUS E-LINE Electric Propulsion Systems
* Nominal Voltage: 48V DC
* Continuous Current: 80 A
* Cooling System: Passive Air Cooling
* Communication Protocol: V-CAN (CAN bus) Certified, NMEA2000 compatible

* Active Motor Braking for controlled stopping and reversing
* Motor and Controller Temperature Protection
* Battery Undervoltage Protection
* Boosted 12V Battery Charge Output (from 48V bank)
* Integrated main switch for positive supply
* Ingress Protection Rating: IP65, ensuring protection against dust and low-pressure water jets from any direction.
* Dimensions (L x W x H): 272x216 x 95 mm (10.7" x 8.5" x 3.7")
* Weight: 3.5 kg (7.7 lbs)

Choose the VETUS ELINE080 Motor Controller for a fully integrated, highly efficient, and exceptionally reliable electric propulsion system. It is the definitive choice for boat owners who demand precision engineering and flawless performance
