Vitrifrigo ND35 VR V cooling unit

VITRIFRIGO ND35 VR V Cooling Unit

Transform your boat´s galley with the VITRIFRIGO ND35 VR V, the ultimate cooling unit for creating a custom, high-performance refrigerator. Engineered specifically for the demanding marine environment, this system provides the power and flexibility to build a refrigeration solution that perfectly fits your space and needs. Say goodbye to standard-sized coolers and hello to a fully integrated, efficient, and reliable fridge designed by you, powered by Vitrifrigo´s world-class technology. Ideal for boat owners who refuse to compromise on freshness and performance while at sea.

The core benefit of the ND35 VR V lies in its exceptional energy efficiency and robust cooling power, driven by the legendary Secop BD35F compressor. This allows for minimal power consumption from your 12V or 24V DC battery system, extending your time off-grid without sacrificing performance. The ventilated evaporator ensures rapid and uniform temperature distribution throughout your custom-built fridge box, eliminating warm spots and keeping your provisions perfectly chilled, even in warm climates. Its design provides superior cooling for refrigerator volumes up to 150 litres.

Main Features
* High-performance ventilated evaporator for fast, even cooling and reduced frost buildup.
* Powered by the industry-renowned Secop BD35F compressor for reliability and low energy draw.
* Automatic voltage switching for seamless operation on both 12V and 24V DC systems.
* External mechanical thermostat for simple and precise temperature control.
* Pre-charged system with quick-connect couplings for straightforward, hassle-free installation.
* Designed for building custom refrigerators in boats, yachts, and other mobile applications.

Modules

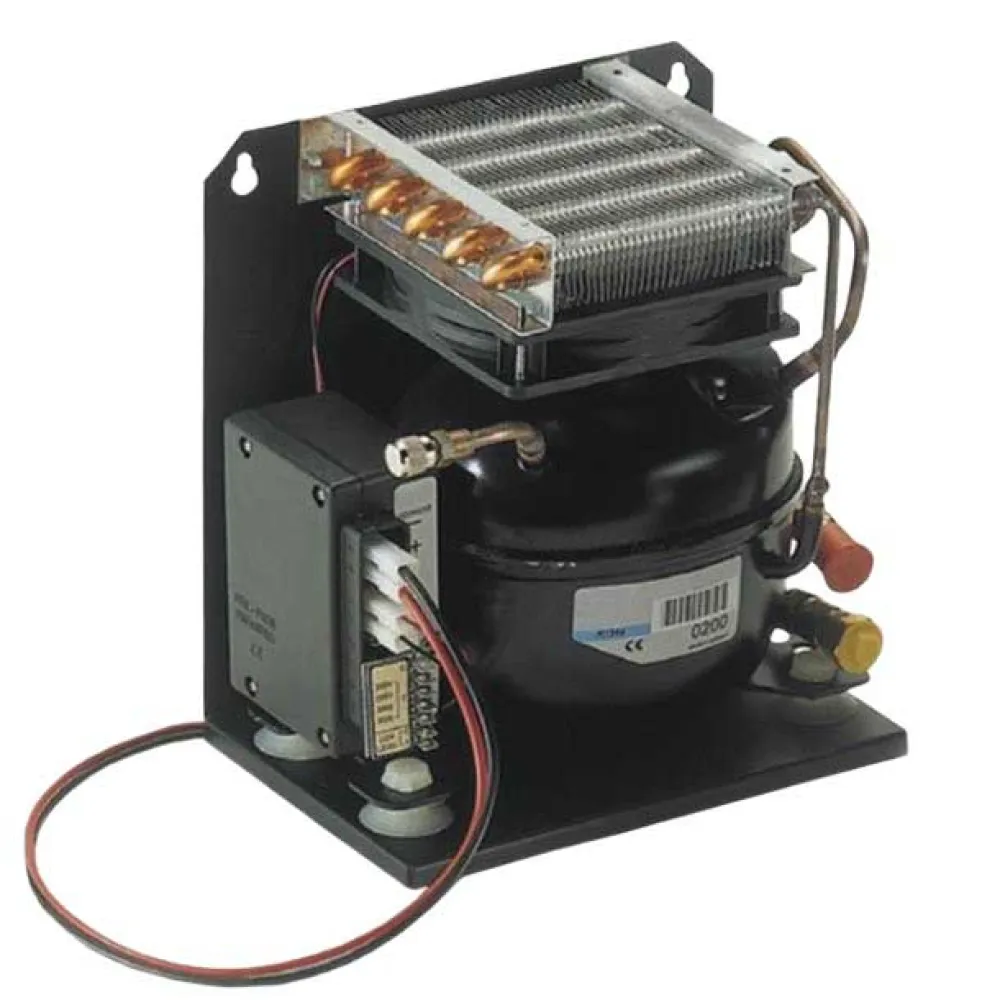

The VITRIFRIGO ND35 VR V is a modular system designed for ultimate installation flexibility. It consists of two primary modules: the compact compressor unit and the high-efficiency ventilated evaporator unit. These modules are connected by a generous length of flexible tubing, allowing the compressor to be mounted remotely in a well-ventilated area (like an engine room or locker) to dissipate heat and minimize noise in the galley, while the evaporator is placed inside your custom insulated box.

Technical Specifications
* Voltage: 12/24V DC
* Compressor: Secop BD35F
* Recommended Max. Fridge Volume: 150 litres
* Nominal Power Consumption: 45 W
* Evaporator Dimensions (WxDxH): 270x220 x 55 mm
* Compressor Unit Dimensions (WxDxH): 285x160 x 155 mm
* Total Weight: 9 Kg
* Thermostat Control: Mechanical, external placement
* Refrigerant Gas: R134a
