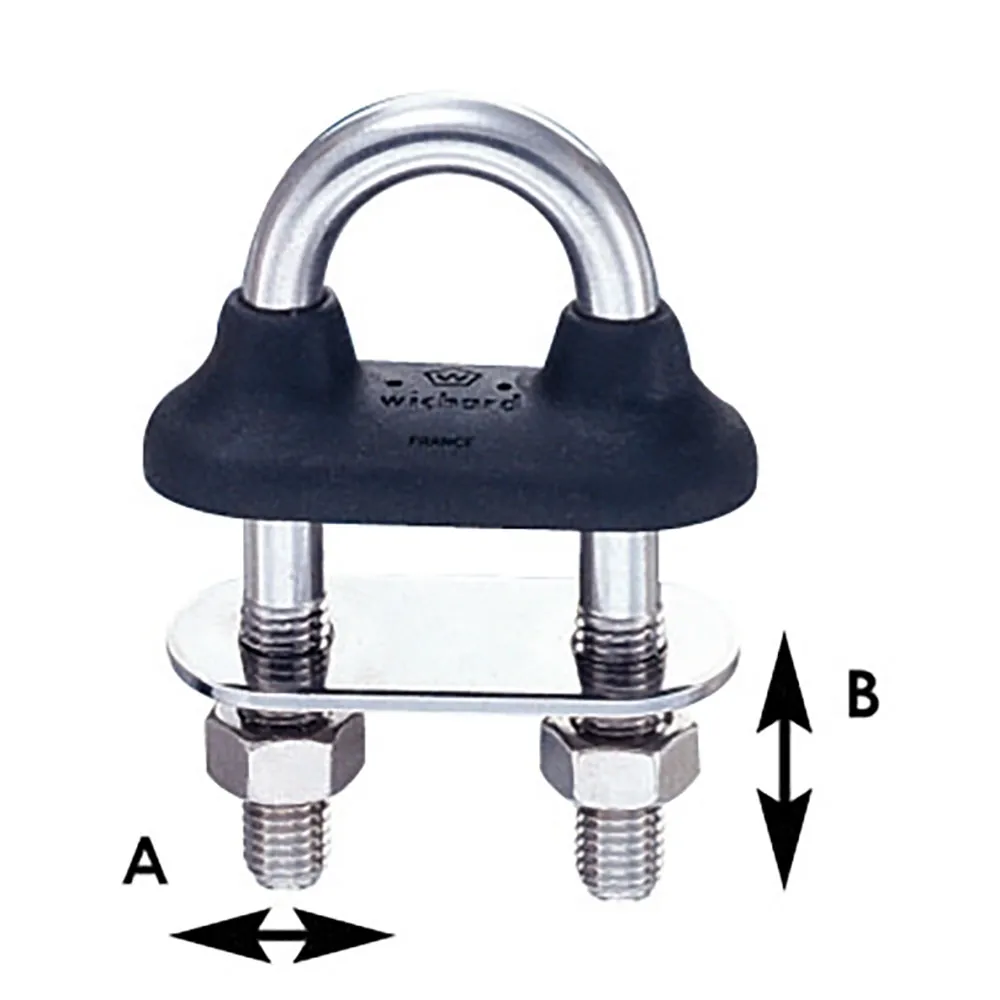

Wichard Watertight u bolt

Accastillage Diffusion offers you a wide range of Wichard brand waterproof chainplates.

These waterproof padlocks feature a black elastomer for optimum watertightness.

The various models are made from 316L stainless steel.

This high-quality material protects against corrosion and provides UV protection.

These chainplates provide an excellent seal and are quick and easy to install.

With their aesthetic design, these tools are intended for various types of fixing, such as guy wires, pulleys, lifelines, etc.

For installation, these chain plates are supplied with locks and a counterplate.

The chainplate range comprises 4 different models with different dimensions.

Each of these models has remarkable working and breaking loads.

Technical specifications:- Model diameter 5mm Height 60cm.

Working load:640kg.

Breaking load:2000kg.

Maximum clamping force:4.5Nm.

- Model diameter 6mm Height 90cm.

Working load:1280kg.

Breaking load:3000kg.

Maximum clamping force:7,5Nm.

- Model diameter 8mm Height 100cm.

Working load:2400kg.

Breaking load:4800kg.

Maximum tightening:18Nm.

- Model diameter 10mm Height 110cm.

Working load:3600kg.

Breaking load:7000kg.

Maximum tightening:36Nm
