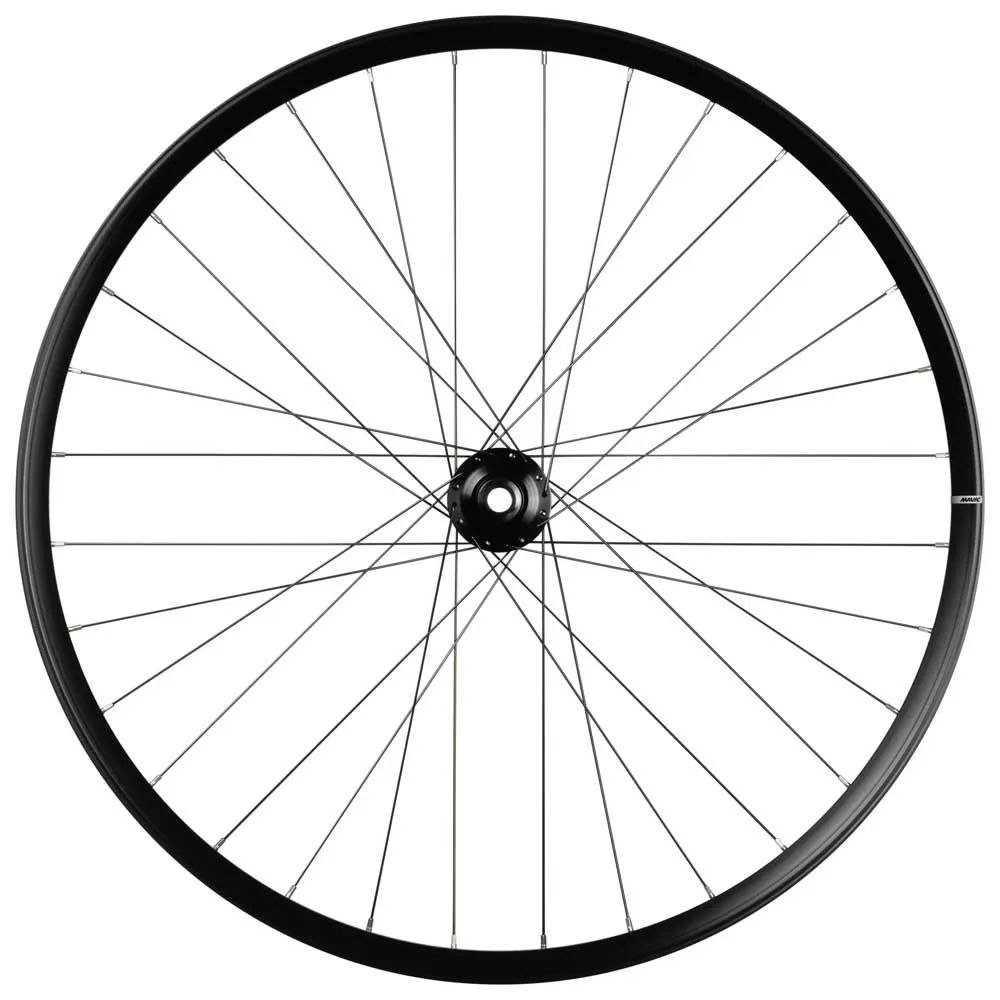

Mavic E-Crossride 1 30 29´´ Boost 6B Disc Tubeless MTB wheel set

Stable and hardwearing, this mountain bike wheel has been specifically developed for use on e-bikes. Optimized spokes and adapted hub material.

Features:

Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures):
- 20% less risk of puncture with PFP. An e-bike specific innovation to significantly reduce the risk of tire cuts and punctures.

QRM Auto bearing preload technology:
- Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Instant Drive 360 freewheel technology:
- The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology:
- Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

E-bike ready New electric toys, new challenges specific solutions:
- Higher torque and added weight have pushed us to rethink the optimization of our wheels to offer e bike enthusiats performance and reliability. Adapted number and shape of spokes, optimized rim thickness, and even different hub materials

ID360: A simple, reliable yet efficient and easily serviceable freewheel system:
- Dual ratchets freewheel system. Choose between 24t for less drag or 40t for quicker engagement. New seal for worry free ride, but in case it´s a tool-free serviceability.

No compromise on reliability:
- Trying to lower the cost of a product is indeed a matter of compromise, but regarding reliability , we make no difference between our Crossrides and some fancier models. The wheels go through the same lab and field test processes.

Specifications:

Rims:
- Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
- Material: S6000 Aluminum
- Braking: Disc
- Height: 21 mm
- Joint: Sleeved
- Internal width: 30 mm
- Profile: Asymmetrical and hookless
- ETRTO size: 622x30TSS
- Drilling: Traditional (front/rear 32 holes)
- Weight Pair: 2220 grams

Spokes:
- Shape: Bent radius, round (front and rear)
- Material: Steel
- Nipples: Steel, ABS
- Lacing: Crossed 3 (front and rear)

Hubs:
- Freewheel technology: Instant Drive 360
- Bearing technology: QRM automatic setting sealed cartridge
- Axle size: Front 15x110 / rear 12x148
- Axle material: Aluminum
- Body material: Aluminium
- Freewheel: Shimano HG MTB / Shimano MS / Single Speed
- Body design: Classic
- Disc standard: 6 Bolts

Intended use:
- ASTM category 3: Cross country
- Maximum weight supported by the wheels: Must not exceed 150 Kg (bike weight included)
- Minimum tyre size: Width 52mm pressure max. 2.35Bar/34PSI
- Maximum tyre size: Width 125mm pressure max. 1.25Bar/18PSI

Compatibility:
- Freewheel body: Convertible Shimano HG MTB steel

In the box:
- User guide
- Rim tape mounted on wheel
