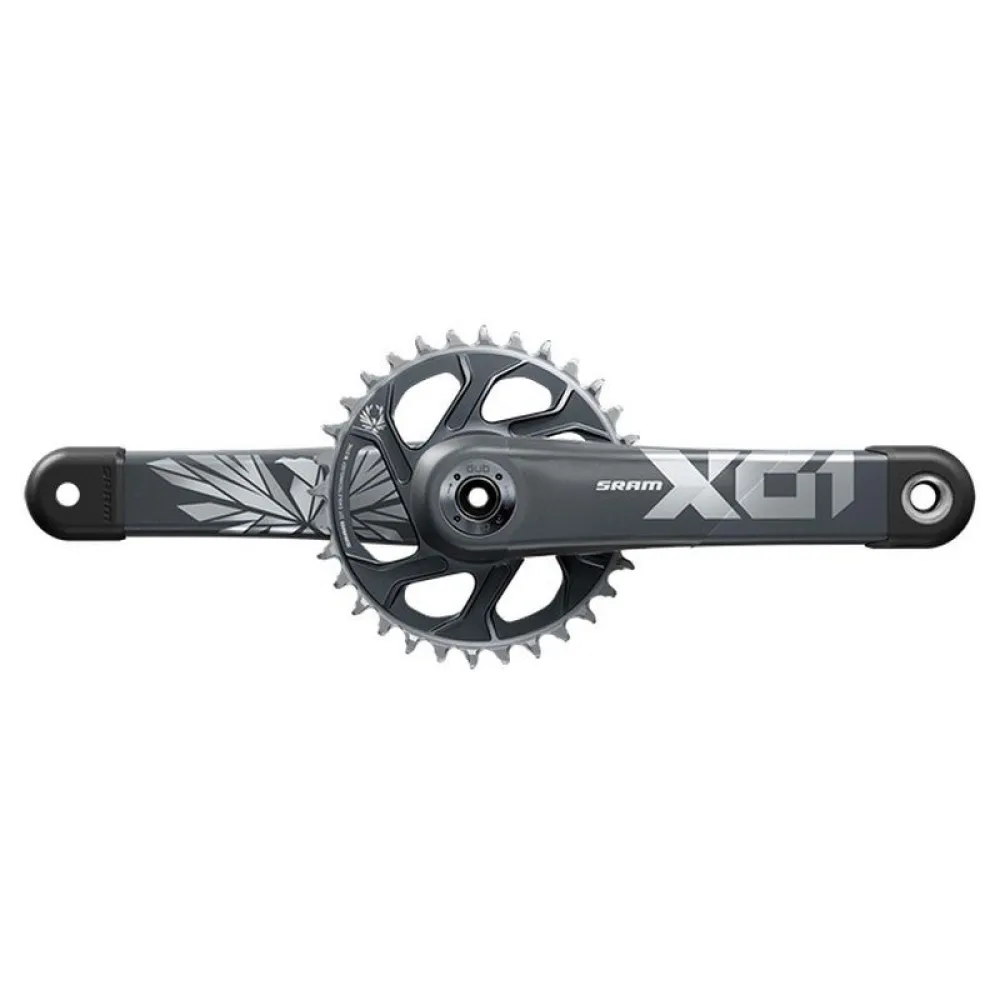

Sram X01 Eagle Boost DUB Direct Mount crankset

Answer of Isham

Hi boss. From what i know. All this chainline depends on your chainring. If im not mistaken this comes with a boost 3mm chainring. Im using it on my dirt jumper so i changed it with a 6mm non boost chainring.

Hi boss. From what i know. All this chainline depends on your chainring. If im not mistaken this comes with a boost 3mm chainring. Im using it on my dirt jumper so i changed it with a 6mm non boost chainring.

Answer of FABRICE

Hello, Look at the identical cranks and even play on the second-hand market because the DUB is a later standard.

Bonjour, Regarde du côté des manivelles identiques quitte à jouer sur le marché d occasion car le DUB est un standard postérieur.

Answer of Bahadir

Hi, these will fit your frame given that you pair it with DUB Pressfit bottom bracket. DUB axle has a 28.99mm diameter.

Hi, these will fit your frame given that you pair it with DUB Pressfit bottom bracket. DUB axle has a 28.99mm diameter.

Answer of Bahadir

This crank has the 3-bolt pattern.

This crank has the 3-bolt pattern.

Answer of Gilles

Yes

Oui

Answer of FABRICE

Hello, the case must be Press fit.

Bonjour, le boîtier doit être Press fît obligatoirement.

Answer of Ralf

No, it is not compatible => Rotor BB Press Fit 4130 has the dimensions: outside 41 inside 30 This crank is DUB, so it needs a DUB bearing => inside 28,99

Nein ist nicht kompatibel => Rotor BB Press Fit 4130 hat die Maße: außen 41 innen 30 Diese Kurbel ist DUB, braucht also ein DUB Lager => innen 28,99

Answer of Andrey

These connecting rods fit the standard BB92 unit. The main thing is that the carriage has a shaft diameter of 28.99 mm

These connecting rods fit the standard BB92 unit. The main thing is that the carriage has a shaft diameter of 28.99 mm

Answer of Benoit

Yes with a SRAM DUB PF 89/92 mm bottom bracket

Oui avec un boîtier de pédalier SRAM DUB PF 89/92 mm

Answer of Elliot

Yes Just needs a sram bb

Yes Just needs a sram bb

Answer of Erik

YES, it is. I have purchased this BOOST cranks X01 and I keep buying “ Sram DUB PressFit 30 MTB 89/92mm” Bottom Bracket. You just won’t use any plastic spacer, which is included in BB. Only what you have watch out is, to buy only BOOST cranks, not BOOST WIDE, because those are few mm wider than BOOST.

YES, it is. I have purchased this BOOST cranks X01 and I keep buying “ Sram DUB PressFit 30 MTB 89/92mm” Bottom Bracket. You just won’t use any plastic spacer, which is included in BB. Only what you have watch out is, to buy only BOOST cranks, not BOOST WIDE, because those are few mm wider than BOOST.

Answer of Benoit

It´s standard SRAM direct mount with 3 screws.

C’est du direct mount standard de SRAM à 3 vis

Answer of Erik

It definitely uses 3 screws for mounting chainring to crank-arm. It’s compatible with wattmeters those glued on arms of cranks or built-in with-in pedals. SRAM has also version with factory built-in wattmeter in cranks, but I’m nit sure how many screws uses that type for mounting chainring (4 or 5).

It definitely uses 3 screws for mounting chainring to crank-arm. It’s compatible with wattmeters those glued on arms of cranks or built-in with-in pedals. SRAM has also version with factory built-in wattmeter in cranks, but I’m nit sure how many screws uses that type for mounting chainring (4 or 5).

Answer of Erik

YES, this here is: https://www.tradeinn.com/bikeinn/en/sram-x01-eagle-boost-dub-direct-mount-crankset/137670775/p Have been riding it and it worked with no issue at all. Same still does my friend. However I found SRAM system more reliable comparing to Shimano. Been riding Shimano XTR and XT for 12 years, now riding SRAM for 2 years and would never come back to Shimano. Only brakes. But mixing componenets of these two brands works with no issue for many people. This will definitely work for you.

YES, this here is: https://www.tradeinn.com/bikeinn/en/sram-x01-eagle-boost-dub-direct-mount-crankset/137670775/p Have been riding it and it worked with no issue at all. Same still does my friend. However I found SRAM system more reliable comparing to Shimano. Been riding Shimano XTR and XT for 12 years, now riding SRAM for 2 years and would never come back to Shimano. Only brakes. But mixing componenets of these two brands works with no issue for many people. This will definitely work for you.

Answer of Boris

Hello, It is a crankset in boost format so chain line in 52 indeed. I bought the same one. Good day.

Bonjour, C´est un pédalier au format boost donc ligne de chaine en 52 effectivement. J´ai acheté le même. Bonne journée.

Answer of Benoit

Hello, yes it is in boost format so 3mm offset

Bonjour, oui c’est au format boost donc 3mm de déport

Answer of FABRICE

Hello, you should make sure that the bottom bracket is DUB compatible

Bonjour, il convient de s assurer que le boîtier de pedalier est compatible DUB

Answer of Alessandro

Certainly. However, you must have the Sram bottom bracket and not Shimano.

Certamente. Devi però avere il movimento centrale Sram e non Shimano.

Answer of Shady

Yeah. It´s compatible. Buy those same ones with a Pressfit MTB 41 x 89.5-92 bottom bracket. And they go perfectly

Si. Es compatible. Compre esas mismas con un pedalier Pressfit MTB 41 x 89,5-92. Y van perfectamente

Answer of Bas

Hi Pascal, if you currently have a SRAM Eagle system on your Stumpjumper it wil fit for sure. I have swapped the aluminium Truvativ crankset on my Stumpjumper for the carbon X01 cranks and couldn’t be happier. Very lightweight and sturdy. I have had lots of pedalstrikes on rocks and roots, but the cranks hold up great.

Hi Pascal, if you currently have a SRAM Eagle system on your Stumpjumper it wil fit for sure. I have swapped the aluminium Truvativ crankset on my Stumpjumper for the carbon X01 cranks and couldn’t be happier. Very lightweight and sturdy. I have had lots of pedalstrikes on rocks and roots, but the cranks hold up great.

Answer of vitor

Yes. Very easy if you have the right tool to do it.

Sim. Muito fácil tendo a ferramenta adequada para o fazer.

Answer of David

The cranks come with the 32 chainring, you can´t ask for another. What you can do is buy the dish you need separately.

Las bielas vienen con el plato 32, no se puede pedir otro. Lo que si podrás hacer es comprar aparte el plato que necesites.

Answer of Muhammad

Yes, it fit well as long your bike is DUB bottom bracket

Yes, it fit well as long your bike is DUB bottom bracket

Answer of javier

I understand that putting its corresponding DUB bottom bracket, you would not have any problem

Entiendo que poniendo su pedalier DUB correspondiente, no tendrías ningún problema

Answer of David

Hello. I have an Epic Expert from 2018 and it is fully compatible. The system should be the same

Hola. Yo dispongo de una Epic Expert del 2018 y es totalmente compatible. El sistema debería ser el mismo

Answer of Andrey

Hello. yes it fits boost

Hello. yes it fits boost

Answer of Kelvin

Yes it fit well, just make sure your frame is a boast frame will do.

Yes it fit well, just make sure your frame is a boast frame will do.

Answer of Andrey

Hi! Do you have a 2021 Canyon Exceed CF 7? Right? Then the boost version is for you.

Hi! Do you have a 2021 Canyon Exceed CF 7? Right? Then the boost version is for you.

Answer of Andrey

Hello! Yes, the boost version will do.

Hello! Yes, the boost version will do.

Answer of Andrey

Your rear hub is 148mm. Yes, it does!

Your rear hub is 148mm. Yes, it does!

Answer of Andrey

Spark 2019 has rear hub is 148mm. Yes, you will fit boost

Spark 2019 has rear hub is 148mm. Yes, you will fit boost

Answer of Andrey

Hello. Not suitable for scott spark 2022 . You need dub wide, and this is standard dub.

Привет. Не подойдет для scott spark 2022 . Тебе нужен dub wide, а это стандартный dub.

Answer of Cedric

Hello, for the length of the cranks it depends on the size of the mountain bike. If the mountain bike is size S or M the crank measures 170mn, L or XL measures 175. Afterwards I invite you to read the various articles on the internet concerning the sizes of mountain bikes, cranks. A mountain bike in the right size, well adjusted to your height, will prevent you from back problems, cervical problems, tendinitis etc etc etc. Regards.

Bonjour, pour la longueur des manivelles c´est fonction de la taille du vtt.si le vtt est de taille S ou M les manivelle mesure 170mn, L ou XL mesure 175. Apres je vous invite à lire les différents articles sur internet concernant les tailles de VTT , de manivelles . Un VTT à la bonne taille ,bien réglé à votre hauteur vous évitera des problèmes de dos ,cervicales ,tendinites etc etc etc .Cordialement.

Answer of Jaume

If it lets you select the 175 option, it will be because there are stocks, there are other cranks that do not give the double option.

Si te deja seleccionar la opción de 175 será porque hay existencias, hay otras bielas que no da la doble opción.

Answer of Julien

Hello, the axis of the super boost is 3mm longer than the classic boost. Some frames use super boost (for example the scott scale, the one with integrated shock).

Bonjour, l´axe du super boost est 3mm plus long que le boost classique. Certains cadres utilisent le super boost (par exemple le scott scale, celui avec amortisseur intégré).

Answer of antoine

Hello normally yes check dub bottom bracket

Bonjour normalement oui vérifier le boîtier de pédalier dub

Answer of Julien

Hello, I just checked, the five 2017 is in boost so no problem on that side. But it seems to be not mounted with a dub bottom bracket, in this case it will be necessary to change the bottom bracket.

Hello, I just checked, the five 2017 is in boost so no problem on that side. But it seems to be not mounted with a dub bottom bracket, in this case it will be necessary to change the bottom bracket.
