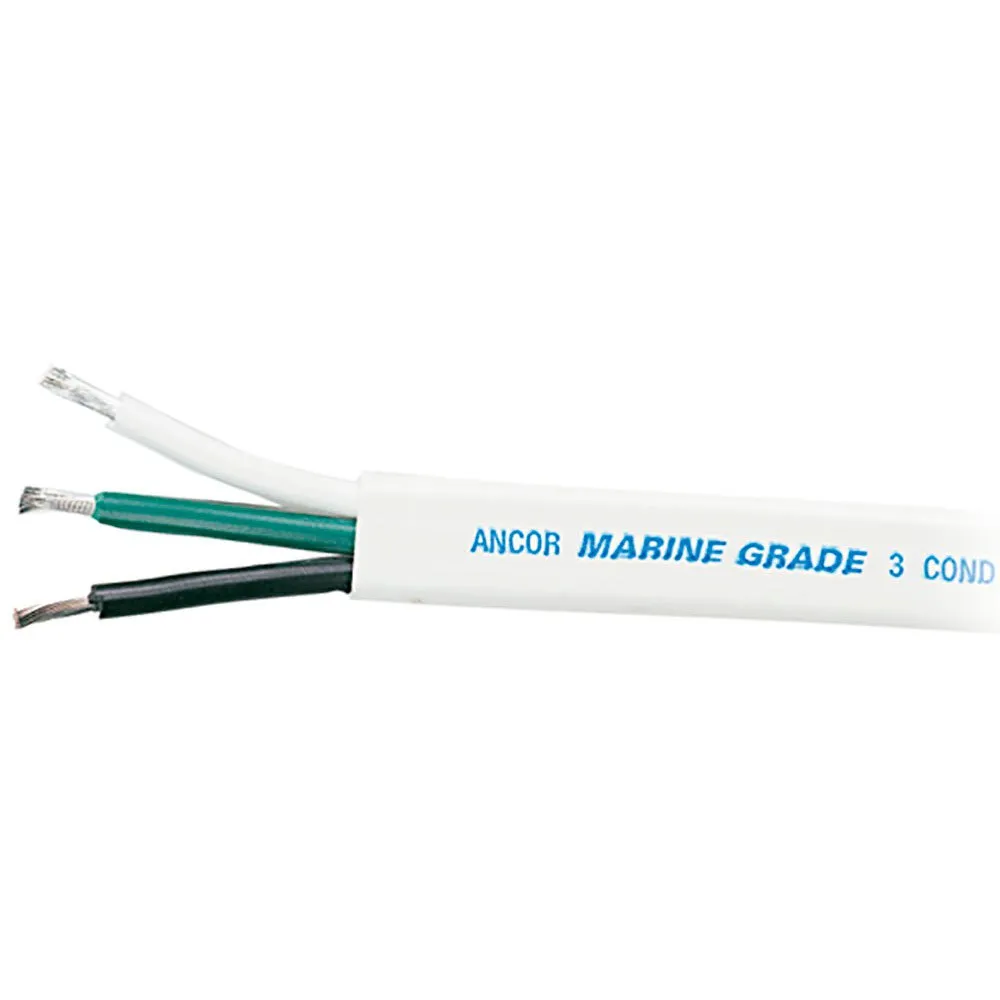

Ancor Marine Grade Tinned Copper Triplex Flat Cable 16/3

ANCOR Marine Grade Tinned Copper Triplex Flat Cable 16/3

Experience the pinnacle of marine electrical safety and performance with the ANCOR Marine Grade Tinned Copper Triplex Flat Cable 16/3. Engineered as the definitive wiring solution for your boat´s AC electrical systems, this cable is meticulously designed to thrive in the harsh and unforgiving marine environment. When failure is not an option, professionals and boat owners alike trust ANCOR to deliver unparalleled reliability and longevity for all critical onboard wiring.

Unlike standard terrestrial cables, this triplex flat cable is purpose-built to combat the constant threats of vibration, moisture, salt spray, and extreme temperature fluctuations. Its robust construction ensures a stable and secure power supply for your vessel´s essential AC circuits, providing peace of mind whether you are docked at the marina or navigating open waters. The flat design facilitates clean and organized installations, easily running through tight bulkheads and channels where space is at a premium, making it ideal for both new builds and complex rewiring projects.

Unmatched Durability and Performance

Every detail of this cable is crafted to meet and exceed the most rigorous industry benchmarks, guaranteeing exceptional performance and safety that you can depend on.

Made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.

Outer jacket is made for easy removal and provides the best abrasion resistance available.

ANCOR´s proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water battery acid oil gasoline and ultra-violet radiation.

Exclusive insulation is rated at 600 volts 105º C dry and 75º C wet.

Inner conductors are correctly color-coded to ABYC standards Black/Green/White.

Attributes and Technical Specifications
* Product Attribute: Cables
* Product Type: Marine Grade Triplex Flat Cable
* Gauge: 16 AWG
* Number of Conductors: 3
* Stranding: Ultra Flexible Type 3/Class K
* Voltage Rating: 600V
* Insulation Temperature Rating (Dry): 105° C
* Insulation Temperature Rating (Wet): 75° C
* Safety Standards: Surpasses UL 1426 Boat Cable
* Conductor Color Code: ABYC Compliant (Black/Green/White)
* Environmental Resistance: Salt water, battery acid, oil, gasoline, UV radiation, extreme cold

Choose the ANCOR 16/3 Triplex Flat Cable for your next marine electrical project and invest in the highest standard of safety, durability, and performance. It is the ideal choice for powering AC outlets, appliances, and other critical systems on your boat, ensuring a professional-grade installation that will last for years to come
