Simrad Forwardscan Long Stem

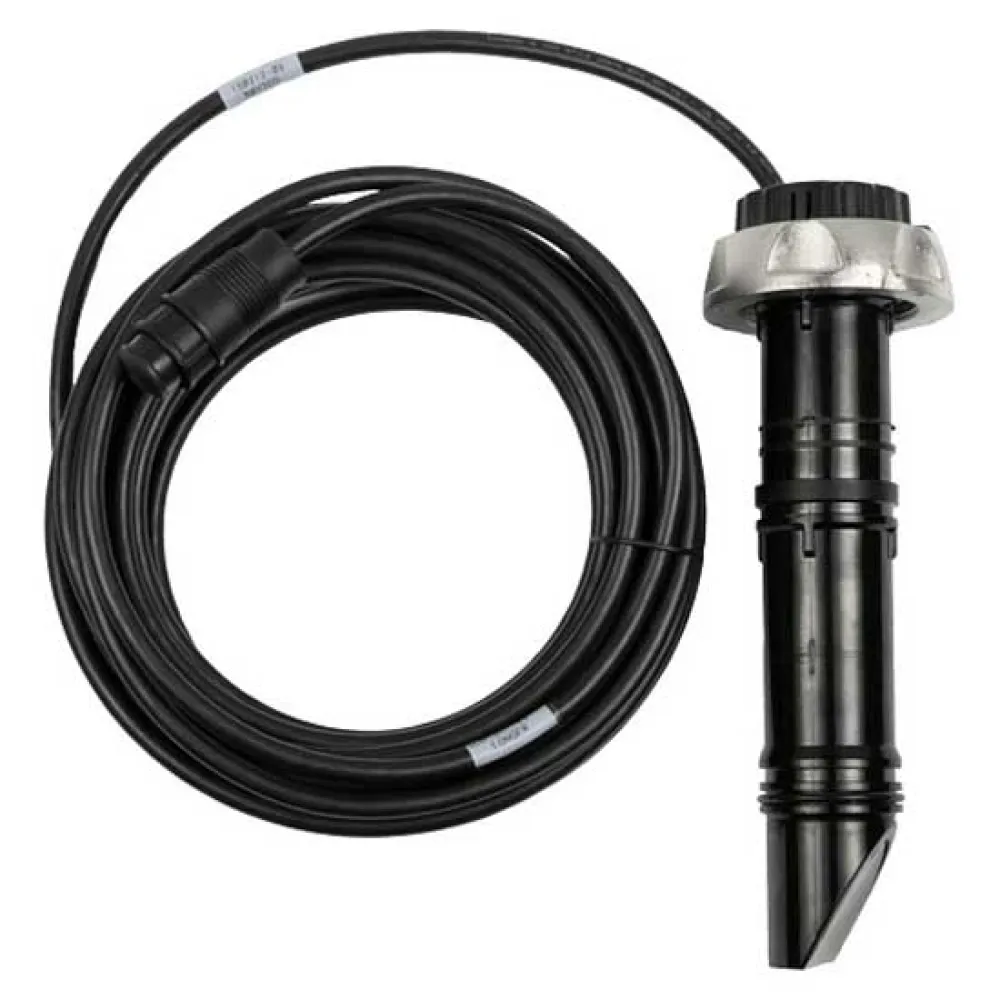

ForwardScan Long Stem Transducer

Part # 000-13284-001
Know what lies ahead with Simrad ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

The ForwardScan Long Stem Transducer is compatible with Simrad NSS evo2, NSO evo2, and GO XSE displays, and is ideal for installation in thick or steeply-inclined hulls.

Key Features
- Easy to use
- Forward-looking 2D sonar imaging
- Bottom Colour Tracking for a simplified bottom view
- Heading Line View combines ForwardScan depth data into heading line on charts
- Shallow depth alarm
- Maximum forward view of 8X current depth, nominally 4-5X current depth
- Operates at 180 kHz, reducing interference from traditional 200 kHz echosounders
- Built-in temperature sensor
- 50.8 mm (2 inch) stainless steel through-hull fitting
- Connects directly to Simrad GO XSE, NSS evo2, or NSO evo2 via SonarHub sounder module
- Long-stem design for use with thick or steeply-inclined hulls

Simrad ForwardScan sonar was named winning Consumer Safety Equipment at the 2015 Miami International Boat Show Innovation Awards. “The best way to stay safe is to not hit anything in the first place!” – judging committee member David Schmidt, Boating Writers International.

Simrad ForwardScan Technology
ForwardScan provides forward-looking, two-dimensional sonar imaging of the bottom ahead of your boat. In shallow, unfamiliar, or poorly-charted waters, ForwardScan is a powerful defence against running around, and an invaluable tool for locating secure sites to drop anchor.

The ForwardScan transducer operates at 180kHz to reduce interference from traditional 200kHz echosounders, and provides:

Maximum forward view of 8X your current depth
e.g. at 3m (10ft) depth, see up to 24m (80ft) ahead.

Nominal forward view of 4-5X your current depth
e.g. At 3m (10ft) depth, see 12-15m (40-50ft) ahead.

Simrad NSS evo2/NSO evo2 MFD Integration
ForwardScan connects quickly and easily to any Simrad NSS evo2 multifunction display via the StructureScan port, with no additional hardware necessary. On NSO evo2 modular systems, or NSS evo2 systems already using StructureScan, ForwardScan may be connected via an optional Simrad SonarHub sounder module.

Bottom Colour Tracking
Bottom Colour Tracking offers a solid 2D rendering of the bottom ahead of your vessel for an uncluttered, immediately understandable view. Make fast and well-informed navigational decisions, without needing to interpret the individual data points returned by the echosounder.

Simrad ForwardScan Technology
ForwardScan provides forward-looking, two-dimensional sonar imaging of the bottom ahead of your boat. In shallow, unfamiliar, or poorly-charted waters, ForwardScan is a powerful defence against running around, and an invaluable tool for locating secure sites to drop anchor.

ForwardScan’s forward range scale is automatically synchronised with the length of the heading line: in split-screen ForwardScan/Navigation view, the full distance from your vessel to the end of the heading line is represented in 2D on the ForwardScan display. Quickly reconcile ForwardScan data with charted depth and your present course, for a comprehensive understanding of what’s ahead.

Easy Installation

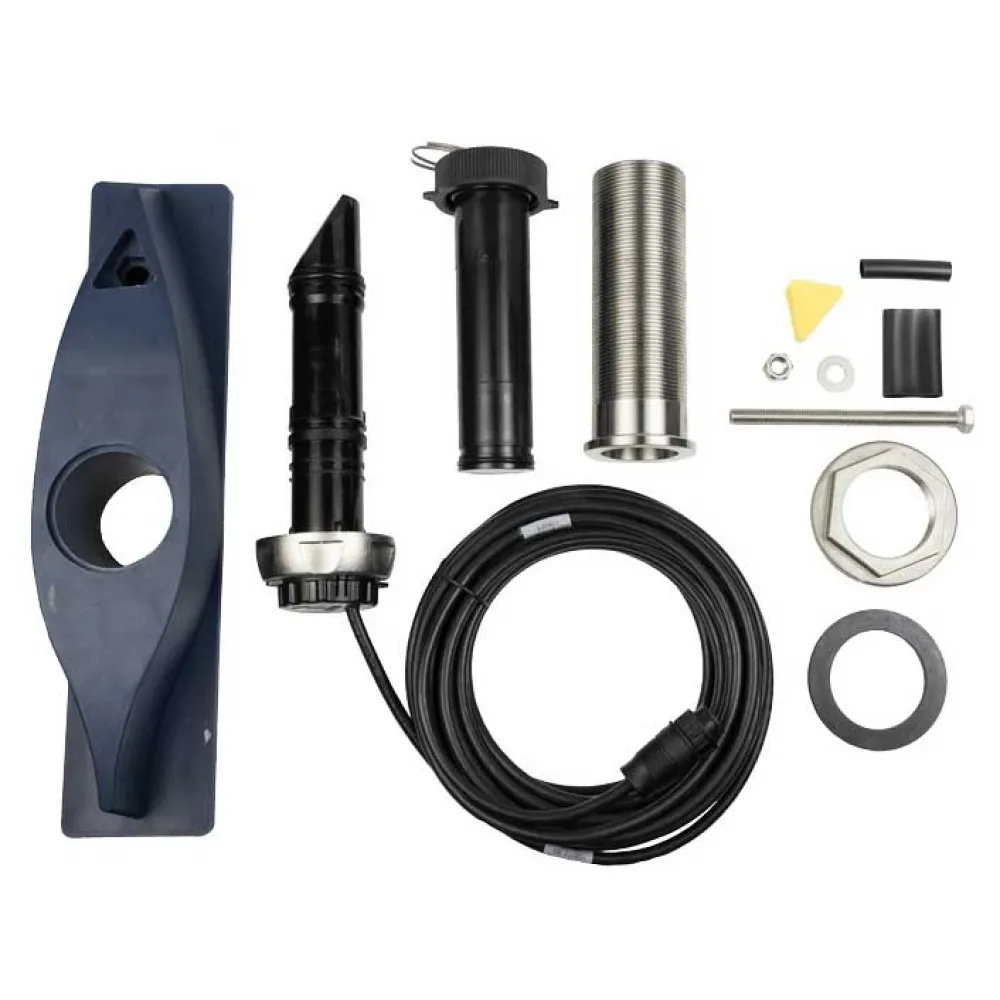

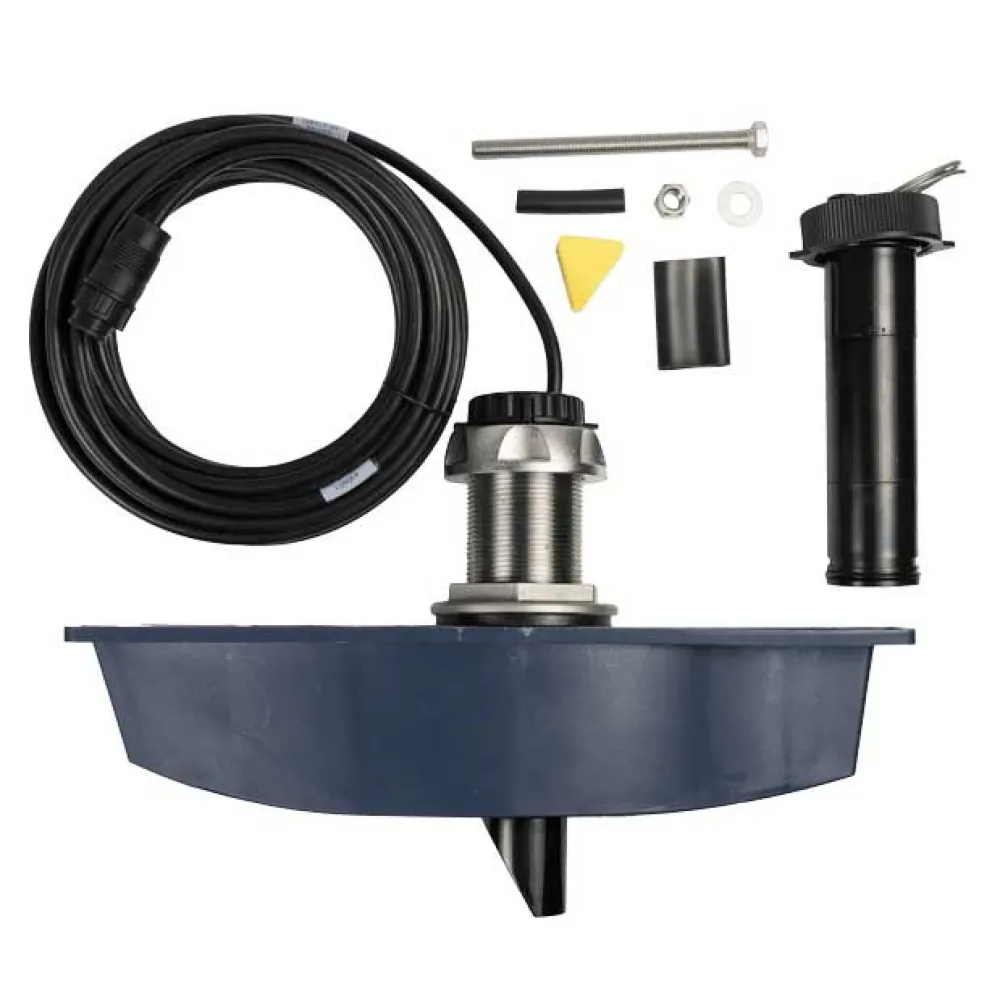

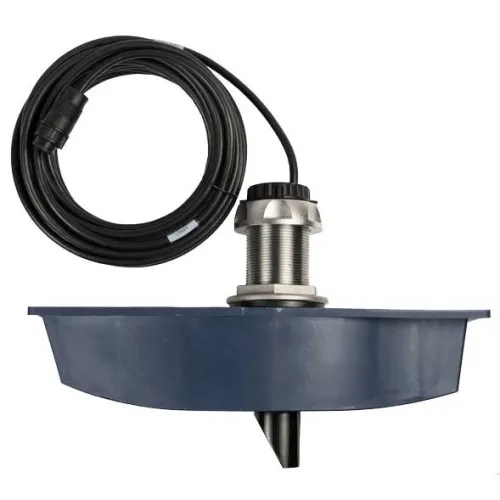

The ForwardScan Long Stem Transducer features an extended stainless steel through-hull mount and specially designed fairing block to accommodate hulls up to 47.6 mm (1 7/8 inch) in thickness and up to 28 degrees dead rise.
