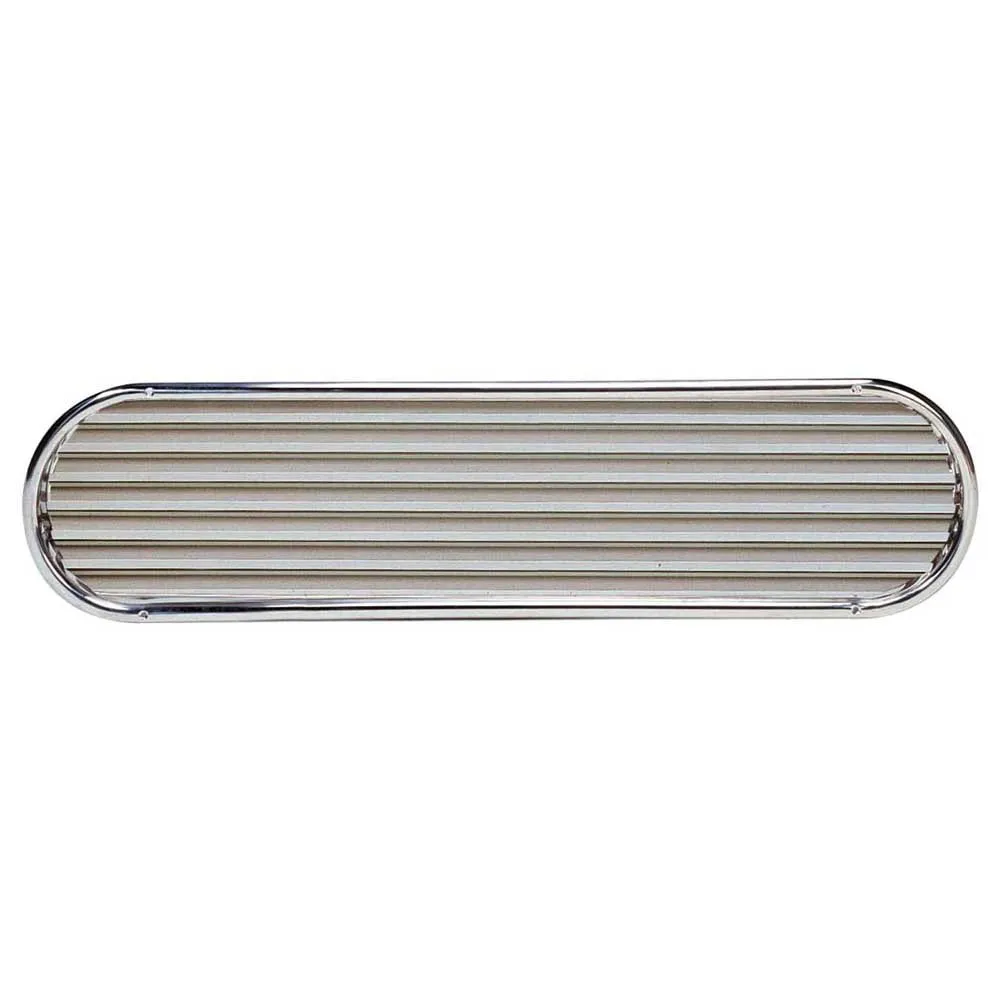

Vetus SSV Air Vent

VETUS SSV Stainless Steel Air Vent | Premium Marine Ventilation

Ensure optimal performance and safety for your vessel´s engine room with the VETUS SSV Air Vent, the pinnacle of marine ventilation design. Engineered for boaters who demand both uncompromising functionality and superior aesthetics, the SSV series provides the essential airflow your engine needs to operate efficiently and reliably. Proper ventilation is critical for preventing engine overheating, reducing fuel consumption, and ensuring the safe dissipation of potentially hazardous fumes. The VETUS SSV vent is the definitive solution, blending robust construction with a sleek, modern appearance that enhances the exterior of any boat.

The primary benefit of the VETUS SSV is its ability to deliver a high volume of clean air directly to your engine compartment. This consistent airflow helps the engine achieve complete combustion, leading to improved power output and better fuel economy. By maintaining an optimal operating temperature, it also extends the life of your engine and associated components. Furthermore, its intelligent design provides excellent protection against water ingress, ensuring your engine room stays dry even in challenging sea conditions.

Choosing the correct vent has never been easier. VETUS has simplified the selection process by directly linking the model number to your engine´s power. The model number of each SSV vent relates to the maximum engine horsepower for which it is suitable, removing guesswork and guaranteeing you get the right ventilation capacity for your specific setup.

Main Features:

* Elegant and Durable Design: The frame is crafted from high-gloss polished AISI 316 stainless steel, offering maximum corrosion resistance and a stunning, mirror-like finish that withstands the harsh marine environment.
* High-Performance Grille: The integrated grilles are made of naturally anodised aluminium, providing a durable and stylish finish that complements the stainless steel frame while ensuring maximum airflow.
* Simplified Sizing: The intuitive model numbering system corresponds directly to engine horsepower, ensuring you select the perfect vent for your boat´s power plant.
* Optimised Airflow: Meticulously designed to provide the necessary free flow area required for modern marine engines, promoting peak performance and safety.
* Easy Integration: Features a standard-sized hose connection flange on the back for straightforward installation with common marine ventilation ducting.

Technical Specifications

Attribute: Vents

General:
* Frame Material: High-gloss polished stainless steel (AISI 316)
* Grille Material: Naturally anodised aluminium

Model: VETUS SSV090
* Suitable for Engine Power: Up to 90 hp (66 kW)
* Cutout Dimensions (L x W): 383x108 mm
* Overall Dimensions (L x W): 407x132 mm
* Hose Connection Diameter: Ø 76 mm
* Free Flow Area: 86 cm²

Model: VETUS SSV125
* Suitable for Engine Power: Up to 125 hp (92 kW)
* Cutout Dimensions (L x W): 483x128 mm
* Overall Dimensions (L x W): 507x152 mm
* Hose Connection Diameter: Ø 90 mm
* Free Flow Area: 120 cm²

Model: VETUS SSV200
* Suitable for Engine Power: Up to 200 hp (147 kW)
* Cutout Dimensions (L x W): 483x178 mm
* Overall Dimensions (L x W): 507x202 mm
* Hose Connection Diameter: Ø 127 mm
* Free Flow Area: 193 cm²

Model: VETUS SSV350
* Suitable for Engine Power: Up to 350 hp (257 kW)
* Cutout Dimensions (L x W): 583x228 mm
* Overall Dimensions (L x W): 607x252 mm
* Hose Connection Diameter: Ø 152 mm
* Free Flow Area: 337 cm²

Upgrade your boat´s ventilation system with the VETUS SSV Air Vent—an essential investment in performance, safety, and style
