VICTRON ENERGY Ekrano GX: The Ultimate System Controller for Advanced Power Management

Elevate your energy system to the next level with the Victron Energy Ekrano GX, the most powerful and intuitive GX device to date. As the central hub of your entire power installation, the Ekrano GX provides comprehensive control and monitoring for a wide array of applications, including marine, off-grid, backup, and mobile energy systems. It combines the full functionality of the Victron GX family with an integrated 7-inch touchscreen display and an extensive range of connectivity options, making it the premier choice among advanced system Controllers.

The Ekrano GX is engineered to simplify complexity. At a glance, you can instantly see the status of your batteries, inverters, solar chargers, and other connected components on the crisp, high-resolution touchscreen. Its intuitive graphical interface allows you to navigate settings, view historical data, and make real-time adjustments with ease, eliminating the need for separate monitors and interfaces. This all-in-one design is perfect for flush panel mounting, creating a clean, professional finish on any dashboard or electrical panel.

Key Benefits:

* Complete System Command: Gain unparalleled insight and control over your entire Victron Energy system. Monitor battery state of charge, power consumption, PV harvest, and generator status from a single, centralized point.
* Intuitive Touchscreen Interface: The integrated 7-inch waterproof display provides a rich, user-friendly visual experience. Easily navigate menus, configure settings, and analyse system performance with simple touch gestures.
* Unprecedented Connectivity: With an unmatched array of communication ports, the Ekrano GX is built to handle the most demanding and complex system installations without the need for multiple adapters.
* Powerful Remote Management: Connect the Ekrano GX to the internet via Wi-Fi or Ethernet and unlock the full potential of the free Victron Remote Management (VRM) portal. Monitor, control, and configure your system from anywhere in the world, receive alerts, and perform remote firmware updates.
* Future-Proof Performance: As the successor to the popular Cerbo GX, the Ekrano GX boasts a significantly more powerful quad-core CPU and increased memory, ensuring smooth operation and the capacity to manage even larger and more sophisticated energy systems for years to come.

Main Features:

* Integrated 7-inch touchscreen display for direct control and monitoring.
* Built-in Wi-Fi and Bluetooth Smart for easy setup and wireless connectivity.
* Extensive I/O for comprehensive system integration.
* Remote Console on VRM and through the local network.
* Automatic Generator start/stop functionality based on multiple conditions.
* Full integration with third-party devices, including NMEA2000-compatible MFDs.
* Robust data logging capabilities, both internally and on the VRM portal.
* IP54 rating when flush mounted with the included gasket.

Technical Specifications:

* VE.Can: 2 x RJ45 ports (isolated)
* VE.Bus: 2 x RJ45 ports
* VE.Direct: 5 x ports (non-isolated)
* USB: 2 x Host ports
* Ethernet: 1 x RJ45 port (10/100/1000 Mbps)
* Wi-Fi: 802.11 b/g/c (2.4/5 GHz)
* Bluetooth: v4.2 (for VictronConnect setup)
* Programmable Relays: 2 x K1/K2
* Digital Inputs: 4
* Tank Level Inputs: 4
* Temperature Sense Inputs: 2
* Display: 7-inch touchscreen (1024x600 resolution)
* Storage: MicroSD card slot for data expansion
* Input Voltage Range: 8 – 70 VDC

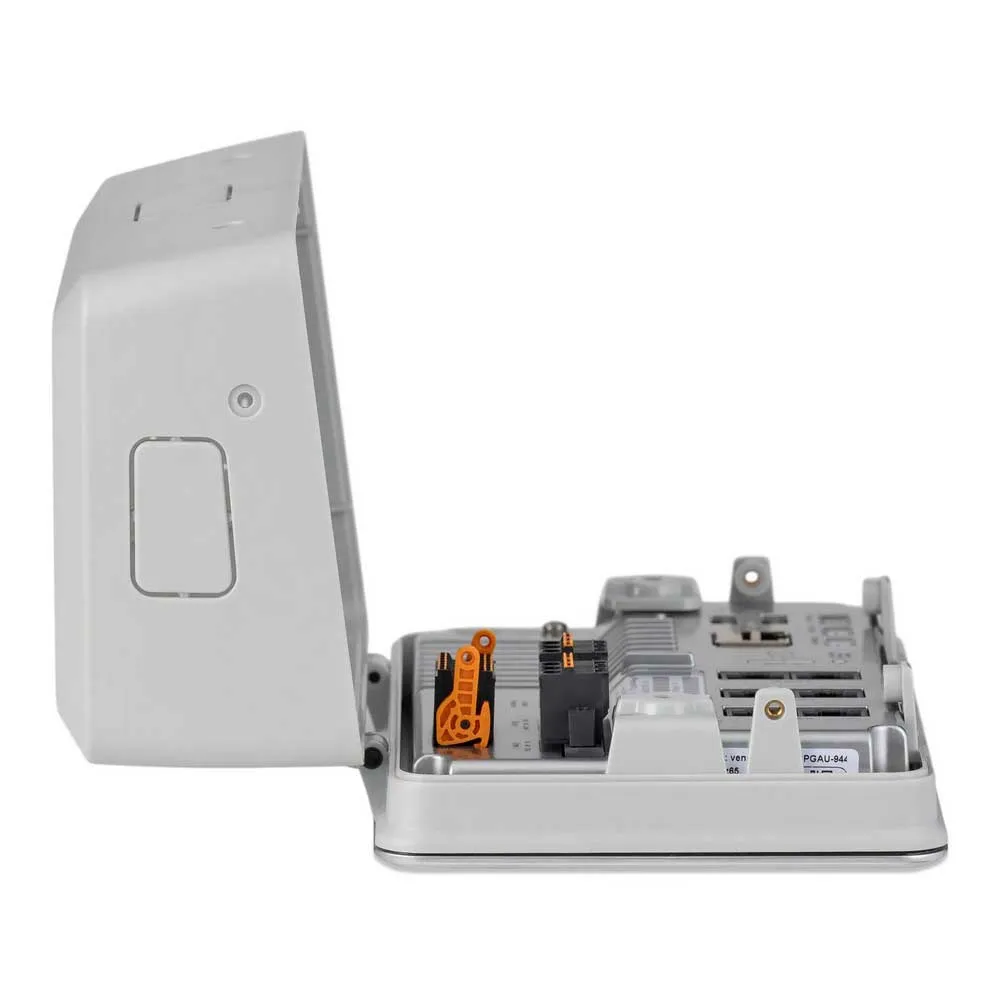

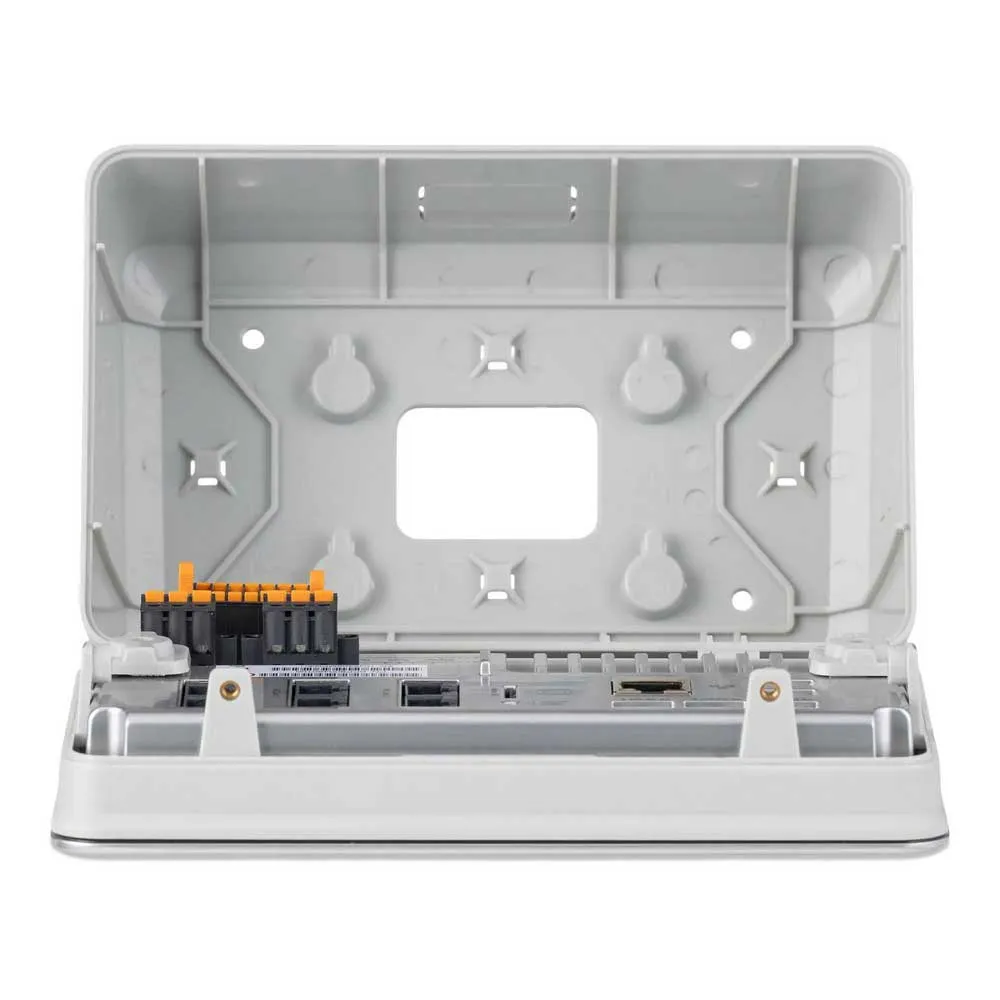

* Mounting: Flush panel mount or bracket mount (bracket sold separately)
* Protection: IP54 (front, when properly mounted)

Take command of your energy system with the unmatched power, connectivity, and clarity of the Victron Energy Ekrano GX Controller—the definitive brain for your modern power installation
