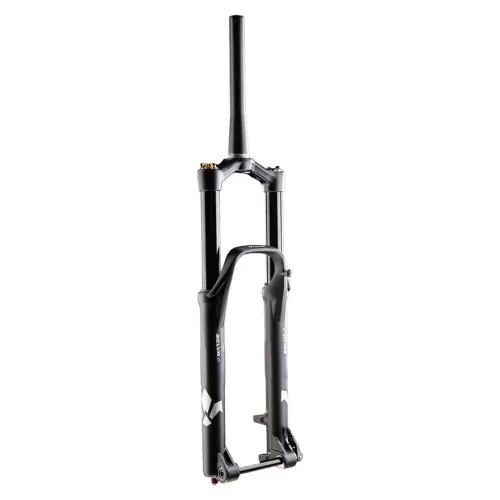

Formula Selva C MTB Fork

Coil spring is a matter of feeling. A fork with a coil spring is neither better nor worse than an air fork, it’s just different. The small bumps compliance of a coil spring fork is unmistakable, its linear behavior is very distinctive. If these are the things you are looking for, the Selva C is your address, a set-and-forget beast.

The Selva C has the same damping as the other models of the Selva family: compression, CTS (Compression Tuning System) with interchangeable valves, rebound, lock-out, and lock-out threshold. On the elastic side, you can choose between 4 different coils: soft, medium, firm, and super firm. The spring preload can be adjusted externally through the knob on the right side of the fork.

With the Selva C, we combined the ease of use and the feeling of the coil spring with the tunability of the CTS system, which allows almost unlimited configurations of the compression curve.


Specifications:

Geometry:
- Axle to Crown (Standard): 550mm +/- 5mm at 160mm of travel
- Fork Offset (Rake): 37mm
- Max Rotor Size: 220mm

Steerer Tube:
- Size: Tapered 1 1/8” - 1.5”

Crown:
- Material: Hollow Forged Aluminum

Lowers:
- Dropout: 15QR BOOST (Standard) / 20QR BOOST (Option)
- Axle: Integrated Locking System (ILS): 15QR or 20QR

Stanchions:
- Diameter (Ø): 35mm
- Material: 7075 Aluminum

Adjustments:
- Rebound: 21 Click Adjustment
- Compression: High and Low Speed 12 Click Adjustment
- Compression Tuning System: Gold and Blue valves included (other valves optional)
- Lockout: Crown mounted
- Remote Cartridge Control: Optional

Other Features:
- Damping: Drop-In Cartridge with Internal Floating Technology
- Coil Spring Load: Hyper Soft / Super Soft, Soft, Medium (default), Firm, Super Firm
- Mechanical spring: Steel
- Spring preolad: 10 click adjustment

Weight:
- Standard: 2.230 gr

Travel:
- Standard: 160mm


Technology:

Hexagon Design:
- The ability of a fork to resist flexing is a key factor for maximum riding precision. A fork that rebounds too fast may make riding unsafe with an overall lack of control, above all when braking and cornering. In the same way, it is important that the fork is not too stiff, because it may make riding too tiring. When designing the Selva C we had a fundamental aim in mind, finding the perfect balance point between stiffness and flex, this is the same as our standard forks. Thanks to the Hexagon Design, the natural flex of the fork has been dramatically decreased with this lightweight method. In this way, we have managed to combine the advantages of the standard boost with the stiffness of a traditional fork.

Remote Cartridge Control:
- Remote Cartridge Control is an on-the-fly sytem that finely tunes the overall compression. In most of the forks, tuning options must be done on the fork itself or remotely by a mechanical cable rotating a knob. With our RCC, we took a completely different approach: a remote adjustment that becomes integrated into the cartridge. We give the riders the opportunity to adjust the overall compression on the trail, while riding, right from the cockpit. With RCC, the fine tuning of overall compression is controlled by 13 different positions, from fully open to locked out.

Internal Floating Technology:
- The IFT (Internal Floating Technology) is what truly differentiates our forks from any other fork. Smoothness is very important in terms of suspension performance. After many tests on stanchion coatings, we now know that they have a minimal effect on reducing friction. With the IFT we wanted to approach this aspect from a very different point of view. All forks, regardless of their stiffness, experience some kind of lateral stress while riding. This type of stress increases the friction of the internal parts. Thanks to Formula’s design, our hydraulic cartridge is structurally merged with the stanchions and lower legs. In a riding situation, our internals compensate for the external stresses placed on the fork. This causes an incredible reduction of friction.

Integrated Locking System:
- ILS (Integrated Locking System) completely improves the thru-axle design. The lever is easily removable for re-insertion at virtually any position. The ILS can be used on a rear axle that requires a tool for removal. On top of that, the ILS is designed to prevent overtightening of the front axle, making wheel removal quick and simple. For our weight freak friends, the ILS can be removed without affecting the functionality of the thru-axle.

Compression Tuning System:
- Tuning your fork has never been so straight-forward. With CTS you can fine tune your suspension quickly with extreme accuracy. You decide what’s the best setting for you and your fork, choosing among 8 different behaviors. You set it up by yourself in five minutes, in your workshop. Freedom is now in your hands.
