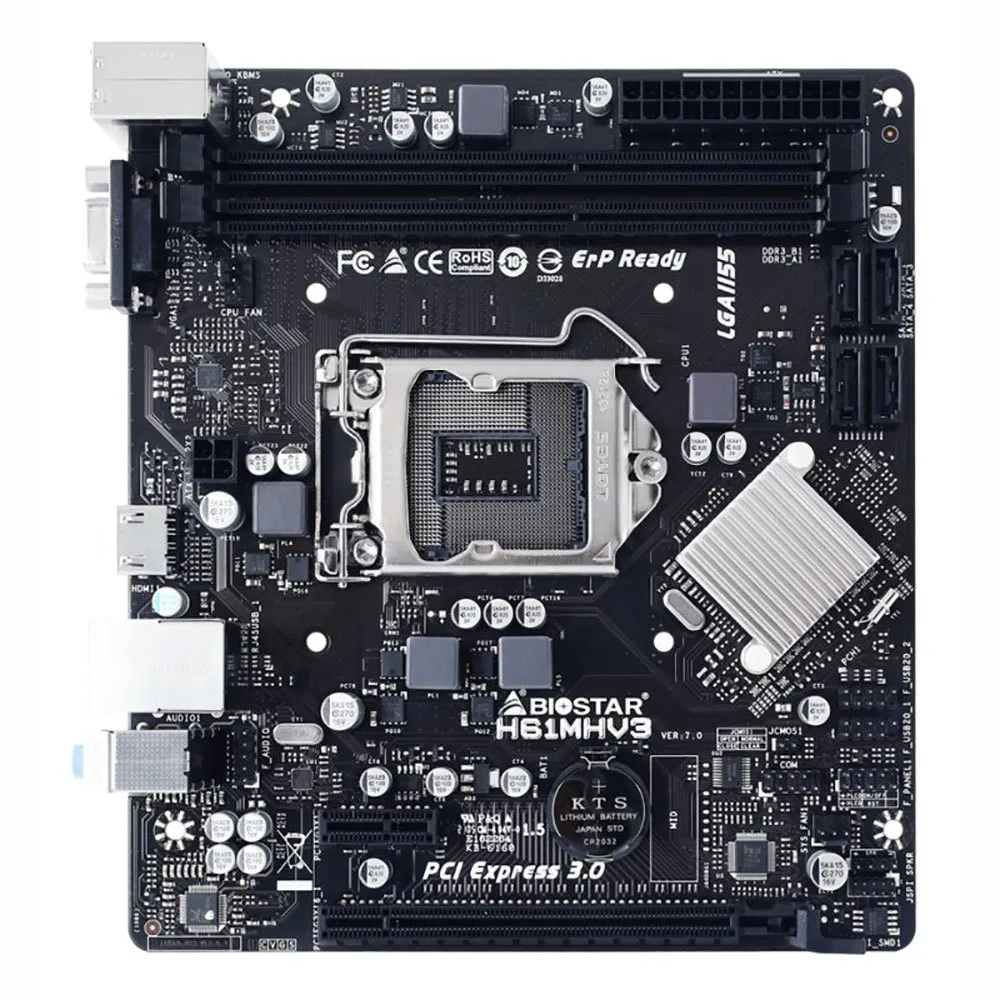

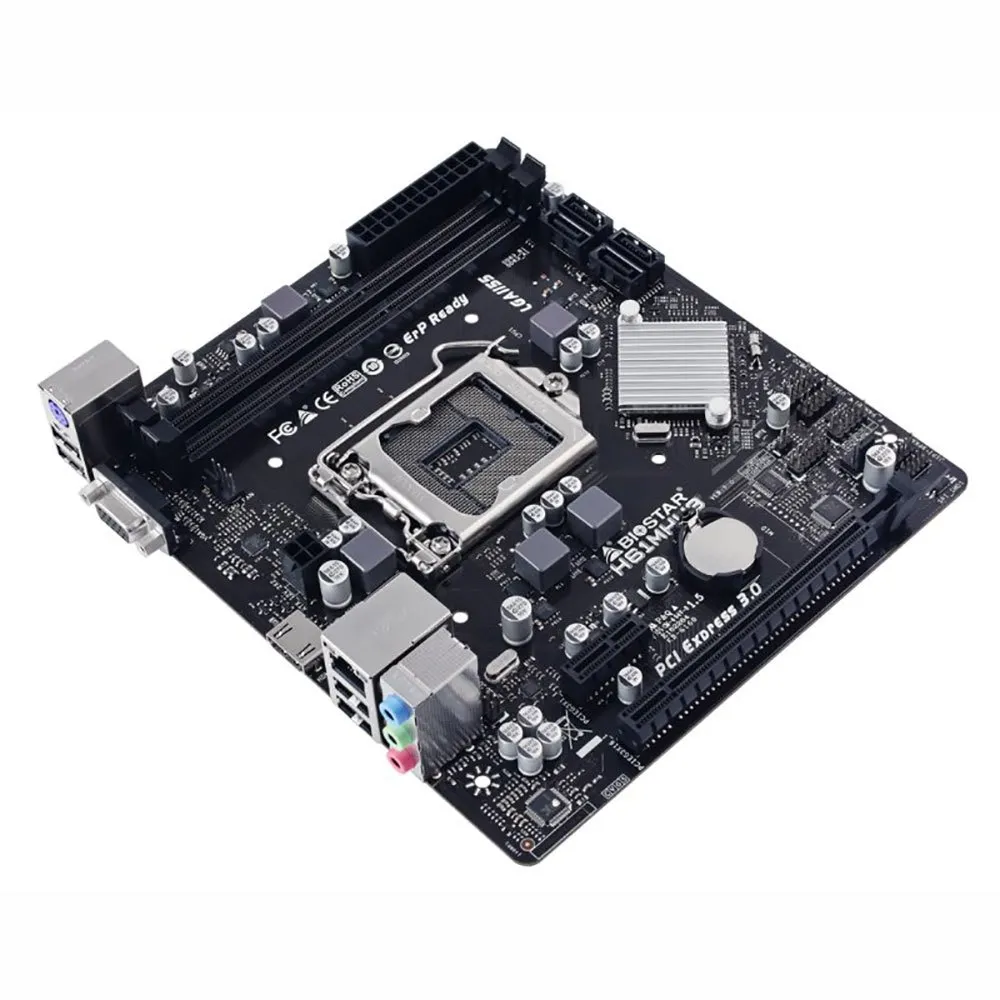

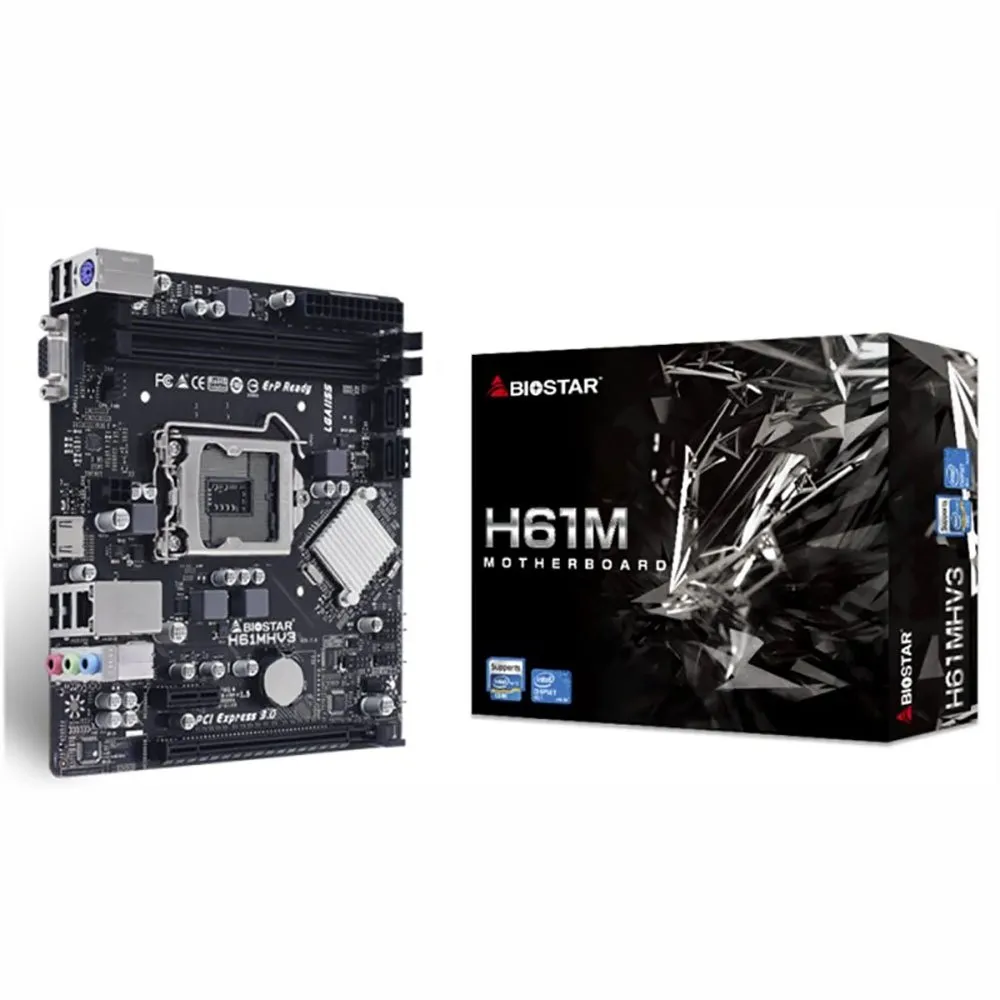

Biostar Placa base H61Mhv3

Marca biostar modelo h61mhv3 plataforma - micro atx (17cm x 19.

1cm) chipset - intel h61 cpu - support intel core i7 - i5 - i3 processors and intel pentium processors - intel celeron processors in the lga1155 package memoria - supports dual channel ddr3 1066 - 1333 - 1600 - 2 x ddr3 dimm memory slot - max.

Supports up to 16 gb memory - each dimm supports non - ecc 512mb - 1 - 2 - 4 - 8 gb ddr3 module ddr3 1600 memory module (depending on cpu) slots expansión - 1 x pcie 2.

0 x1 - 1 x pcie 3.

0 x16 slot (x16 mode - depending on cpu) puertos e - s - conectores internos - 4 x sata ii (3gb - s) - 2 x usb 2.

0 headers (each header supports 2 usb 2.

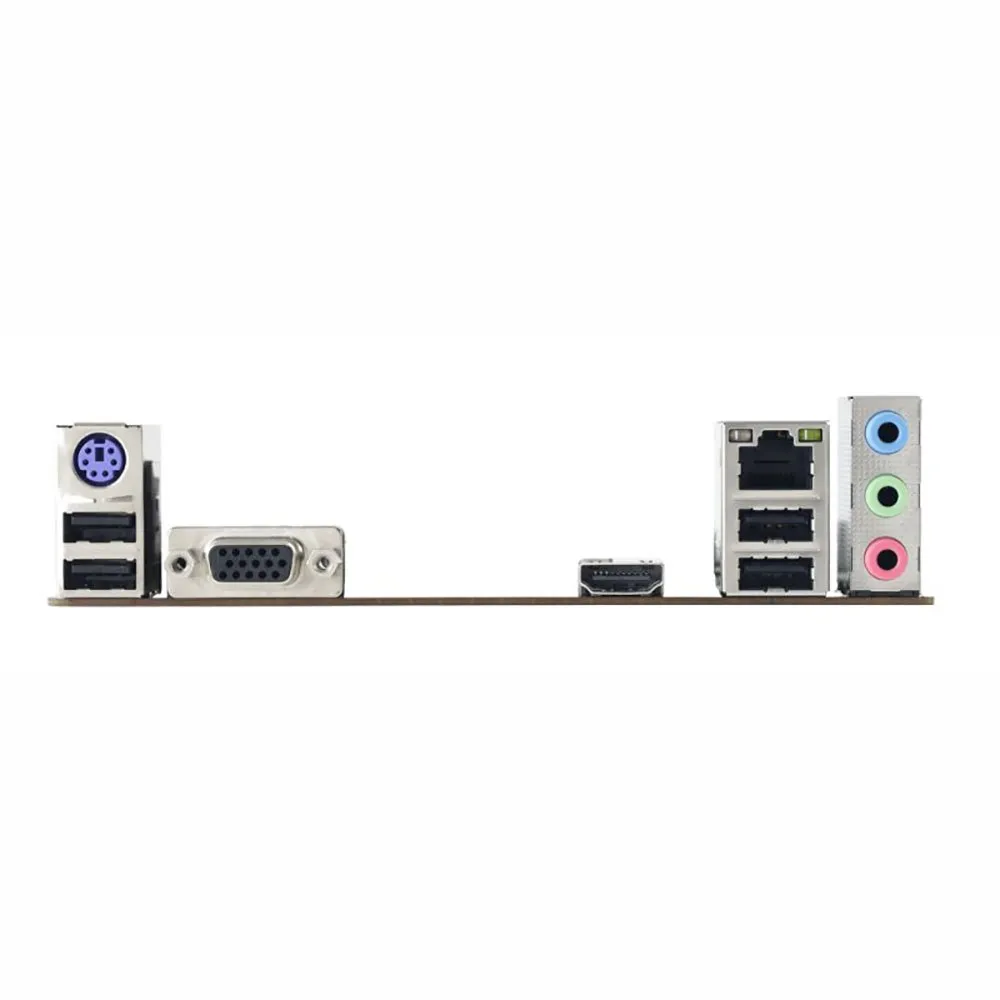

0 ports) - 1 x 4 - pin power connector - 1 x 24 - pin power connector - 1 x cpu fan connector - 1 x system fan connector - 1 x front panel header - 1 x front audio header - 1 x internal stereo speaker header - 1 x clear cmos header - 1 x com port header traseros - 1 x ps - 2 keyboard - mouse - 1 x vga port - 1 x hdmi port - 4 x usb 2.

0 ports - 1 x lan port - 3 x audio jack otras características almacenamiento - 4 x sata ii (3gb - s) lan - realtek rtl8111h - 10 - 100 - 1000 mb - s auto negotíatión - half - full duplex capability audio - alc897 - 7.

1 channels - high definitión audio usb - 8 x usb 2.

0 port (4 on rear i - os and 4 via internal headers) so soportados - supports windows 7 - 8 - 8.

1 - 10.
