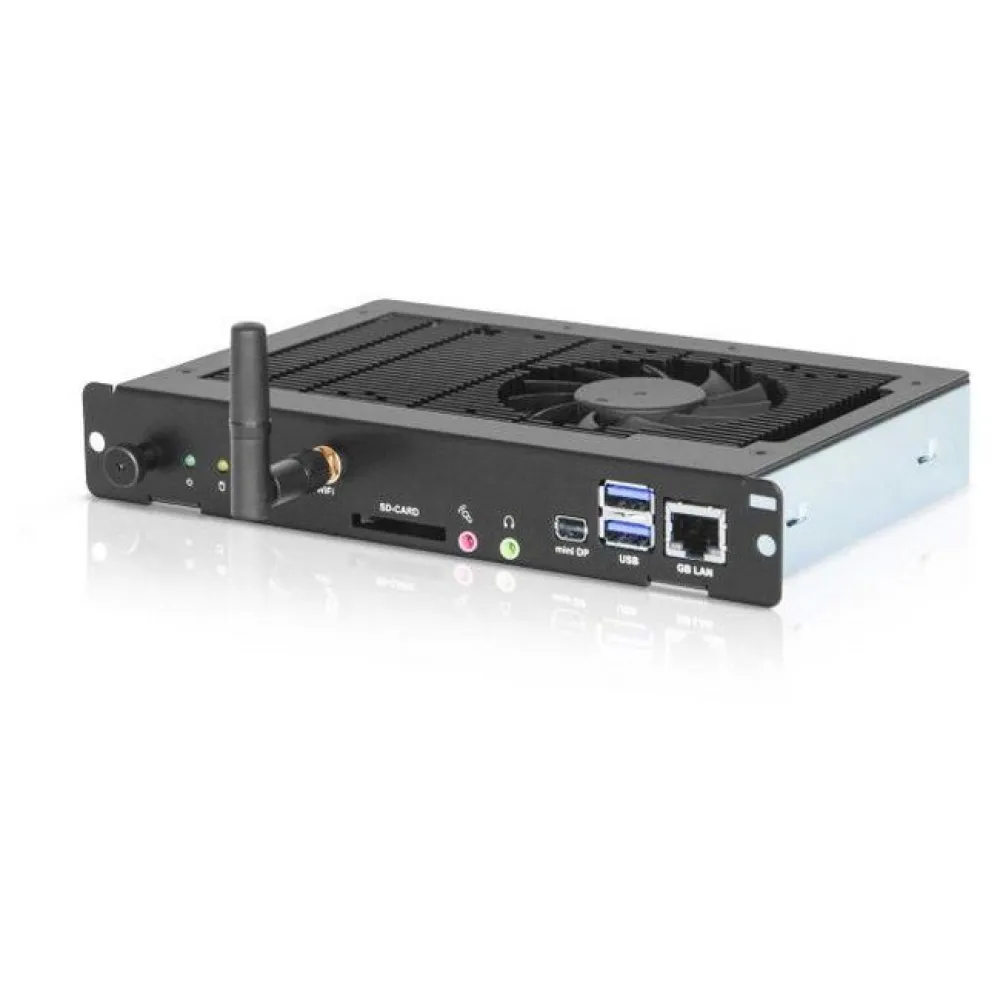

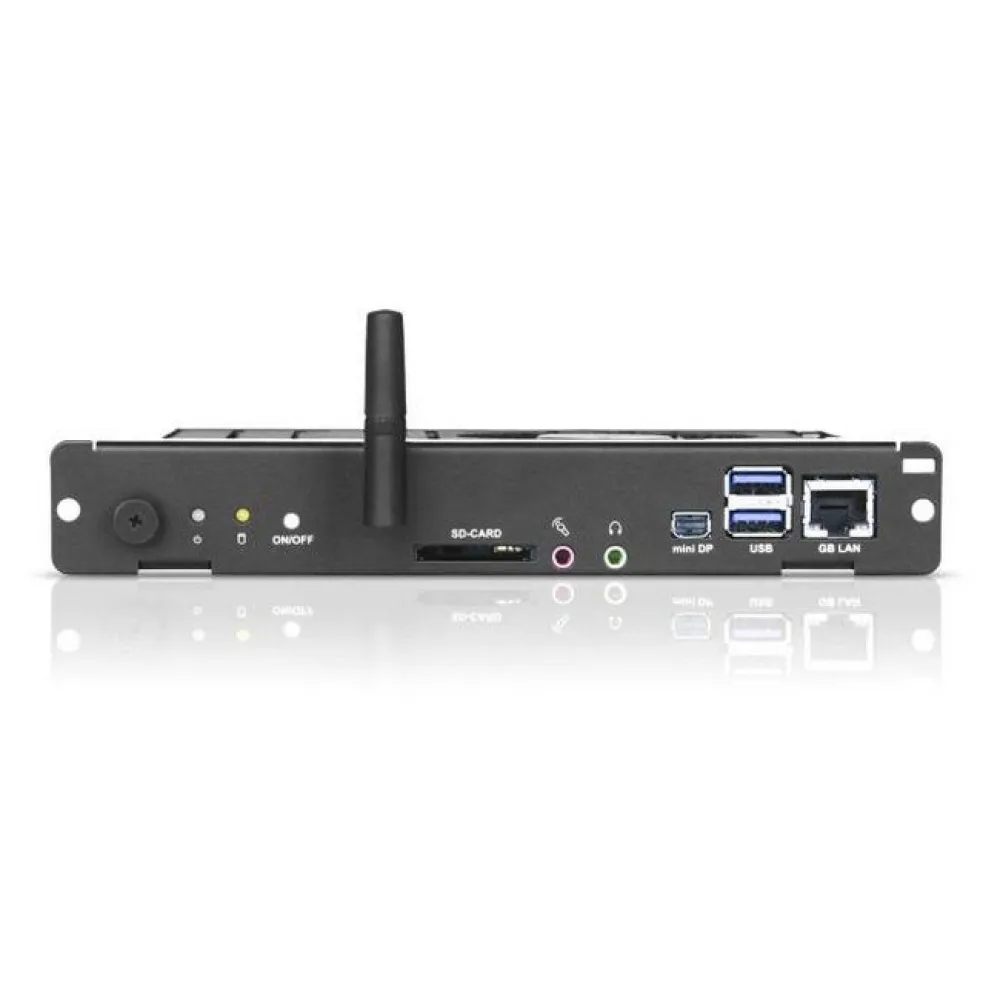

Nec Mini PC

EU PLUG.

The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications.

The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing.

The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232.

All NEC large format displays (except E series 32´´ to 65´´), PX and PH installation projectors feature this option slot.

- Powerful possibilities.

- the 6th generation Intel® processors deliver a new class of computing with a host of new Features to power the next generation of embedded computing.

- Intel ® HD graphics.

- provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.

- Tailor-made solution.

- extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.

- High reliability.

- ideally suited for 24/7 operation due to the use of industrial grade components.

- Seamless and fully embedded.

- as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.

- Secure greatness.

- 6th generation Intel ® vPro TM processors deliver security protection as well as AMT remote management functionality for the enterprise.

- Ideal for Digital Signage.

- compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.

- Economical.

- enjoy more performance whilst consuming less power.

Specifications:

- Processor.

- Processor frequency:2.7 GHz.

- Processor family:6th gen Intel® Core™ i5.

- Processor model:i5-6440EQ.

- Processor cores4.

- Processor boost frequency3.4 GHz.

- Processor socketBGA 1440.

- Processor cache6 MB.

- Processor cache typeSmart Cache.

- System bus rate8 GT/s.

- Processor threads4.

- PCI Express slots version3.0.

- Processor lithography14 nm.

- Processor operating modes64-bit.

- SteppingR0.

- Bus typeDMI3.

- Processor codenameSkylake.

- Thermal Design Power (TDP)45 W.

- Processor seriesIntel Core i5-6400 Mobile series.

- Maximum number of PCI Express lanes16.

- PCI Express configurations1x16,1x8+2x4,2x8.

- Tcase100 °C.

- Tjunction100 °C.

- Maximum internal memory supported by processor64 GB.

- Conflict-Free processorYes.

- Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM,LPDDR3-SDRAM.

- Memory clock speeds supported by processor1600,1866,2133 MHz.

- Memory bandwidth supported by processor (max)34.1 GB/s.

- ECC supported by processorNo.

- Memory.

- Internal memory:8 GB.

- Internal memory typeDDR4-SDRAM.

- Maximum internal memory16 GB.

- Memory slots2x SO-DIMM.

- Memory clock speed2133 MHz.

- Memory channelsDual-channel.

- Storage.

- Total storage capacity:128 GB.

- Storage media:SSD.

- Card reader integrated:Yes.

- Compatible memory cardsSD.

- SSD interfaceMicro Serial ATA III.

- SSD capacity128 GB.

- Graphics.

- On-board graphics adapter:Yes.

- On-board graphics adapter model:Intel® HD Graphics 530.

- Maximum on-board graphics adapter memory64 GB.

- On-board graphics adapter base frequency350 MHz.

- On-board graphics adapter dynamic frequency (max)1000 MHz.

- On-board graphics adapter DirectX version12.0.

- On-board graphics adapter OpenGL version4.4.

- On-board graphics adapter ID0x191B.

- Discrete graphics adapter:No.

- Discrete graphics adapter modelNot available.

- Number of displays supported (on-board graphics)3.

- Network.

- Wi-Fi:Yes.

- Cabling technology10/100/1000Base-T(X).

- Ethernet LAN data rates10,100,1000 Mbit/s.

- Wake-on-LAN readyYes.

- Ports & interfaces.

- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2.

- DVI portNo.

- Mini DisplayPorts quantity1.

- Ethernet LAN (RJ-45) ports:1.

- Headphone outputs1.

- Microphone inYes.

- Performance.

- Motherboard chipsetIntel QM170.

- Product colourBlack.

- Audio chipRealtek ALC887.

- Software.

- Operating system installedWindows 10 IoT Enterprise.

- Processor special Features.

- Supported instruction setsAVX 2.0,SSE4.1,SSE4.2.

- Processor codeSR2DU.

- Intel® Identity Protection Technology (Intel® IPT)Yes.

- Intel® Hyper Threading Technology (Intel® HT Technology)No.

- Intel® Turbo Boost Technology2.0.

- Intel® Quick Sync Video TechnologyYes.

- Intel® InTru™ 3D TechnologyYes.

- Intel® Wireless Display (Intel® WiDi)Yes.

- Intel® Clear Video HD Technology (Intel® CVT HD)Yes.

- Intel® Insider™Yes.

- Intel® AES New Instructions (Intel® AES-NI)Yes.

- Enhanced Intel SpeedStep TechnologyYes.

- Execute Disable BitYes.

- Idle StatesYes.

- Thermal Monitoring TechnologiesYes.

- Intel Trusted Execution TechnologyYes.

- Intel Enhanced Halt StateYes.

- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes.

- Intel VT-x with Extended Page Tables (EPT)Yes.

- Embedded options availableYes.

- Graphics & IMC lithography14 nm.

- Intel TSX-NIYes.

- Intel® Secure KeyYes.

- Intel 64Yes.

- Intel® OS GuardYes.

- Intel Virtualization Technology for Directed I/O (VT-d)Yes.

- Intel Clear Video TechnologyYes.

- Intel Software Guard Extensions (Intel SGX)Yes.

- Intel HD GraphicsYes.

- Intel Virtualization Technology (VT-x)Yes.

- Processor package size42 x 28 mm.

- Processor ARK ID90425.

- Operational conditions.

- Operating temperature (T-T)0.

- 40 °C.

- Operating relative humidity (H-H)0.

- 90%.

- Certificates.

- CertificationCE/FCC.

- Weight & dimensions.

- Width120 mm.

- Depth200 mm.

- Height30 mm.

- Weight900 g.

- Package width200 mm.

- Package depth260 mm.

- Package height60 mm.

- Package weight1 kg.
