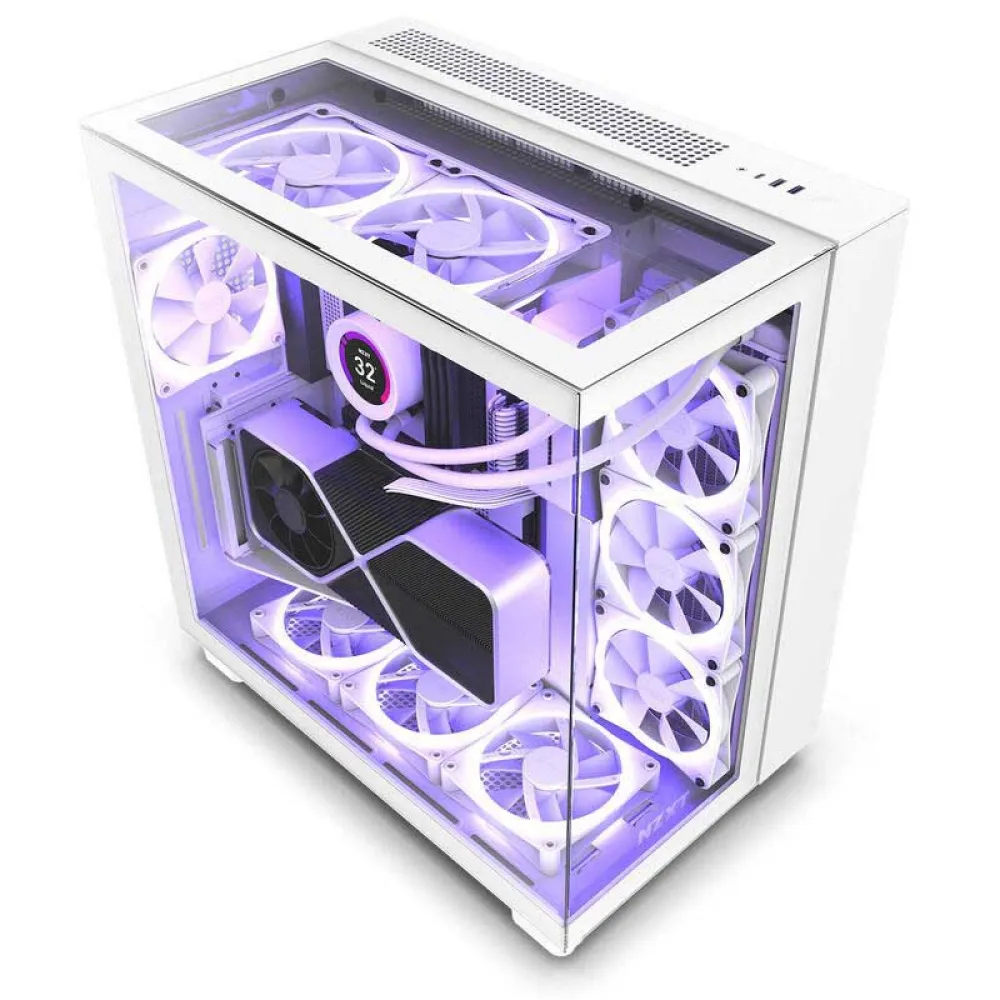

Nzxt H9 Elite PC-tårnhus

Premium Dual-Chamber Mid-Tower Airflow Case.

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.

GPU Capacity:
- The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.

Fan Capacity:
- The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.

Radiator Capacity:
- The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.


Features:

- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan


Specifications:

Key Specs:
- Motherboard Support: Mini-ITX, Micro-ATX, ATX
- Enclosure Type: Mid-Tower
- Case Material: SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions:
- Height: 495mm (With Feet)
- Width: 290mm
- Depth: 466mm
- Weight: 13.1 kg

Compatibility & Clearance:
- CPU Cooler Clearance: Up to 165mm
- GPU Clearance: Up to 435mm
- PSU Clearance: 200mm
- Cable Management: 91mm

Front I/o Ports:
- USB 3.2 Gen 1 Type-A: 2
- USB 3.2 Gen 2 Type-C: 1
- Headset Audio Jack: 1

Expansion Slots:
- Standard: 7
- Vertical: 0

DRIVE BAYS:
- 2.5´´: 4+2
- 3.5´´: 2

Fan Support:
- Side: 3 x 120mm
- Top: 3 x 120mm / 2 x 140mm
- Bottom: 3 x 120mm / 2 x 140mm
- Rear: 1 x 120mm
- Filters: All Air Intakes

Radiator Support:
- Side: Up to 360mm
- Top: Up to 360mm
- Bottom: Up to 360mm
- Rear: Up to 120mm

Fan:
- Model:F120Q (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm - H2O
- Noise:25.1 dBA
- Fan Connector:3-pin

Fan:
- Model:F120RGB Duo
- Speed:500 ± 1800RPM
- Airflow:48.58 CFM
- Static:2.42 mm - H2O
- Støj: 29 dBA
- Fan-stik: 4-pin

Inde i kassen:
- H9 Elite-kabinet
- Front I/O-splitkabler
- 120 mm RGB Duo Fan
- 120 mm Quiet Airflow Fan (kabinetsversion)
- RGB- og fan-controller
- Installationsudstyr
- Brugervejledning
