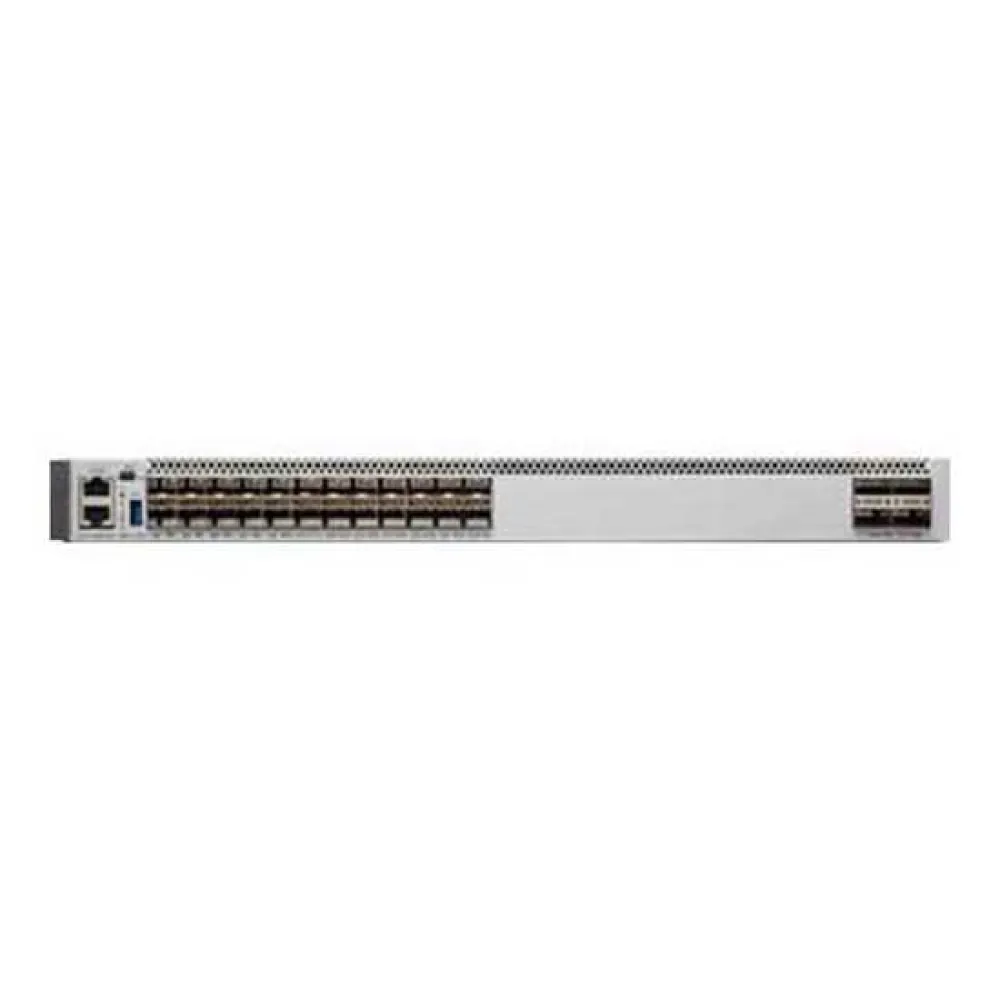

Cisco Catalyst 9500 24Y4C-A L3 Switch

EU Plug.

Cisco Catalyst Series Switches deliver secure, scalable, high-performance wired and wireless access for the interactive campus.

The convergence of data, voice, video and mobility is giving rise to interactive services (such as IPTV, IP video and Telepresence) in the campus network that help customers increase productivity while reducing operating costs.

Catalyst switches ensure that these services are delivered with the highest performance, availability, quality of service, and security, and can coexist with mission-critical applications on the campus network.

Specifications:

General:- Type of device:Switch.

- 24 ports.

- L3.

- Managed.

- Type of box:1U rackmount.

- Subtype:25 Gigabit Ethernet.

- Ports:24 x 25 Gigabit SFP28.

- Performance:Switching capacity (full duplex):1.6 Tbps.

- Transmission rate:1 Bpps Ability:- Routing Table Entries:80000.

- Indirect IPv4 Routes:212000.

- Host IPv4 Routes:90000.

- Indirect IPv6 Routes:212000.

- Host IPv6 Routes:90000.

- MulticastScale:32000.

- QoS ACL Scale:16000.

- Security ACL Scale:270000.

- Entries FNF:96000.

- VLAN-ID:4000.

- Switched Virtual Interfaces (SVIs):4000.

- MAC address table size:64K entries.

- Jumbo case supported:9198 bytes.

- addressing protocol:OSPF,IS-IS,RIP-2,BGP,EIGRP,IGMP,VRRP,PIM-SM,PIM-SSM,MSDP,RIPng,MPLS.

- Remote management protocol:SNMP 1,RMON 1,RMON 2,SNMP,SNMP 3,SNMP 2c,TFTP,NETCONF,RESTCONF.

- encryption algorithm:AES 256-bit.

- Compliance:IEEE 802.3,IEEE 802.3u,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.3x,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.3ae,IEEE 802.1 yes,IEEE 802.1ae,IEEE 802.3ba.

Processor:1:2.4GHz.

- RAM-.

Memory:16GB.

- Flash.

Memory:16GB.

- Embedded devices:RFID tags Expansion / Connectivity:Interfaces:- 24 x 25Gbit LAN SFP28.

- 4 x 100Gbit LAN.

- 2xUSB3.0 Feeding:- feeding device:Power supply.

- hot plug.

- Installed quantity:1.

- Maximum amount supported:2.

- power redundancy:Optional.

- Power redundancy scheme:1+1.

- Power supplied:650 watts.

- Required voltage:AC 120/230 V (50.

- 60 Hz) Different:- MTBF (mean time between failures):336,780 hours Software / System Requirements:- Software included:Cisco IOS XE 16.8.1 Dimensions and weight:- Width:44.5 cm.

- Depth:45.7 cm.

- Height:4.39 cm.

- Weight:9.52 kg Environment Parameters:- Minimum operating temperature:0 °C.

- Maximum operating temperature:40 °C.

- Operating humidity range:5.

- 90% (non-condensing).

- Minimum storage temperature:-20 °C.

- Maximum storage temperature:65 °C.

- Storage humidity range:5.

- 95% (non-condensing).
