Kramer Extensor HDMI VS-44H2A

The VS-44H2A is a high-performance 4x4 matrix switch for 18G 4K60Hz (4:4:4) HDRMI signals.

It re-locks and equalizes signals and can route any of four HDMI and HDCP compatible sources (selectable) to any or all outputs simultaneously.

-High-performance AV matrix -Switches 4 4K60Hz (4:4:4) HDR HDMI HDCP signals to 4 18G 4K60Hz (4:4:4) HDR HDMI HDCP outputs at up to 18G data rate.

Signals are compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4.

-De-embedding (Extraction) of analog and digital audio -De-embedding the audio signal and outputs it as balanced analog audio with independent volume control on each of the outputs and S/PDIF digital audio.

-Easy Step-In Collaboration Feature -When used with a Kramer Step-In enabled switch, simply plug in your device and press the Step-In button.

The device becomes the active signal on the main screen.

-Features Kramer Equalization and reKlocking™ Technology -Rebuilds the digital signal to travel longer distances.

-EDID Management -Individual EDID management per entry.

Captures and stores the EDID from a display device.

-Flexible content protection -HDCP selectable per input.

-Quick access to common settings -Save up to six preset settings.

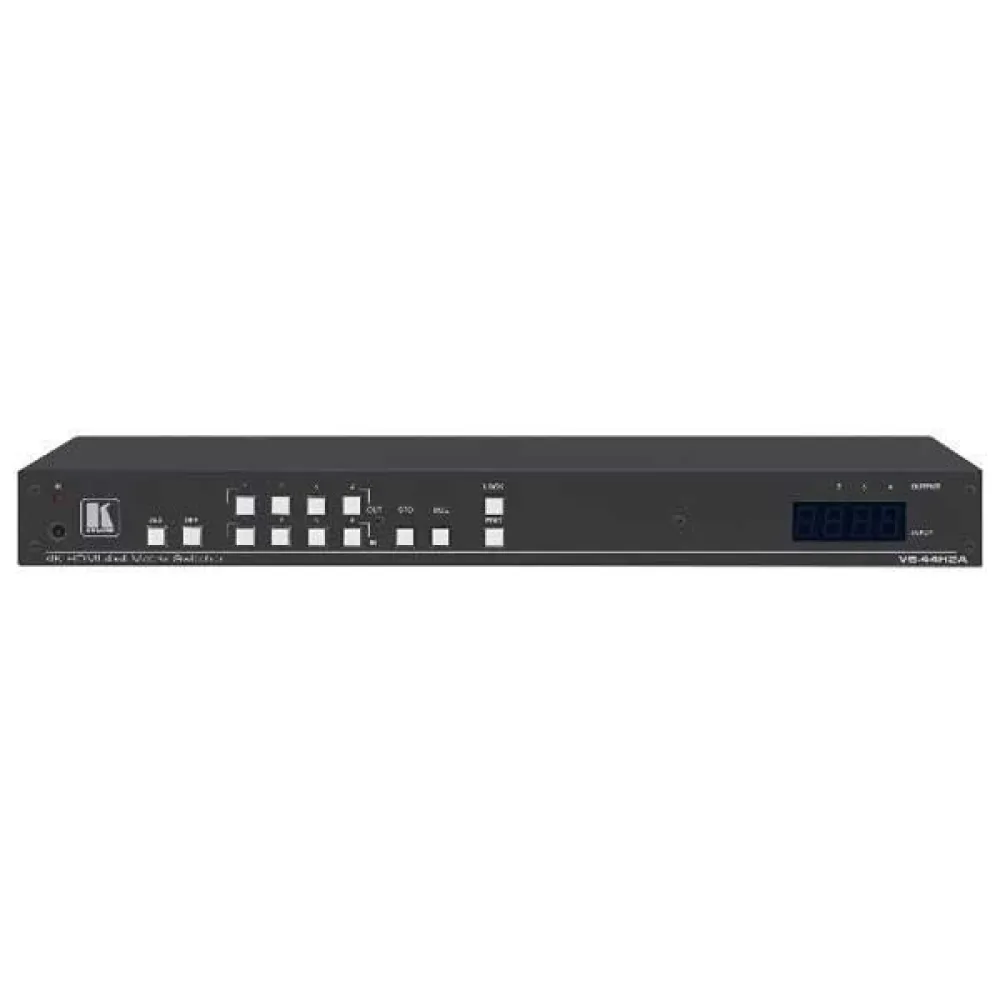

-Convenient unit control and configuration options -Local control via front panel switching, memory, lock and EDID buttons, LED input/output display and infrared remote control.

Distance control via easy-to-use integrated web pages via Ethernet, 3000 API Protocol and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.

-Cost-effective maintenance -IR and input selection indicators facilitate local maintenance and troubleshooting.

Firmware update via Ethernet or USB using an easy-to-use software update tool.

-Easy installation -19´´ cabinet to mount one unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.

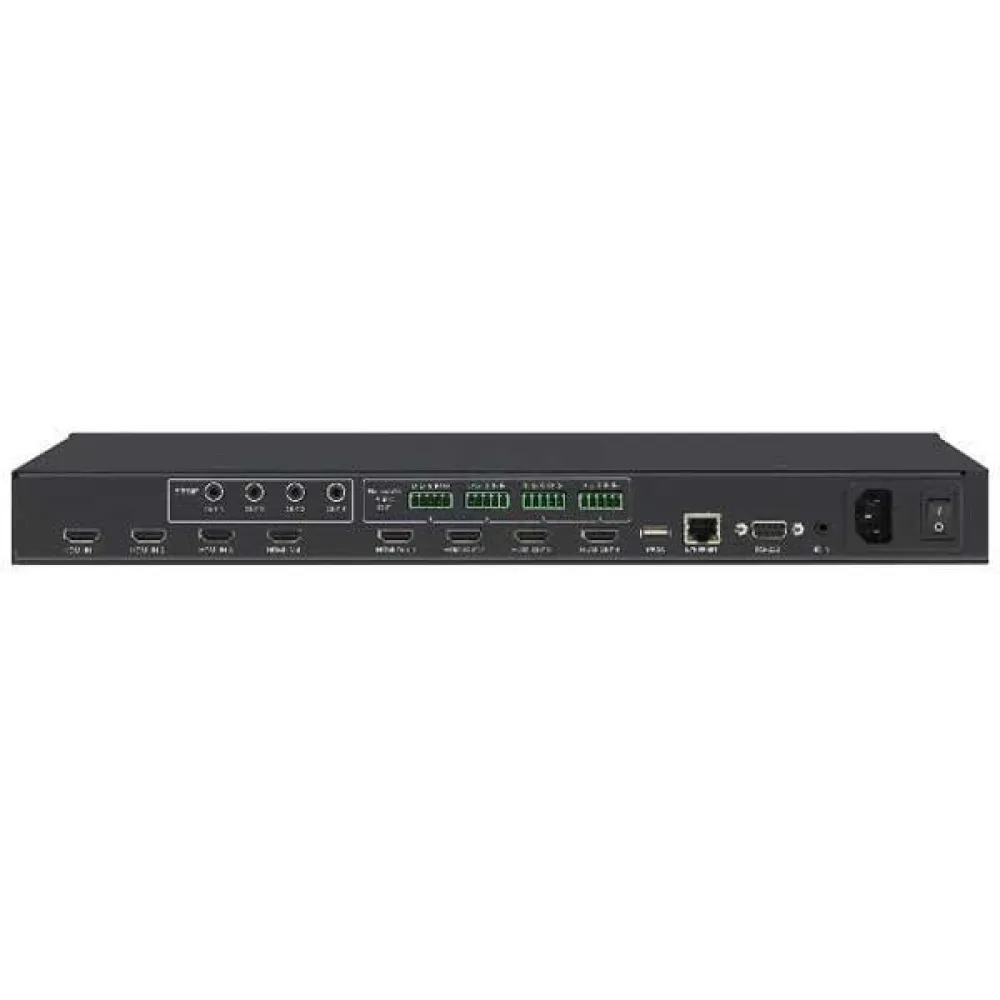

Specifications:-Quantity of HDMI input ports:4.

-Quantity of HDMI output ports:4.

-Ethernet LAN ports (RJ-45):1.

-Port -RS-232:1.

-Width:430.64 mm.

-Depth:230.72 mm.

-Height:40.36 mm.

-Weight:2 kg.

-Operating temperature range:0 -40 °C.

-Storage temperature range:-40 -70 °C.

-Relative operating humidity:10 -90%.

-Housing color:Black.

-Product type:Switch.

-Data transfer speed:18Gbps.

-Maximum resolution:up to 4K at 60Hz (4:4:4).

-HDCP:Yes.

-HDCP version:1.4/2.2.
