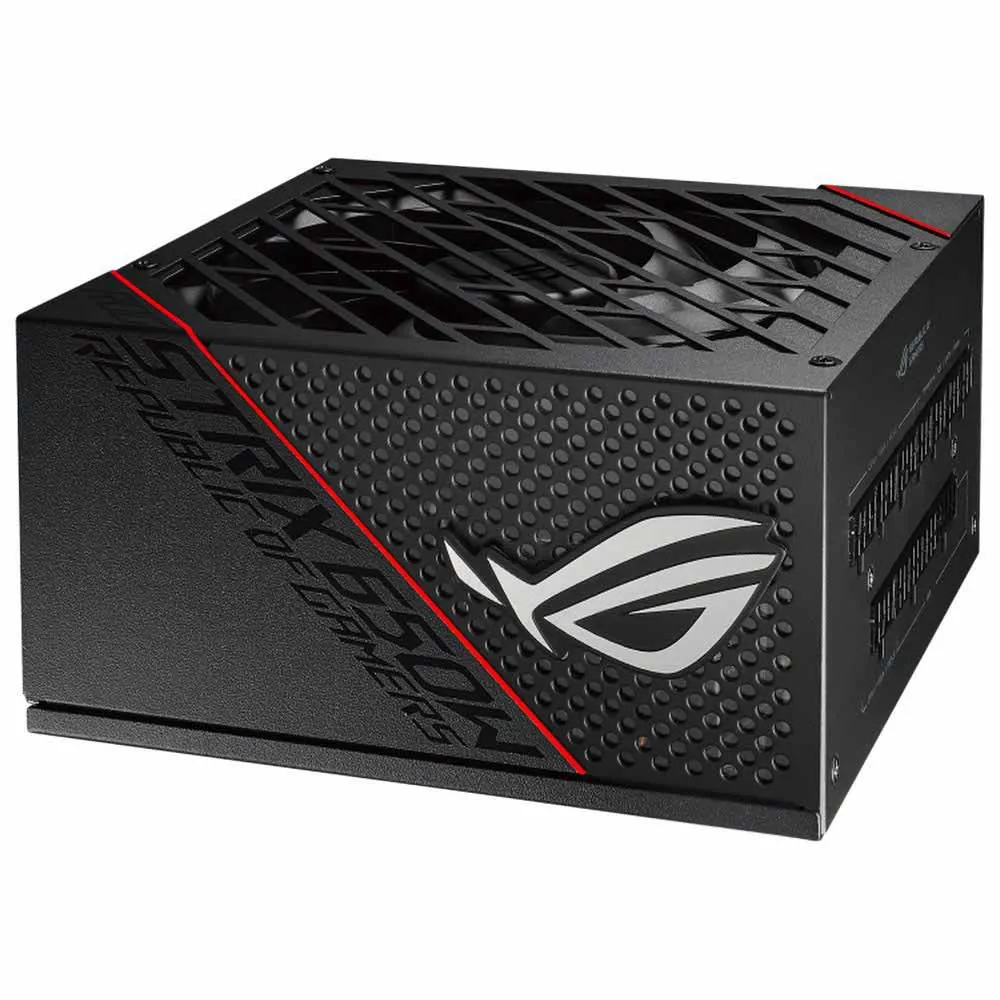

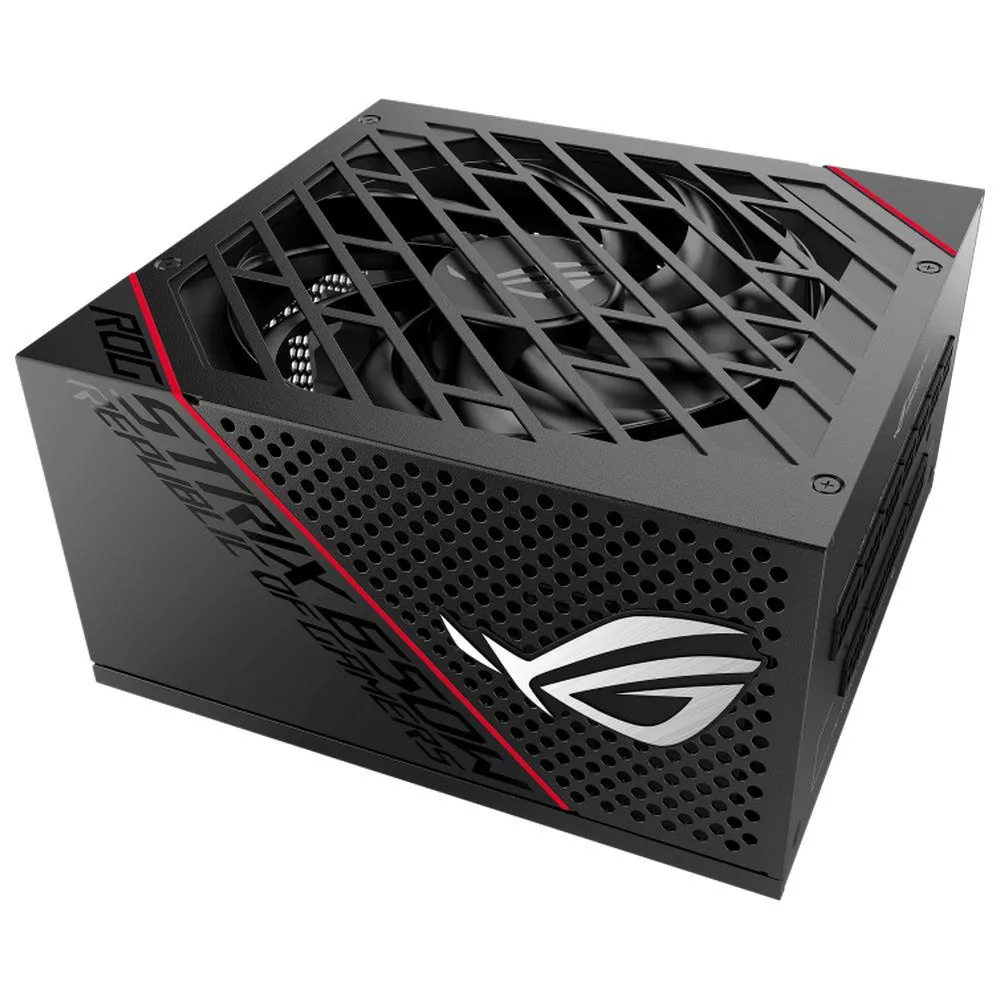

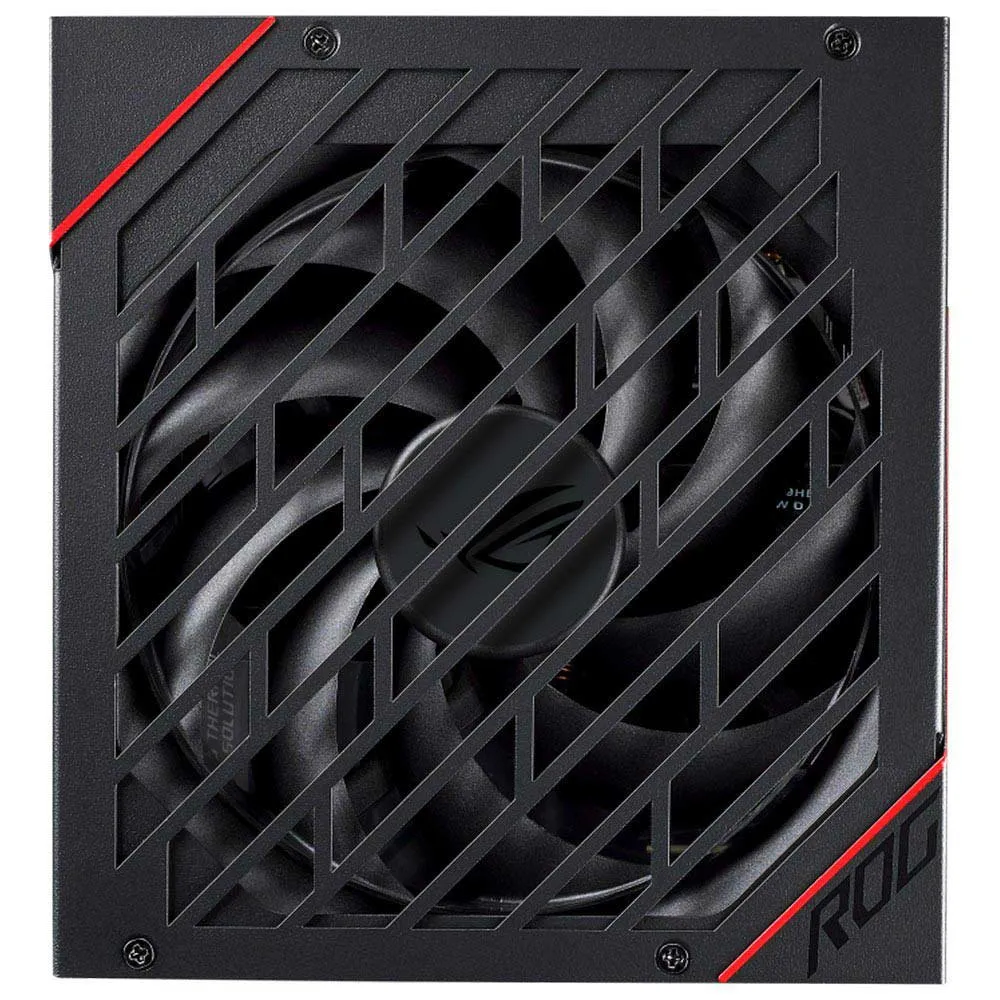

Asus ROG Strix 650G1 Modulär nätaggregat

EU Plug.

Frozen Silence:- The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers.

In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance.

Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease.

The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks Let it sink in:- The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs.

This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs.

The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

Dual Ball Fan Bearings 2x longer lifespan:- Different bearing types have unique pros and cons.

In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

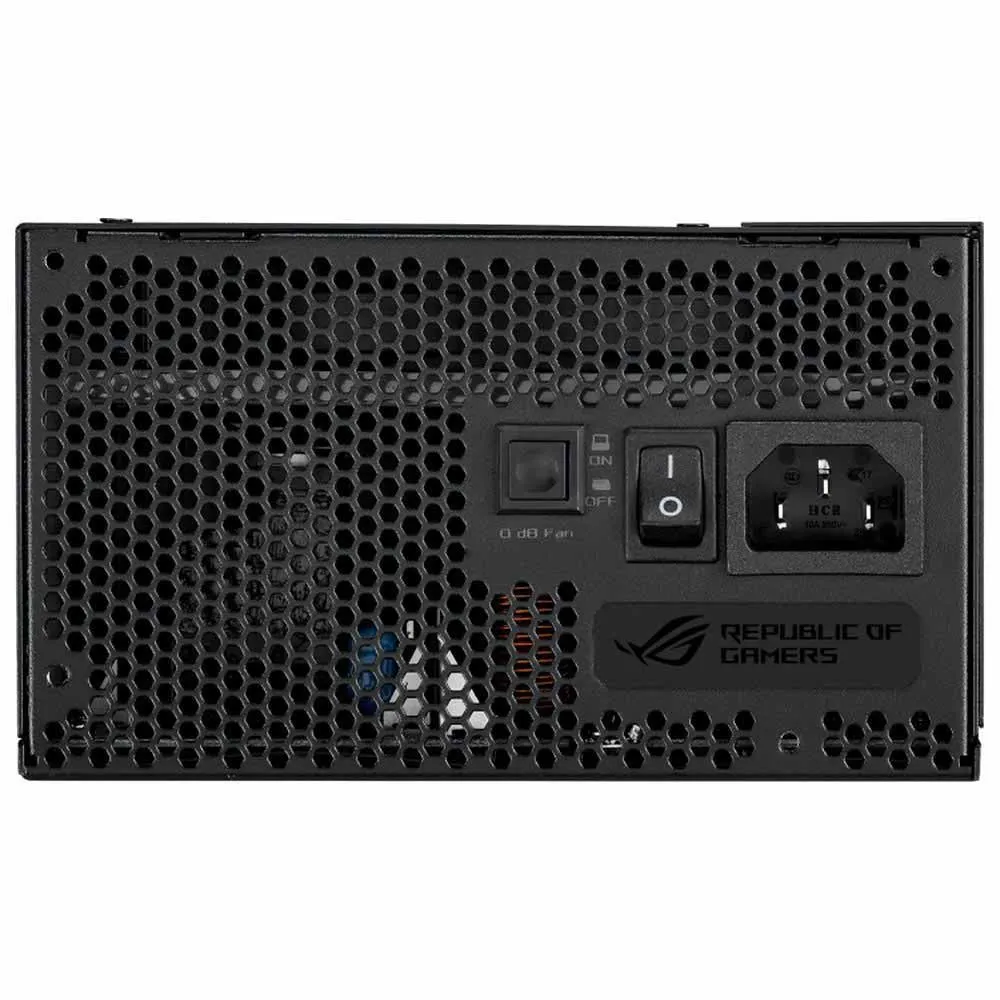

0dB Technology Quiet intelligence:- An onboard controller brings the 135mm fan to a standstill when total draw power (TDP) is below 40%, letting you enjoy light gaming in relative silence.

Above 40% TDP, the fans automatically start up again.

80 Plus Gold Certification Heart of gold:- Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification.

The increased efficiency also results in less heat, reducing noise and increasing reliabilit.

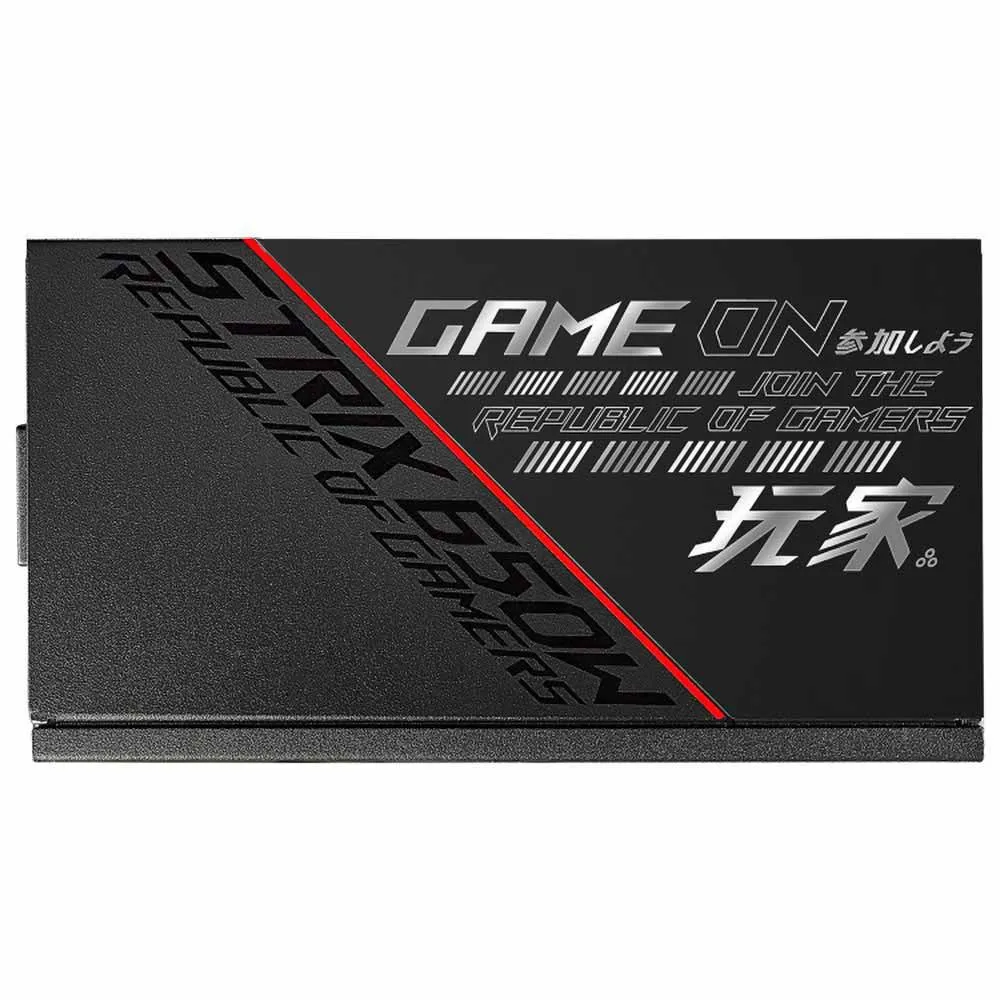

Cosmetic Customization:- Getting everything looking right can be a challenging aspect of any setup.

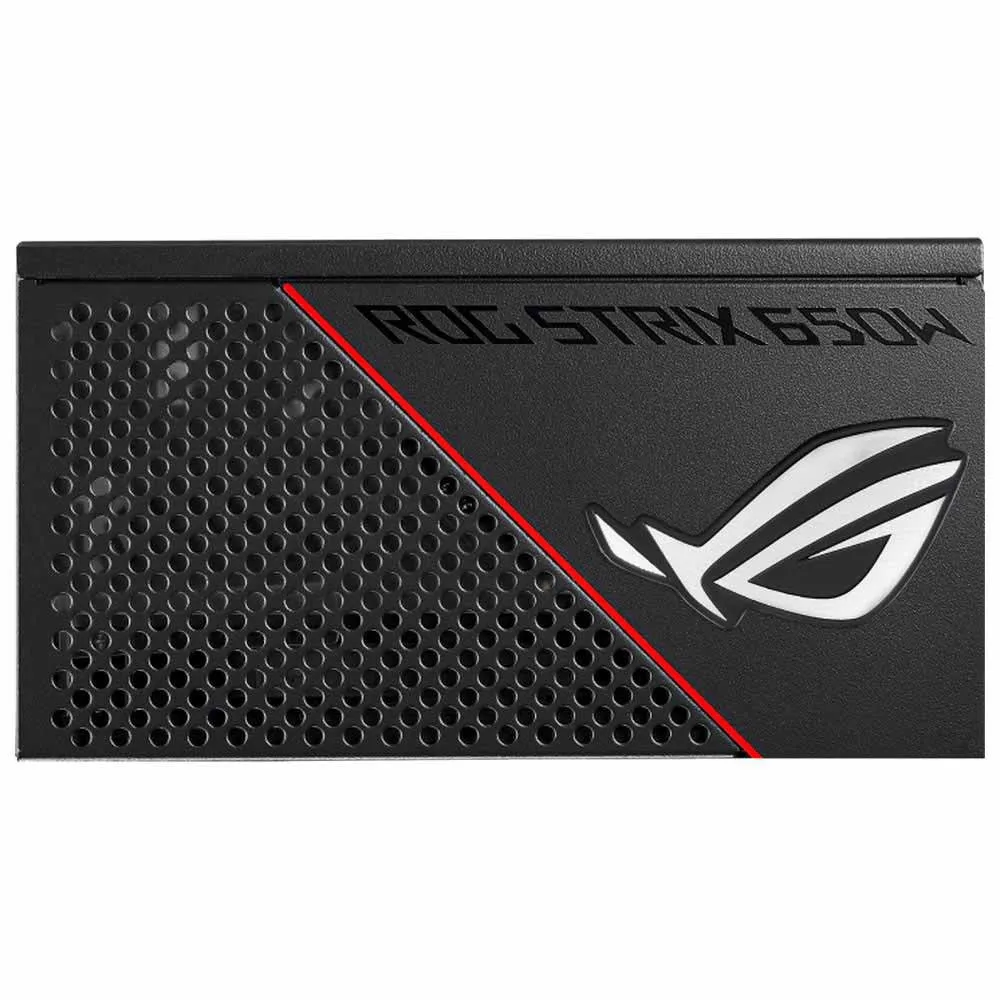

The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

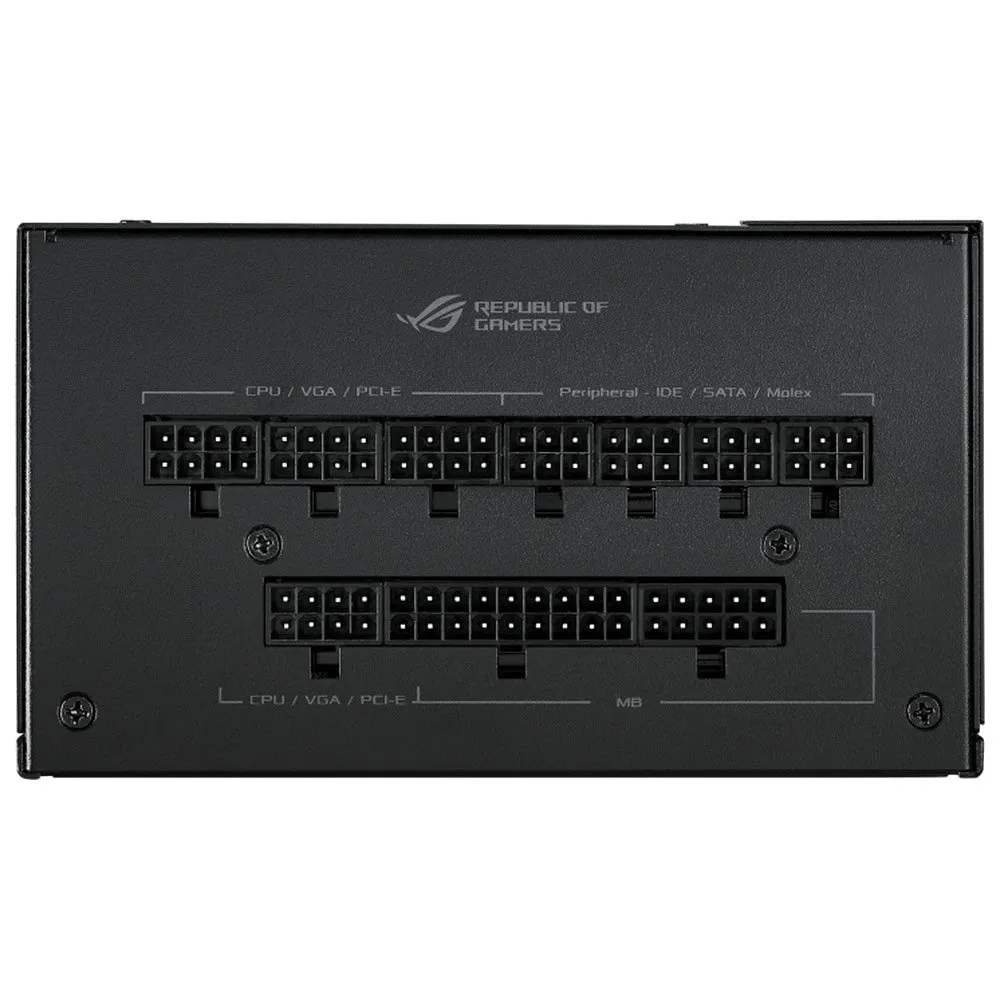

Fully Modular Cables Plug in:- Keep your rig neat and tidy with fully modular cables.

One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.

Specifications:

Energy Management:- Total.

Power:650 W.

- AC input voltage:100.

- 240 V.

- Max output current (+3.3V):20 A.

- Max output current (+12V):62 A.

- Max output current (+5V):20 A.

- Max output current (-12V):0.3 A.

- Max output current (+5Vsb):3 A.

- Power protection.

Features:

Over power, Overheating, Overload, Short circuit.

Ports & interfaces:- Motherboard power connector:20+4 pin ATX.

- Number of SATA power connectors:4.

- Peripheral (Molex) power connectors (4-pin):3.

- PCI Express power connectors (6+2 pin):4.

Ports & interfaces:- CPU power connector (4+4 pin):Yes Performance:- 80 PLUS certification:80 PLUS Gold.

- Purpose:PC.

- Power supply unit (PSU) form factor:ATX.

- RoHS compliance:Yes Design:- Fan diameter:13.5 cm.

Weight & dimensions:- Width:160 mm.

- Depth:150 mm.

- Height:86 mm.

- Weight:1.75 kg Packaging Data:- Cables included:AC, PCIe, SATA.

- Package weight:3.08 kg.
