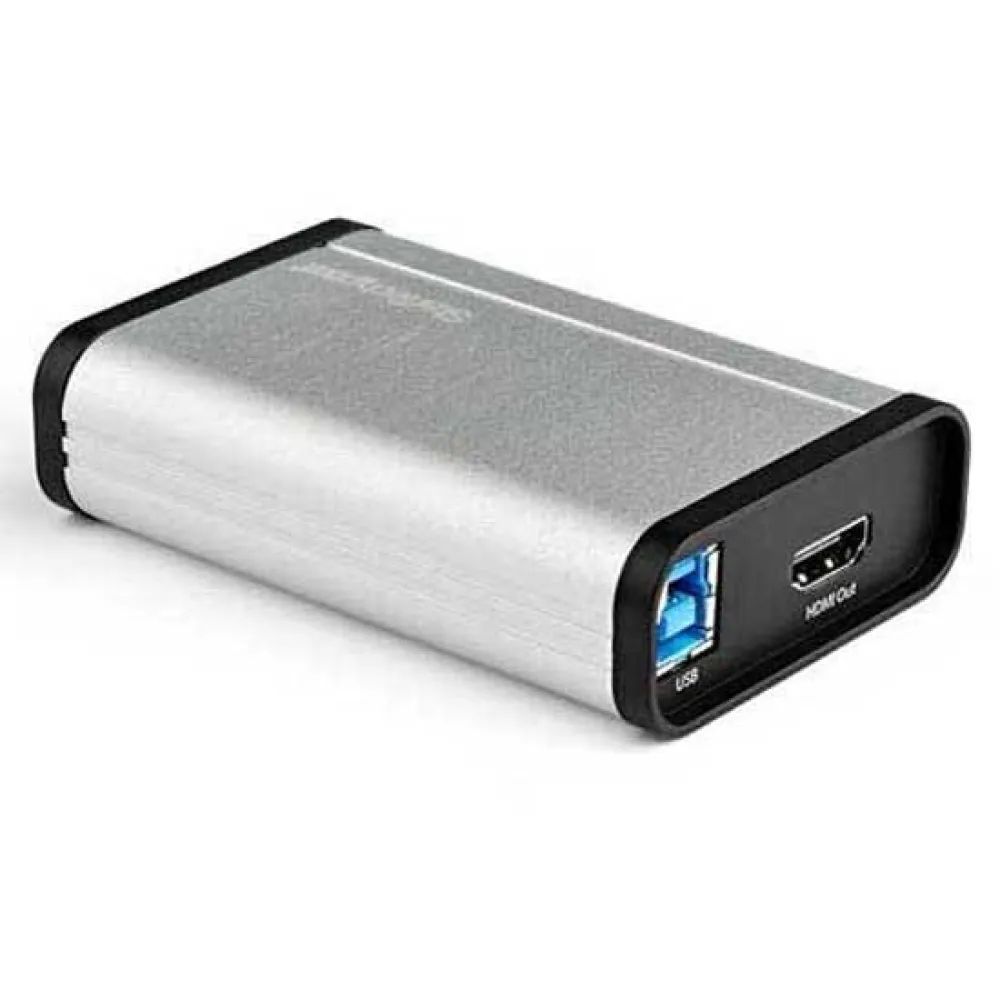

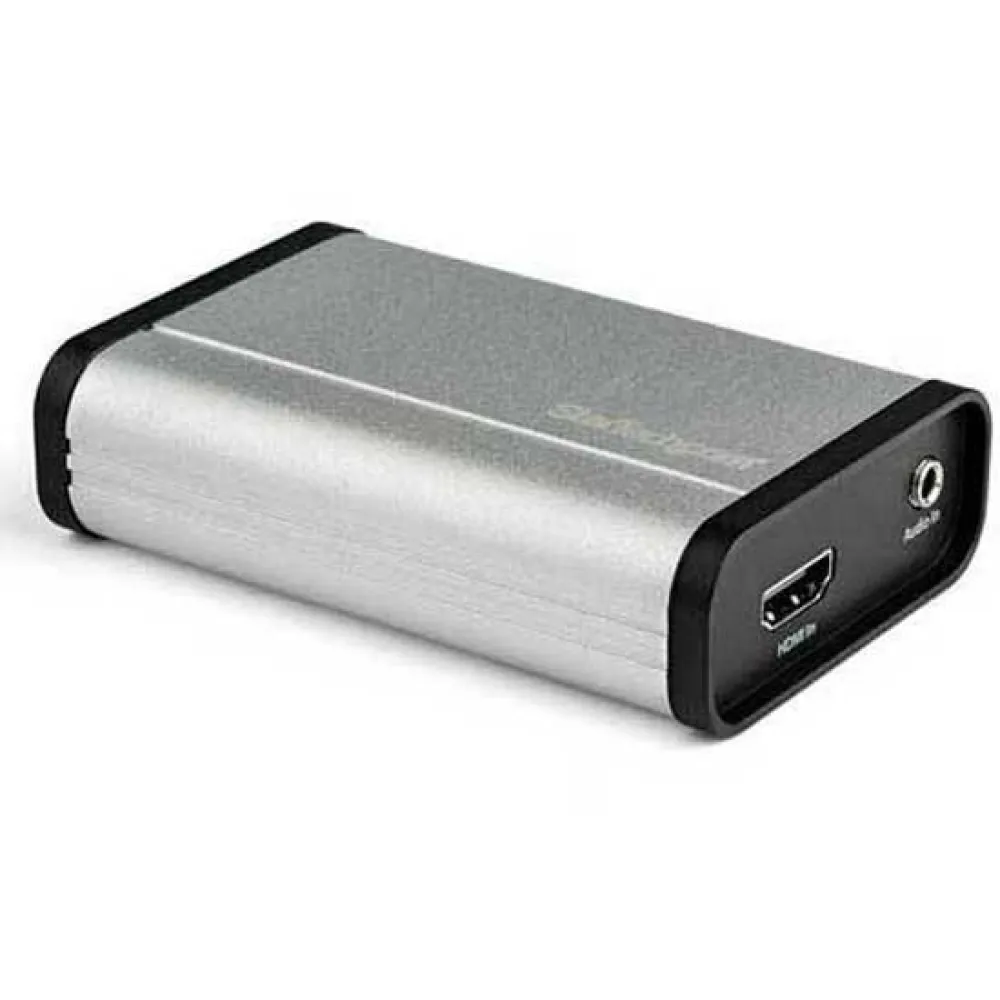

Startech HDMI-USB-C-videokaappauslaite

HDMI® Recorder USB 3.0 USB Video Class USB-A Cable Included.

This HDMI to USB-C video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt 3 computer.

Easy Setup, Easy Capture:

- For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer.

The capture device features USB Video Class (UVC), a video capture standard that´s natively supported by Mac, Windows and Linux.

Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution.

Also, with this recorder you´re not limited to the included software.

you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow.

Capture HD Video:

- Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content.

Capture meetings, presentations, conference calls and security footage directly to your computer.

Stream Your 1080p Content:

- Stream video over the web using Twitch or other third-party streaming platforms.

With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.

The UVCHDCAP is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Note:

This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers.

However, this device will capture video to Mac computers and will capture non-encrypted video.

The StarTech.com Advantage:

- HD VIDEO CAPTURE:

Bus-powered USB 3.0 capture device records HDMI video to USB-C, TB3 or USB-A computer.

- 1080p 60fps, 3.5mm 2ch audio, HDMI pass-through, H.264 software encoding (MJPEG/MPEG-2/MPEG-4).

- USB VIDEO CLASS:

UVC ensures an easy setup w/ driverless, automatic install in Windows (7 & up), Mac (10.11 & up) & Linux (4.x LTS).

Capture device is compatible w/ DirectShow & QuickTime applications.

Specifications:

Technical details:

- Internal:

No.

- Host interface:

USB 3.2 Gen 1 (3.1 Gen 1).

- Chipset:

Mstar MST3363CNK-170.

- Video capture resolution (max):

1920 x 1080 pixels Video:

- Supported resolutions:

1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600.

- Maximum frame rate:

60 fps.

- Supported video modes:

1080p Audio:

- Audio support:

Yes.

- Supported audio channels:

2 Ports & interfaces:

- Audio (L/R) in:

1.

- HDMI in:

1.

- Number of HDMI outputs:

1.

- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:

1 Weight & dimensions:

- Width:

60 mm.

- Depth:

92 mm.

- Height:

23 mm.

- Weight:

86 g Power:

- USB powered:

Yes Software:

- Windows operating systems supported:

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64.

- Mac compatibility:

Yes.

- Mac operating systems supported:

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X.

- 10.14 Mojave, Mac OS X 10.15 Catalina.

- Linux operating systems supported:

Yes Operational conditions:

- Operating temperature (T-T):

0.

- 40 °C.

- Storage temperature (T-T):

-5.

- 40 °C.

- Operating relative humidity (H-H):

20.

- 80% Packaging data:

- Package weight:

470 g.

- Package height:

215 mm.

- Package width:

470 mm.

- Package depth:

392 mm Logistics data:

- Quantity per master (outer) case:

48 pc(s).

- Master (outer) case length:

47 cm Packaging content:

- Cables included:

HDMI, USB, USB Type-C.

- User guide:

Yes Certificates:

- RoHS compliance:

Yes.

-.

Certification:

CE, FCC, TAA, REACH Other.

Features:

- Master (outer) case width:

47 cm.

- Master (outer) case height:

47 cm.
