Elo Touch PoE I-Series 2.0 Android PLC-sovitin

EU Plug.

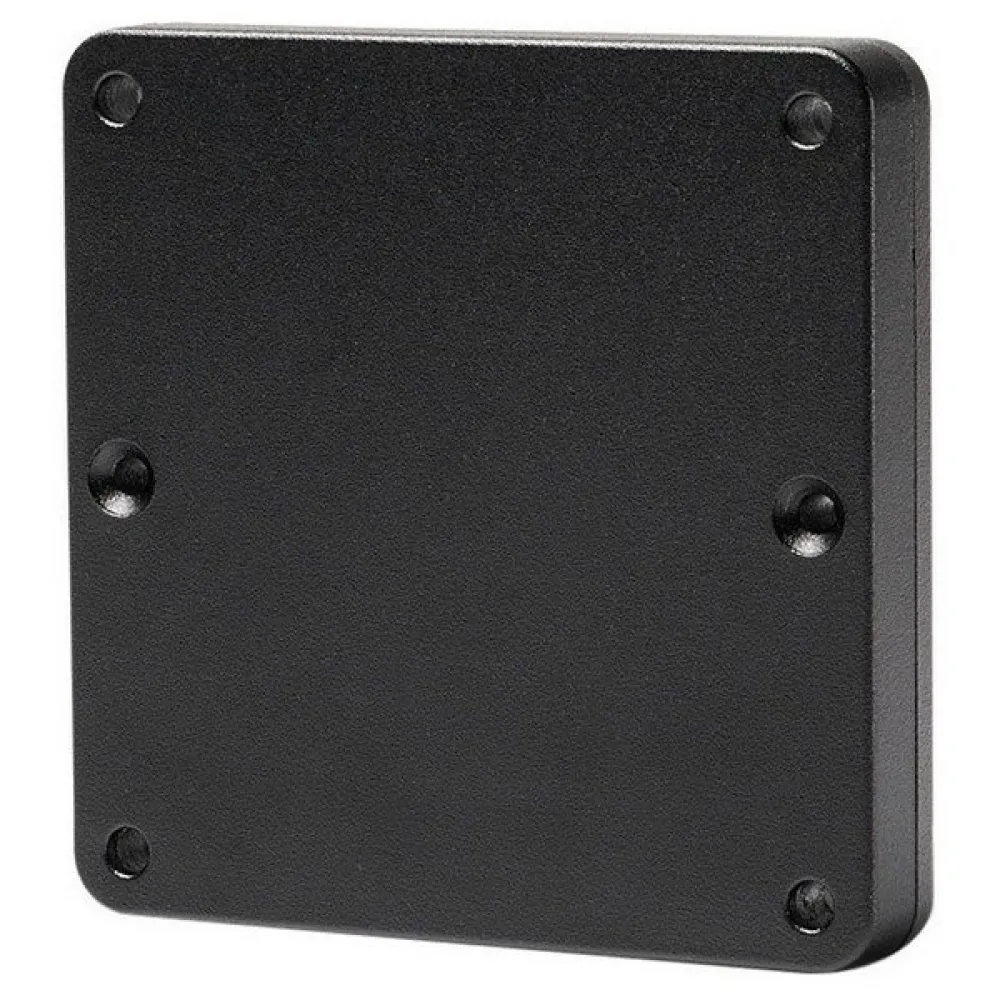

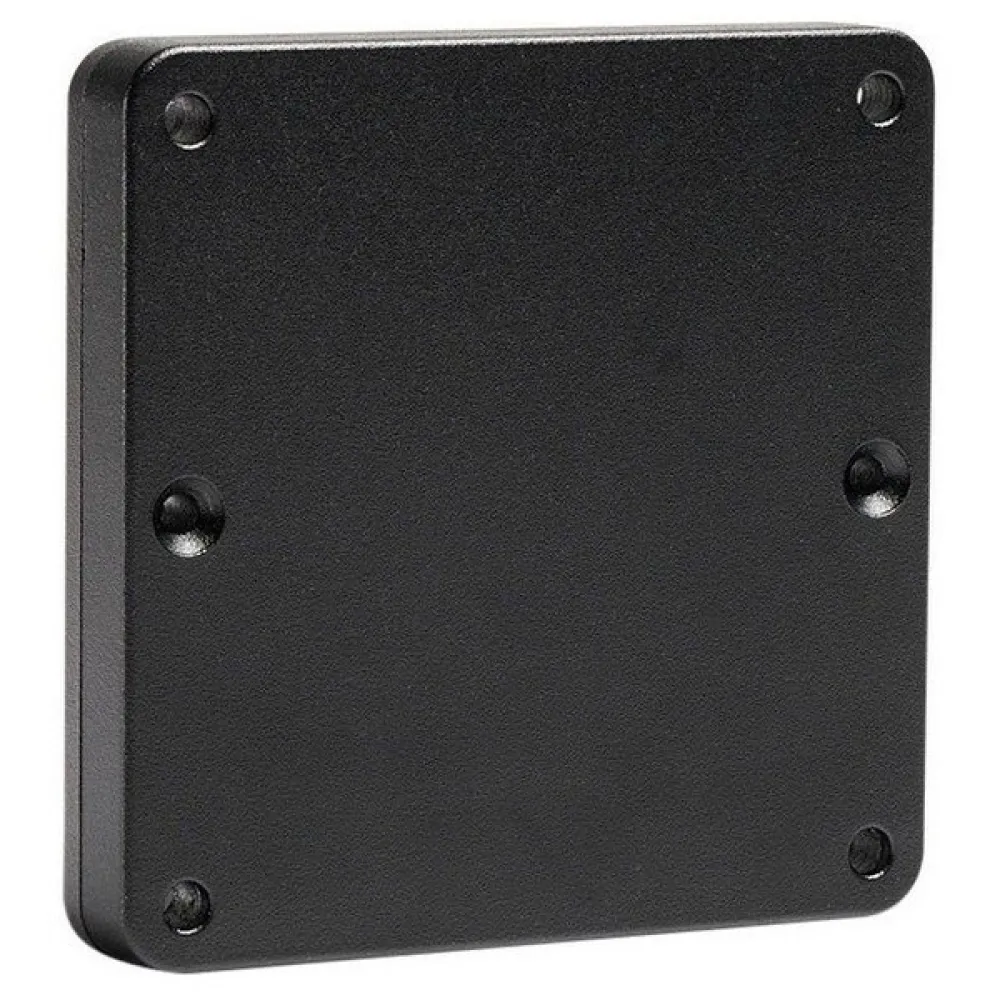

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the I-Series 2.0 for Android.

The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source.

So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.

Specifications:

- POE Standard Protocols:IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX, IEEE802.3at, Power over Ethernet.

- Input Connection:POE+ (30W).

- Dimensions:3.5´´ x 3.5´´ x 0.8´´ / 89.2 mm x 89.2 mm x 20.5 mm.

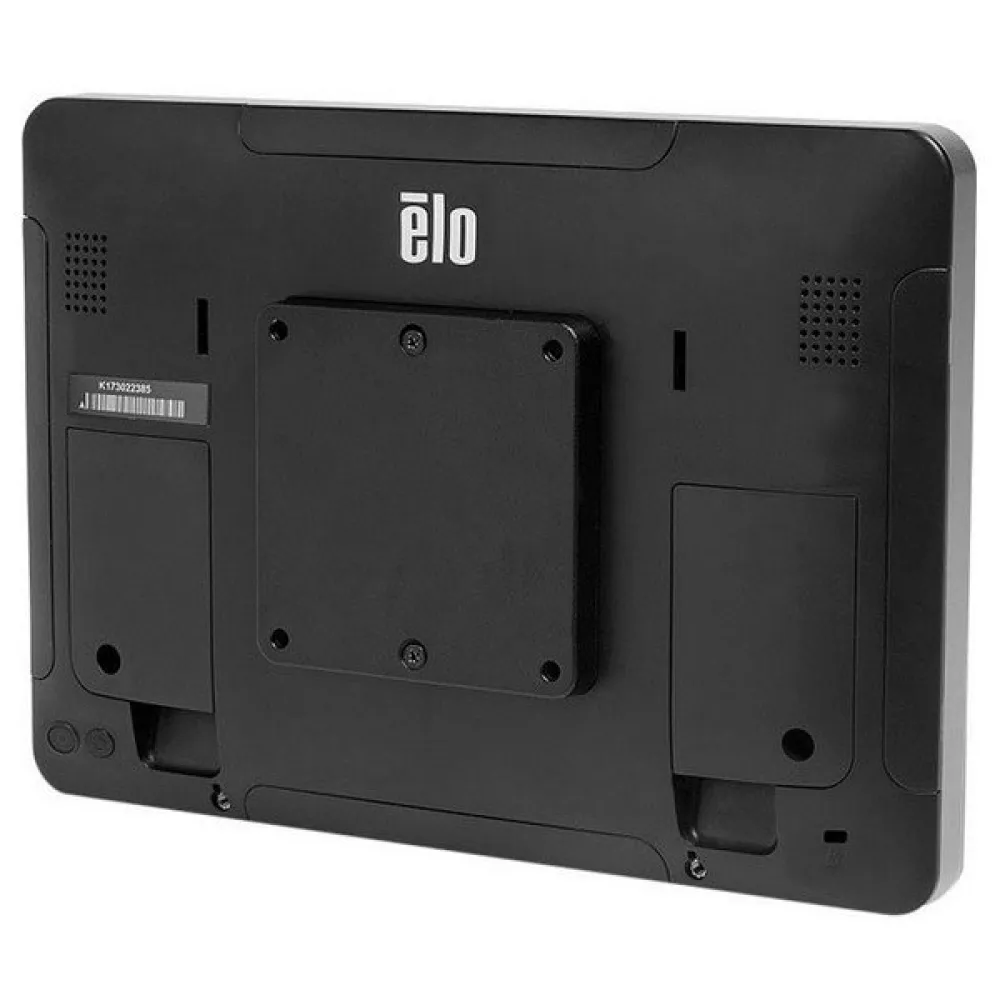

- Mounting Options:Adding a spacer bracket will allow 100 mm x 100 mm VESA mounting.

For more information about mounting, please review the User Manual and Quick Install Guide.

- Weight (Unpackaged):0.35 lbs / 0.16 kg.

- Weight (Packaged):0.70 lbs / 0.32 kg.

- Operating Temperature:0°C to 40°C (32°F to 104°F).

- Storage Temperature:-20°C to 50°C (-4°F to 122°F) Humidity:- Operating:20% to 80%.

Storage:5% to 95% Regulatory approvals and declarations:- POE Module only:UL/cUL (US), IC (Canada), CE (Europe), CB (International), VCCI (Japan), RCM (Australia), KCC (Korea).

- Tested with I-Series 2.0 for Android.

- FCC (US), China RoHS (China In the Box:- POE Device.

- Quick Install Guide.

- 2x M3 x 16mm screws.

- 4x M4 x 18mm flat head screws.

- 4x M4 x 18mm pan head screws.

- 1x POE Spacer.
